Steinel Passive Infrared PIR Sensor, 10 m Sensor Range

View all PIR Sensors
Bulk discount available

Subtotal (1 unit)*

PHP3,953.10

(exc. VAT)

PHP4,427.47

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 4PHP3,953.10
5 +PHP3,834.50

*price indicative

RS Stock No.:
851-2750
Mfr. Part No.:
600310
Manufacturer:
Steinel
Find similar products by selecting one or more attributes.
Select all

Brand

Steinel

Detector Type

Passive Infrared

Product Type

PIR Sensor

Sensor Radius

10m

Depth

120mm

Width

80 mm

Mount Type

Ceiling, Wall

Colour

White

Height

50mm

Series

IS 1

Supply Voltage

240 V ac

IP Rating

IP54

Standards/Approvals

No

COO (Country of Origin):
RO

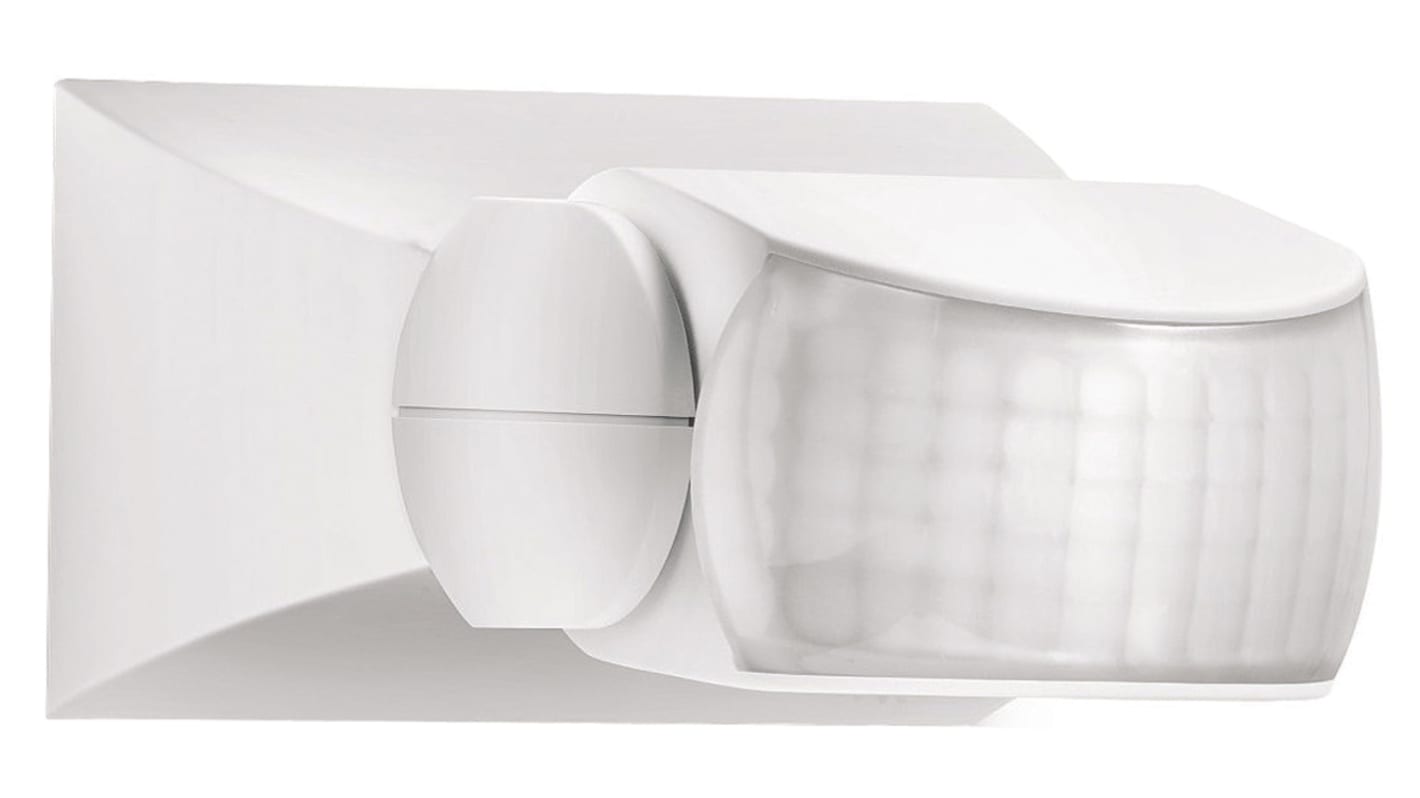

IS1 Infrared Motion Sensor Wall or Ceiling Mounting


The Steinel IS 1 Infrared motion detector uses intelligent sensor technology and responds to movements and light levels, switching the light on and off automatically after a preselected time. The motion sensor has a detection zone of 120° and can be matched to specific needs thanks to its lens which swivel 30° and tilt 180°. The detection zone of this infrared sensor can also be limited as required by using the shrouds provided. Time and twilight threshold of the motion detector can be adjusted using the easily accessible control dial. The infrared motion sensor can be wall or ceiling mounted and is ideal for outdoors and indoors applications for targeted detection of movement in small areas.

Infrared motion detector

Movement triggers lights, alarms and many other devices

Passive infrared sensor type

Suited for outdoor and indoor use

Wall or ceiling mountable

500W max output

120° detection angle

30° horizontal swivelling

180° vertical swivelling

Detection can be masked using the shrouds provided

2 to 2000 lx brightness response

Time settings from 8 seconds to 35 minutes

IP54 rated

Protection class II

Motion Detectors


More detailed technical information is available from our web site.
