Same Sky 80 dB Through Hole Buzzer Internal Magnetic Buzzer 5 mm 4 V dc Min 7 V dc Max

RS Stock No.:: 259-6336
Mfr. Part No.:: CX-0905C
Manufacturer:: Same Sky

Same Sky 80 dB Through Hole Buzzer Internal Magnetic Buzzer 5 mm 4 V dc Min 7 V dc Max

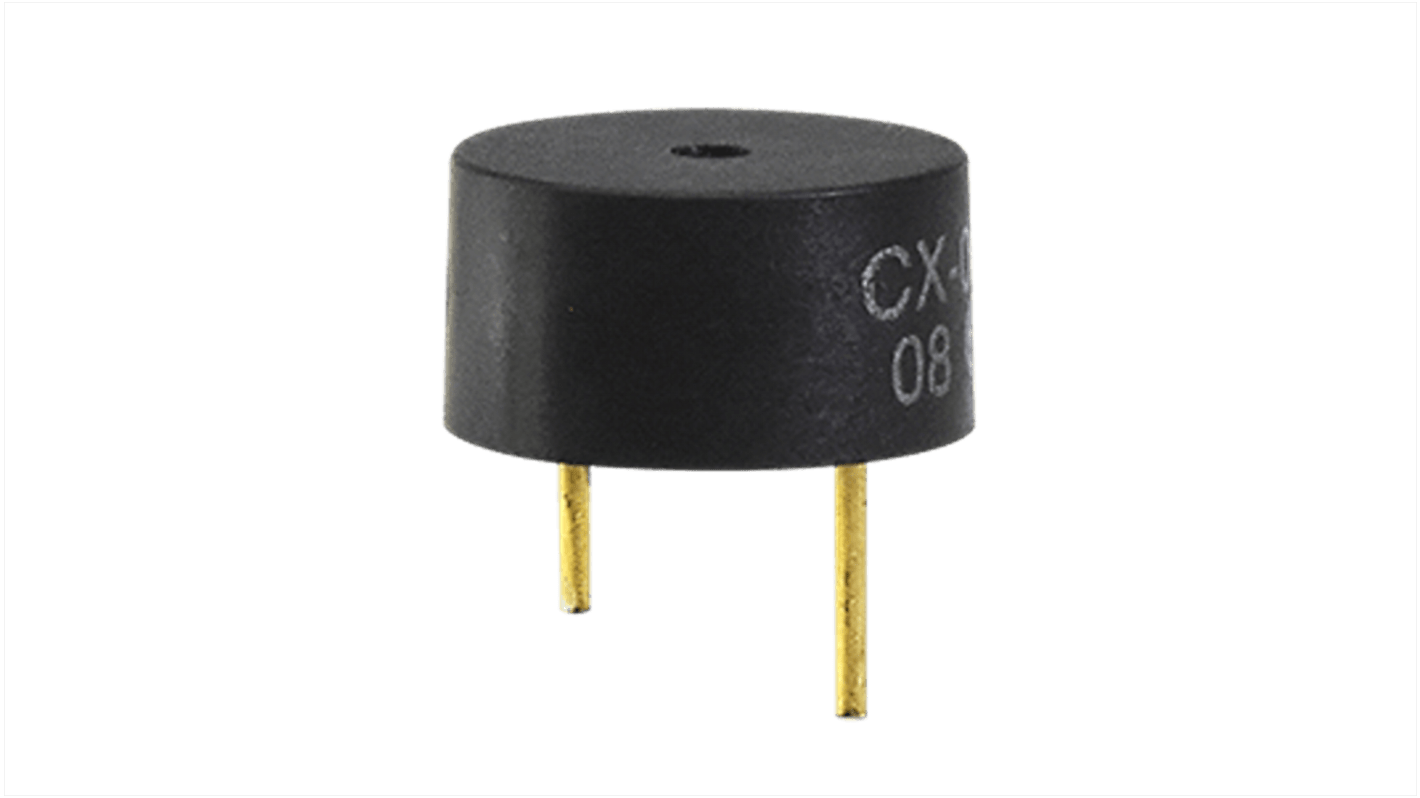

This image is representative of the product range

Unavailable

RS will no longer stock this product.

RS Stock No.:: 259-6336
Mfr. Part No.:: CX-0905C
Manufacturer:: Same Sky

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Same Sky
	Mount Type	Through Hole
	Product Type	Magnetic Buzzer
	Minimum Supply Voltage	4V dc
	Maximum Supply Voltage	7V dc
	Sound Level	80dB
	Drive Type	Internal
	Tone Type	Buzzer
	Maximum Operating Temperature	70°C
	Height	5mm
	Standards/Approvals	RoHS
	Maximum Frequency	3030Hz
	Minimum Frequency	2430Hz

	Select all
	Brand Same Sky
	Mount Type Through Hole
	Product Type Magnetic Buzzer
	Minimum Supply Voltage 4V dc
	Maximum Supply Voltage 7V dc
	Sound Level 80dB
	Drive Type Internal
	Tone Type Buzzer
	Maximum Operating Temperature 70°C
	Height 5mm
	Standards/Approvals RoHS
	Maximum Frequency 3030Hz
	Minimum Frequency 2430Hz

Datasheet - CX-0905C

COO (Country of Origin):: CN

The CUI devices piezo buzzers offers an audio transducer with a mounting type of through hole and having a sound pressure level of 80 dB. It consist of a voltage rating of 5 V and an external drive type.

Storage temperature of -40°C - 85°C

Made up of PBT material

Same Sky 80 dB Through Hole Buzzer Internal Magnetic Buzzer 5 mm 4 V dc Min 7 V dc Max
