Same Sky 91 dB Through Hole Buzzer External Magnetic Buzzer 8.5 mm 3.5 V dc Min 12 mm 8.5 mm 5 V dc Max
- RS Stock No.:
- 259-6246
- Mfr. Part No.:
- CMT-1285C-035
- Manufacturer:
- Same Sky

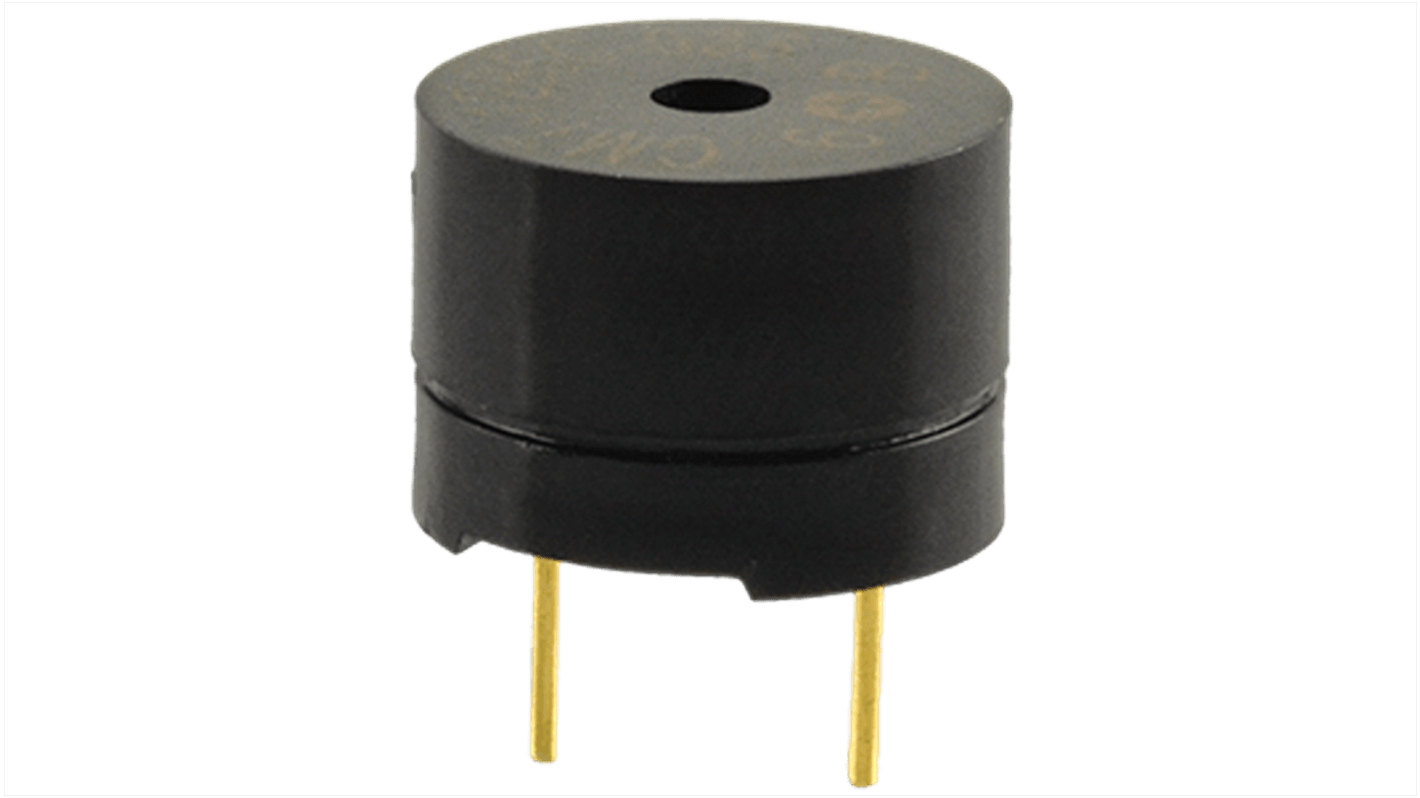

This image is representative of the product range
Bulk discount available
Subtotal (1 tray of 100 units)*
PHP3,072.00
(exc. VAT)
PHP3,441.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Tray* |
|---|---|---|
| 100 - 100 | PHP30.72 | PHP3,072.00 |
| 200 - 200 | PHP29.183 | PHP2,918.30 |
| 300 + | PHP27.723 | PHP2,772.30 |
*price indicative
- RS Stock No.:
- 259-6246
- Mfr. Part No.:
- CMT-1285C-035
- Manufacturer:
- Same Sky
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Same Sky | |
| Mount Type | Through Hole | |
| Product Type | Magnetic Buzzer | |
| Minimum Supply Voltage | 3.5V dc | |
| Maximum Supply Voltage | 5V dc | |
| Sound Level | 91dB | |
| Drive Type | External | |
| Tone Type | Buzzer | |
| Maximum Operating Temperature | 60°C | |
| Length | 12mm | |
| Height | 8.5mm | |
| Standards/Approvals | RoHS | |
| Maximum Frequency | 2048Hz | |
| Minimum Frequency | 2.048kHz | |
| Select all | ||
|---|---|---|
Brand Same Sky | ||
Mount Type Through Hole | ||
Product Type Magnetic Buzzer | ||
Minimum Supply Voltage 3.5V dc | ||
Maximum Supply Voltage 5V dc | ||
Sound Level 91dB | ||
Drive Type External | ||
Tone Type Buzzer | ||
Maximum Operating Temperature 60°C | ||
Length 12mm | ||
Height 8.5mm | ||
Standards/Approvals RoHS | ||
Maximum Frequency 2048Hz | ||
Minimum Frequency 2.048kHz | ||
- COO (Country of Origin):
- CN
The CUI devices piezo buzzers with a mounting type of surface mount and having a sound pressure level of 85 dB. It consist of a voltage rating of 3.5 V and an external drive type.
Storage temperature of -30°C - 70°C
Made up of PPO material
