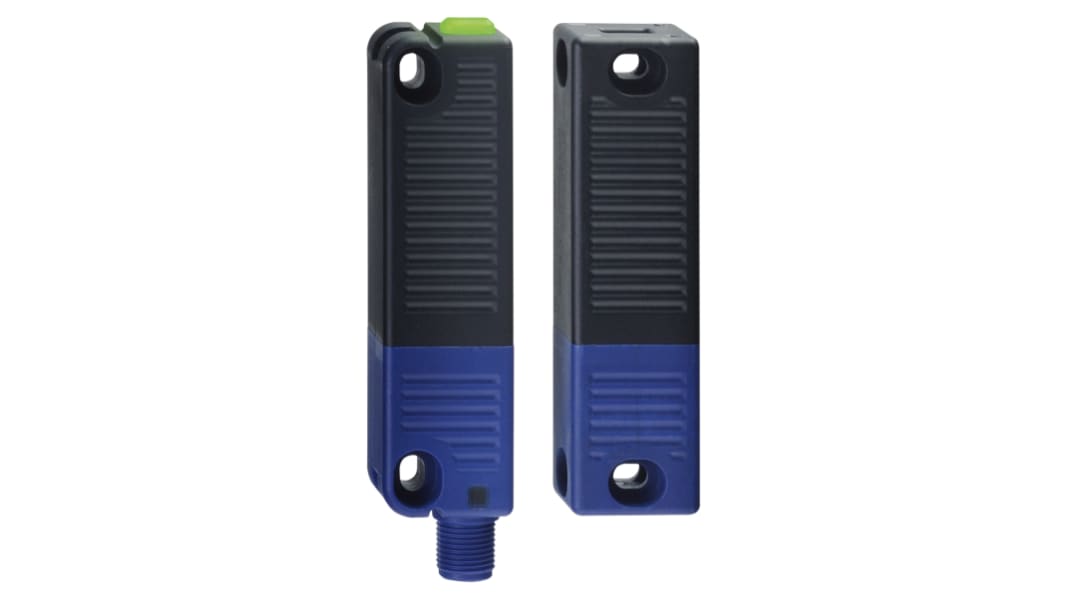

Schmersal RSS 36 Series RFID Safety Switch, 20.4 → 26.4V dc, Reinforced Thermoplastic Housing, M12

The RSS36 electronic safety sensor with unique diagnosis meets the highest safety requirements, even when series-wired. It also features new coding functions for the uniform allocation of the actuator to the sensor, this is realised through the integrated RFID technology. The RSS36 has three different coding variants to enable an optimal conformation to the required protection against tampering. The universal mounting features and the optional latching function provides a smooth and rational integration in separating safety guards.

Thermoplastic enclosure
Misaligned actuation possible
Dimensions: 27 x 108.2 x 35 mm
High repeat accuracy of the switching points
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Increased protection against tampering by optional individual coding of safety sensor and actuator
Safety and diagnostic signals can be wired in series
LED status indication
Sensor with connecting cable or with integrated connector
Robust due to the used cleaning agent-resistant materials and protection class up to IP69K

Actuators must be ordered separately.
Stock no. 880-1769 comes with a latching magnet.
Stock no. 880-1763 comes without a latching magnet.

TUV, cULus, ECOLAB.

EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 62061.

This non-contact safety switch from Schmersal is an essential device for monitoring doors, gates and machine guards. It uses RFID (radio-frequency identification) to sense the position of a uniquely coded actuator then make two short-circuit-proof PNP (positive negative positive) electrical connections. It has a switching distance of ON at 10mm and OFF at 16mm and you can use it with voltages of 20.4 to 26.4V DC and currents of up to 600mA. The device offers three coding variants to deliver effective protection against tampering.

• Glass fibre reinforced thermoplastic housing material is self-extinguishing in the event of fire
• IP65, 67 and 69K (ingress protection) ratings make it suitable for use in a wide range of harsh environments
• Safety and diagnostic signals can be wired in series to control multiple units simultaneously
• 8-pin M12 connector for a fast and secure connection

• Machine access panels
• Assembly lines
• Security systems

RFID (radio frequency identification) locks use a unique radio frequency code that lets the switch and actuator communicate. Without this code, the switch can't be triggered.
