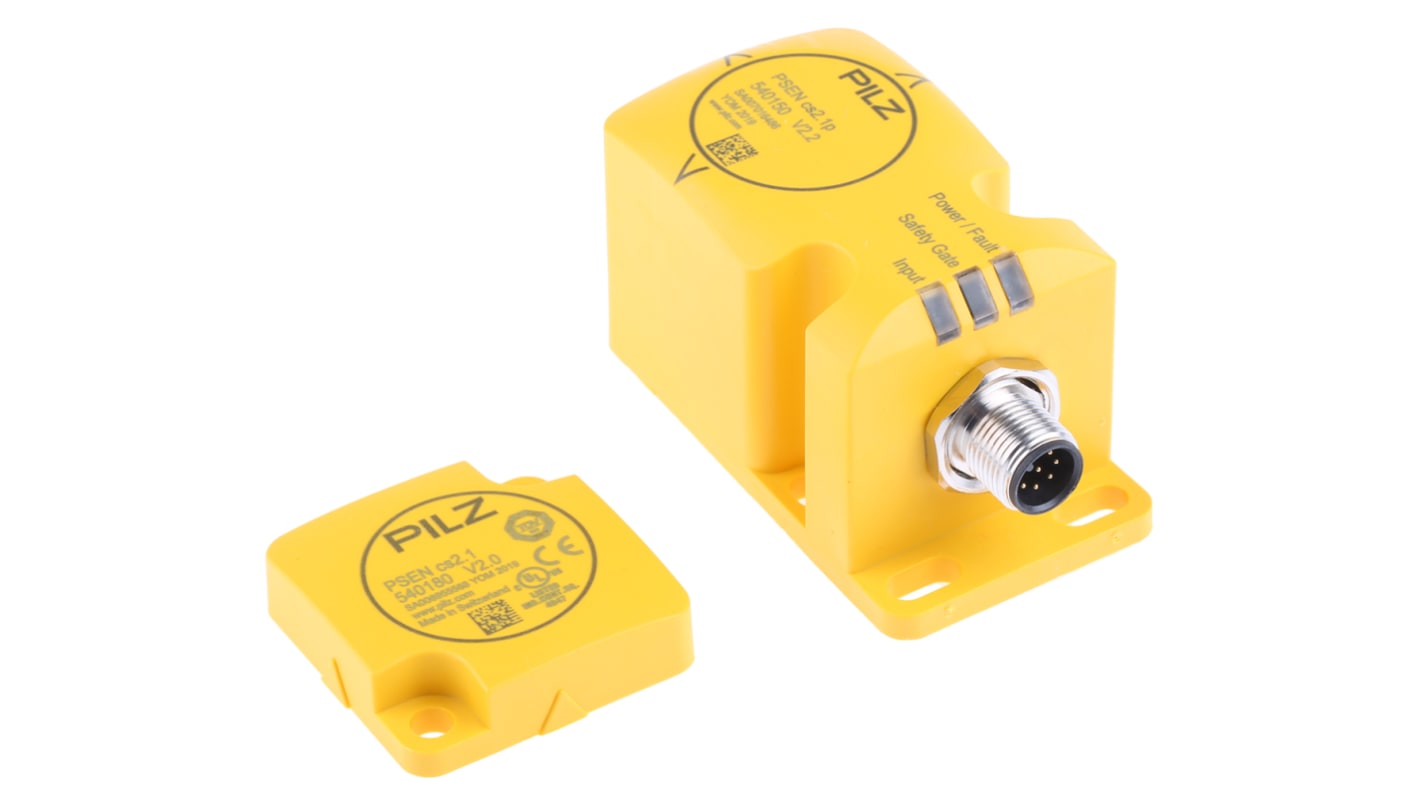

Pilz PSENmag Series Transponder Non-Contact Safety Switch, 24V dc, Plastic Housing, M12
- RS Stock No.:
- 619-2773
- Mfr. Part No.:
- 540100
- Manufacturer:
- Pilz
4 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
1 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP16,508.90
(exc. VAT)
PHP18,489.97
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP16,508.90 |
- RS Stock No.:
- 619-2773
- Mfr. Part No.:
- 540100
- Manufacturer:
- Pilz
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CH
Product Details
Pilz Non-contact Switch
The Pilz PSENcode series non-contact safety switch has an assured switching distance of 15mm. It has 2OSSD RFIDsafety outputs. It is coded and the only switch with an actuator from the PSEN cs3.1 series.
Supplied with:
Actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENcode), an actuator (PSENcode) and a safety-monitoring module (PNOZ X or PNOZmulti) is used.
Note:
When the safety gate is closed the switch provides 2 N/C semiconductor outputs.
Supplied with:
Actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENcode), an actuator (PSENcode) and a safety-monitoring module (PNOZ X or PNOZmulti) is used.
Note:
When the safety gate is closed the switch provides 2 N/C semiconductor outputs.
Features and Benefits
Input The supply voltage is 24VDC
4 directions of actuation
Fully coded
Series connection -You can connect more than 10 safety switches in a sequence to Cat 4 of EN954-1
Unique assignment of the switch and its actuator Five directions of actuation
Connection type is M12, 8-pin male
Housing material is plastic
Operating temperature ranges between -25°C and 70°C
4 directions of actuation
Fully coded
Series connection -You can connect more than 10 safety switches in a sequence to Cat 4 of EN954-1
Unique assignment of the switch and its actuator Five directions of actuation
Connection type is M12, 8-pin male
Housing material is plastic
Operating temperature ranges between -25°C and 70°C
Applications
Industrial environment
Certifications
IP67 rated
EN 60947-5-3
EN 62061 SIL CL 3
EN ISO 13849-1
PLe Cat. 4
EN ISO14119
CE certified
UL approved
TÜV certified
BG certified
CCC certified
FCC certified
IC certified
EN 60947-5-3
EN 62061 SIL CL 3
EN ISO 13849-1
PLe Cat. 4
EN ISO14119
CE certified
UL approved
TÜV certified
BG certified
CCC certified
FCC certified
IC certified
Approvals
BG, cUL, CCC
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24V dc |
| Housing Material | Plastic |
| Connection Type | M12 |
| Actuator Type | Coded |
| Sensor Principle | Transponder |
| Safety Category | 4 |
| Actuator Included | Yes |
| Switching Distance | 15 mm |
| Series | PSENmag |
| IP Rating | IP67 |
| Width | 40mm |
| Number of Approach Directions | 5 |
| Depth | 40mm |
| Length | 75mm |
