Chauvin Arnoux Multifunction Tester 1200V With Bluetooth, Ethernet, RS232

View all Multifunction Testers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
231-1480
Mfr. Part No.:
P01145851
Manufacturer:
Chauvin Arnoux
Find similar products by selecting one or more attributes.
Select all

Brand

Chauvin Arnoux

Product Type

Multifunction Tester

Insulation Test Voltage

1200V

Test Type

Auto Test

Interface Type

Bluetooth, Ethernet, RS232

Height

292mm

Weight

17kg

Standards/Approvals

CE, IEC 61010-031, IEC 61010-2-030, IEC 61326-1, IEC 61557

Width

435mm

Length

150mm

Remote Switch Mode

Yes

Test Standards

IEC 61326-1, VDE 0701-702

IP Rating

IP54

Display Type

LCD, TFT

Maximum Continuity Resistance

9Ω

Minimum Continuity Resistance

0.01Ω

Maximum Operating Temperature

40°C

Minimum Operating Temperature

0°C

Safety Category Level

CAT III

Safety Category Voltage

300V

Power Source

Mains

COO (Country of Origin):
SI

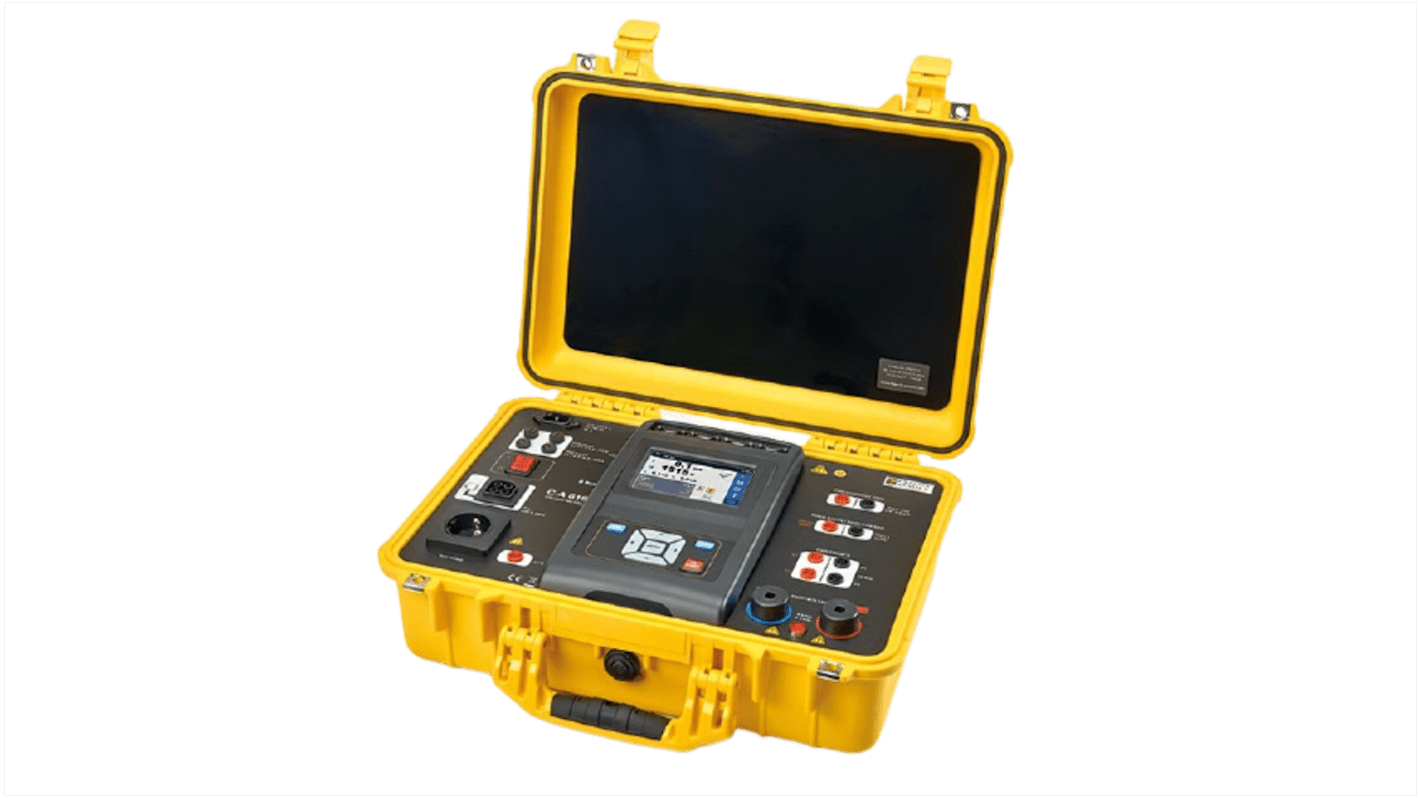

The Chauvin Arnoux CA 6165 multifunction electrical equipment tester can be used to carry out all measurements to test the electrical safety of portable electrical equipment, machines and switchboards. It is therefore perfectly suited to the control and certification of the electrical safety of equipment as part of the conformity check at the end of the production line, periodical checking or maintenance. It has RS232 interfaces, two DB9 ports, USB 2.0, standard USB Type B, Bluetooth and Ethernet.

It has colour capacitive touchscreen

Possible to store tests on memory card up to 32 Gb
