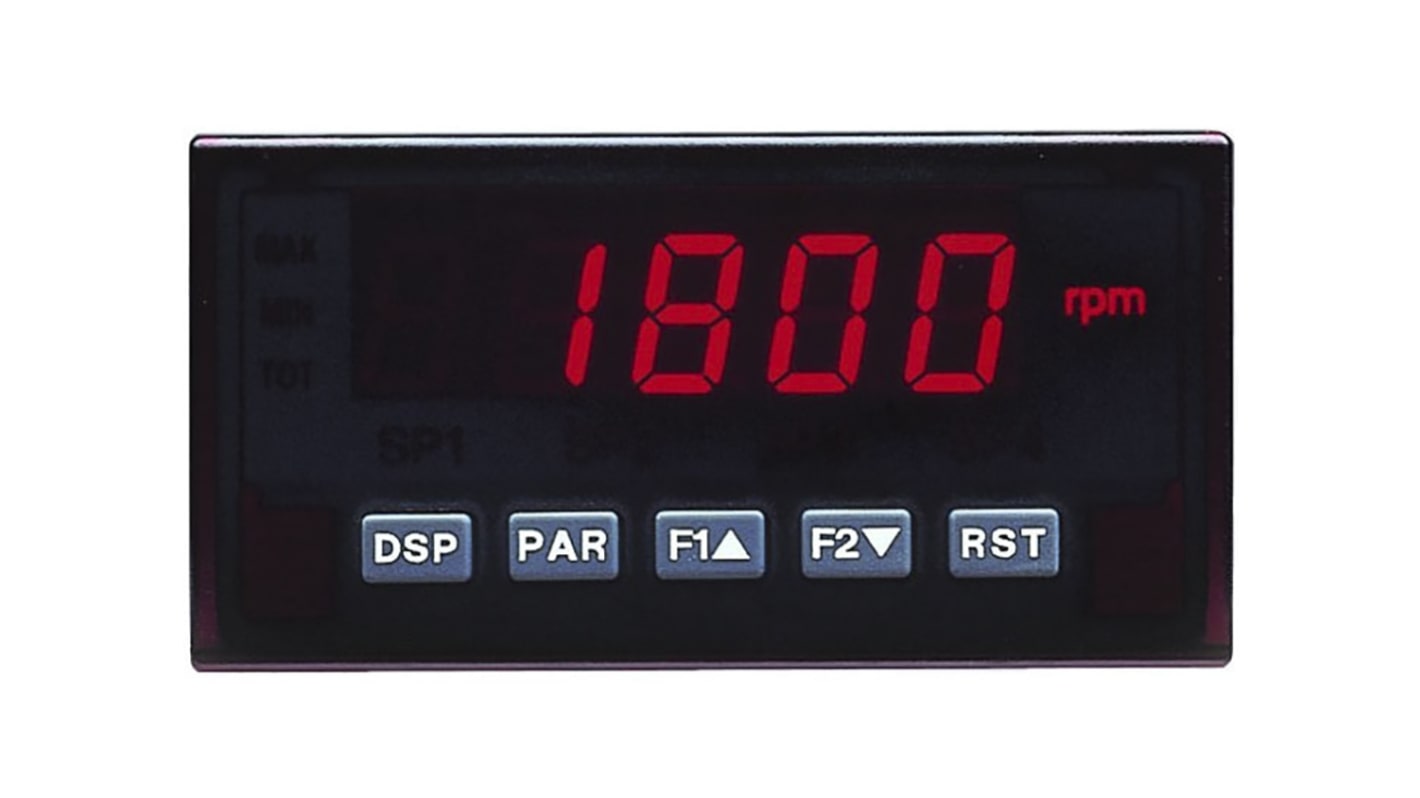

    Red Lion DSP5D LED Digital Panel Multi-Function Meter, 45mm x 92mm

    Red Lion
    RS Stock No.:
    905-5529
    Mfr. Part No.:
    DP5D0010
    Manufacturer:
    Red Lion
    View this category
    Discontinued product

    Alternatives

    This product is not currently available. Here are our alternative recommendations.

    presentation
    RS Stock No.
    905-5523

    Price Each

    PHP20,821.25

    (exc. VAT)

    PHP23,319.80

    (inc. VAT)

    presentation
    RS Stock No.
    905-5526

    Price Each

    PHP22,170.93

    (exc. VAT)

    PHP24,831.44

    (inc. VAT)

    presentation
    RS Stock No.
    327-5819

    Price Each

    PHP28,738.93

    (exc. VAT)

    PHP32,187.60

    (inc. VAT)

    RS Stock No.:
    905-5529
    Mfr. Part No.:
    DP5D0010
    Manufacturer:
    Red Lion

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    US

    Product Details

    DP5 Analogue Input Multifunction Meter


    The DP5 panel meter offers many features and performance capabilites to suit a wide range of industrial applications. These meters are available in three different models to handle various analogue inputs, including DC Voltage/Current, Process and Temperature inputs.

    DC Voltage/current input (905-5526 & 905-5529)
    Process input (905-5523)
    5-digit (14.2 mm) LED display
    Programmable function keys/user input
    9-digit (integrator) with batching
    Optional custom units overlay with backlight
    NEMA 4X/IP65 sealed front bezel


    Red Lion

    Specifications

    AttributeValue
    Properties MeasuredCurrent, Process, Temperature, Voltage
    Display TypeLED
    Cutout Height45mm
    Cutout Width92mm
    Depth104.1mm
    Number of Digits5
    Digit Height14.2 mm
    Minimum Temperature+50°C
    Maximum Temperature0°C
    Measurement Range-19999 → 99999
    Minimum Measurement-19999
    SeriesDSP5D
    Meter TypeElectronic
    ApprovalsCB Scheme Test Report #04ME11209-20041018, DP5T, IEC 529, IEC/EN 61010-1, IECEE CB Scheme Test Certificate #US/8843A/UL, IP20, IP65, No. 61010-1, Recognized to U.S. and Canadian Requirements Under the Component, Type 4X, UL, UL 50
