Vishay SQ Rugged N-Channel TrenchFET Power MOSFET, 6 A, 20 V Enhancement, 3-Pin SOT-23 SQ2310ES-T1_BE3

RS Stock No.:: 787-9443P
Mfr. Part No.:: SQ2310ES-T1_BE3
Manufacturer:: Vishay

Vishay SQ Rugged N-Channel TrenchFET Power MOSFET, 6 A, 20 V Enhancement, 3-Pin SOT-23 SQ2310ES-T1_BE3

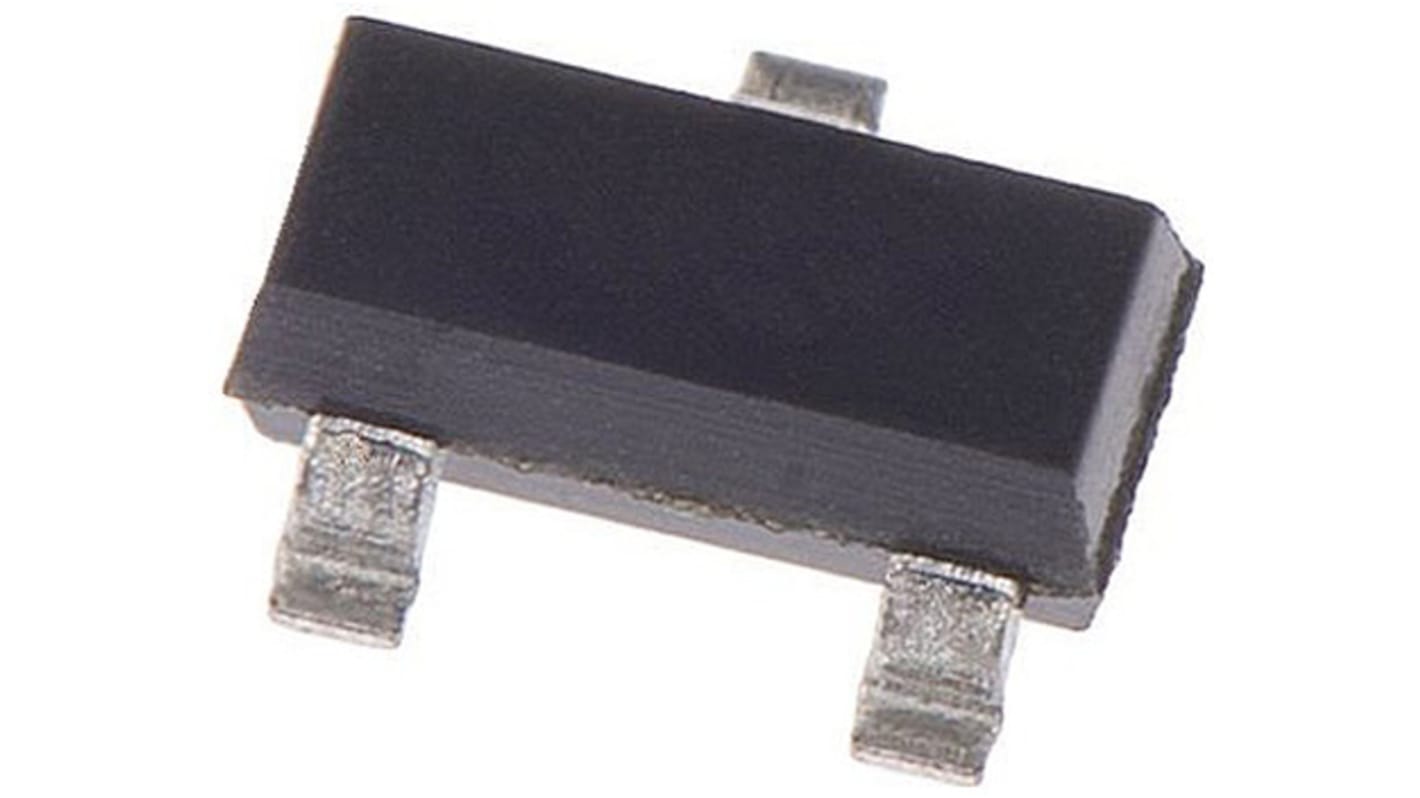

This image is representative of the product range

Bulk discount available

View bulk pricing options

Subtotal 20 units (supplied on a continuous strip)*

PHP1,011.52

(exc. VAT)

PHP1,132.90

(inc. VAT)

FREE delivery for orders over ₱5,000.00

Being discontinued

Final 560 unit(s), ready to ship from another location

Units	Per Unit
20 - 40	PHP50.576
50 - 90	PHP49.06
100 - 190	PHP47.589
200 +	PHP46.161

*price indicative

RS Stock No.:: 787-9443P
Mfr. Part No.:: SQ2310ES-T1_BE3
Manufacturer:: Vishay

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Channel Type	N
	Product Type	TrenchFET Power MOSFET
	Maximum Continuous Drain Current Id	6A
	Maximum Drain Source Voltage Vds	20V
	Series	SQ Rugged
	Package Type	SOT-23
	Mount Type	Surface
	Pin Count	3
	Maximum Drain Source Resistance Rds	0.03Ω
	Channel Mode	Enhancement
	Forward Voltage Vf	1.2V
	Maximum Power Dissipation Pd	2W
	Typical Gate Charge Qg @ Vgs	8.5nC
	Maximum Gate Source Voltage Vgs	8V
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	175°C
	Standards/Approvals	IEC 61249-2-21, RoHS: 2002/95/EC
	Height	1.02mm
	Length	3.04mm
	Width	1.4mm
	Automotive Standard	AEC-Q101

	Select all
	Brand Vishay
	Channel Type N
	Product Type TrenchFET Power MOSFET
	Maximum Continuous Drain Current Id 6A
	Maximum Drain Source Voltage Vds 20V
	Series SQ Rugged
	Package Type SOT-23
	Mount Type Surface
	Pin Count 3
	Maximum Drain Source Resistance Rds 0.03Ω
	Channel Mode Enhancement
	Forward Voltage Vf 1.2V
	Maximum Power Dissipation Pd 2W
	Typical Gate Charge Qg @ Vgs 8.5nC
	Maximum Gate Source Voltage Vgs 8V
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 175°C
	Standards/Approvals IEC 61249-2-21, RoHS: 2002/95/EC
	Height 1.02mm
	Length 3.04mm
	Width 1.4mm
	Automotive Standard AEC-Q101

N-Channel MOSFET, Automotive SQ Rugged Series, Vishay Semiconductor

The SQ series of MOSFETs from Vishay Semiconductor are designed for all automotive applications requiring ruggedness and high reliability.

Advantages of SQ Rugged Series MOSFETs

• AEC-Q101 qualified

• Junction temperature up to +175°C

• Low on-resistance n- and p-channel TrenchFET® technologies

• Innovative space-saving package options

MOSFET Transistors, Vishay Semiconductor

Approvals

AEC-Q101
