Vishay SQD50034EL Type N-Channel MOSFET, 100 A, 60 V Enhancement, 3-Pin TO-252
- RS Stock No.:
- 200-6788
- Mfr. Part No.:
- SQD50034EL_GE3
- Manufacturer:
- Vishay

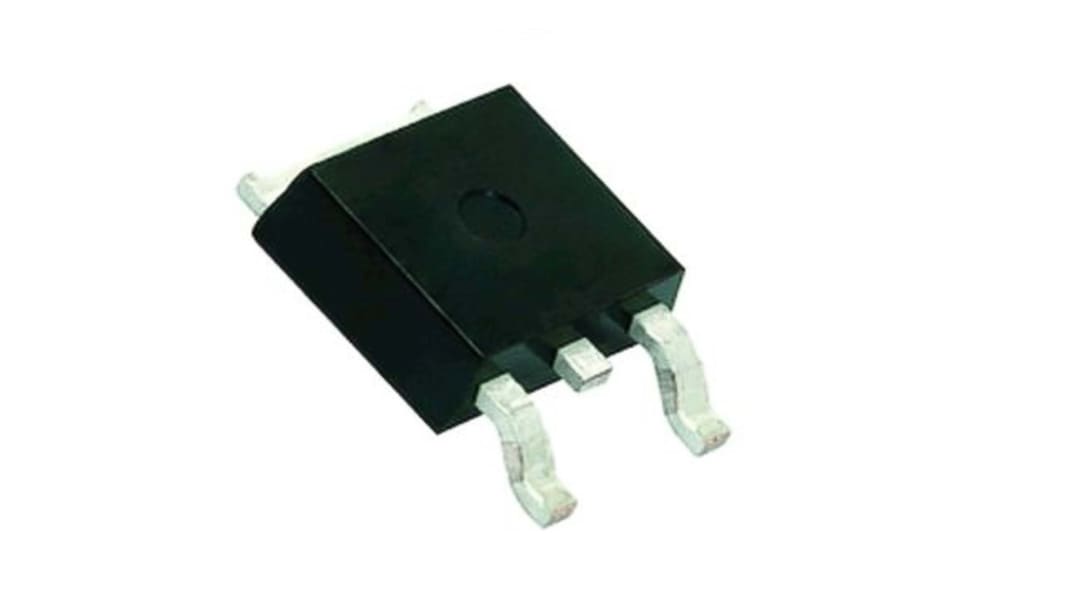

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 25 units)*
PHP2,536.275
(exc. VAT)
PHP2,840.625
(inc. VAT)
FREE delivery for orders over ₱3,000.00
Temporarily out of stock
- Shipping from July 24, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 25 - 75 | PHP101.451 | PHP2,536.28 |
| 100 - 225 | PHP98.408 | PHP2,460.20 |
| 250 - 475 | PHP95.455 | PHP2,386.38 |
| 500 - 975 | PHP92.591 | PHP2,314.78 |
| 1000 + | PHP89.814 | PHP2,245.35 |
*price indicative
- RS Stock No.:
- 200-6788
- Mfr. Part No.:
- SQD50034EL_GE3
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 100A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TO-252 | |
| Series | SQD50034EL | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 5.2mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 107W | |
| Forward Voltage Vf | 1.5V | |
| Typical Gate Charge Qg @ Vgs | 90nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Width | 2.38 mm | |
| Standards/Approvals | No | |
| Height | 6.22mm | |
| Length | 6.73mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 100A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TO-252 | ||
Series SQD50034EL | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 5.2mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 107W | ||
Forward Voltage Vf 1.5V | ||
Typical Gate Charge Qg @ Vgs 90nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Width 2.38 mm | ||
Standards/Approvals No | ||
Height 6.22mm | ||
Length 6.73mm | ||
Automotive Standard AEC-Q101 | ||
The Vishay SQD50034EL_GE3 is a automotive N-channel 60V (D-S) 175°C MOSFET.
TrenchFET power MOSFET
Package with low thermal resistance
100 % Rg and UIS tested
AEC-Q101 qualified
