Festo FR-4 series 3 station G Manifold for use with Additional Reservoir For Timers, Mounting Frames, 6704

RS Stock No.:: 175-2185
Mfr. Part No.:: FR-4-1/2-B
Manufacturer:: Festo

Festo FR-4 series 3 station G Manifold for use with Additional Reservoir For Timers, Mounting Frames, 6704

Subtotal (1 unit)*

PHP2,391.10

(exc. VAT)

PHP2,678.03

(inc. VAT)

FREE delivery for orders over ₱3,000.00

In Stock

88 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	PHP2,391.10

*price indicative

RS Stock No.:: 175-2185
Mfr. Part No.:: FR-4-1/2-B
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Number of Stations	3
	Product Type	Manifold
	Connection Thread Standard	G
	Port Size	1/2 in
	Series	FR-4
	Sub Type	Manifold
	Body Material	Aluminium
	Hazardous Area Certification	No
	Port Gender	Female
	Standards/Approvals	ISO 8573-1:2010
	For Use With	Additional Reservoir For Timers, Mounting Frames
	Model Number	6704

	Select all
	Brand Festo
	Number of Stations 3
	Product Type Manifold
	Connection Thread Standard G
	Port Size 1/2 in
	Series FR-4
	Sub Type Manifold
	Body Material Aluminium
	Hazardous Area Certification No
	Port Gender Female
	Standards/Approvals ISO 8573-1:2010
	For Use With Additional Reservoir For Timers, Mounting Frames
	Model Number 6704

RoHS Status: Exempt

COO (Country of Origin):: IN

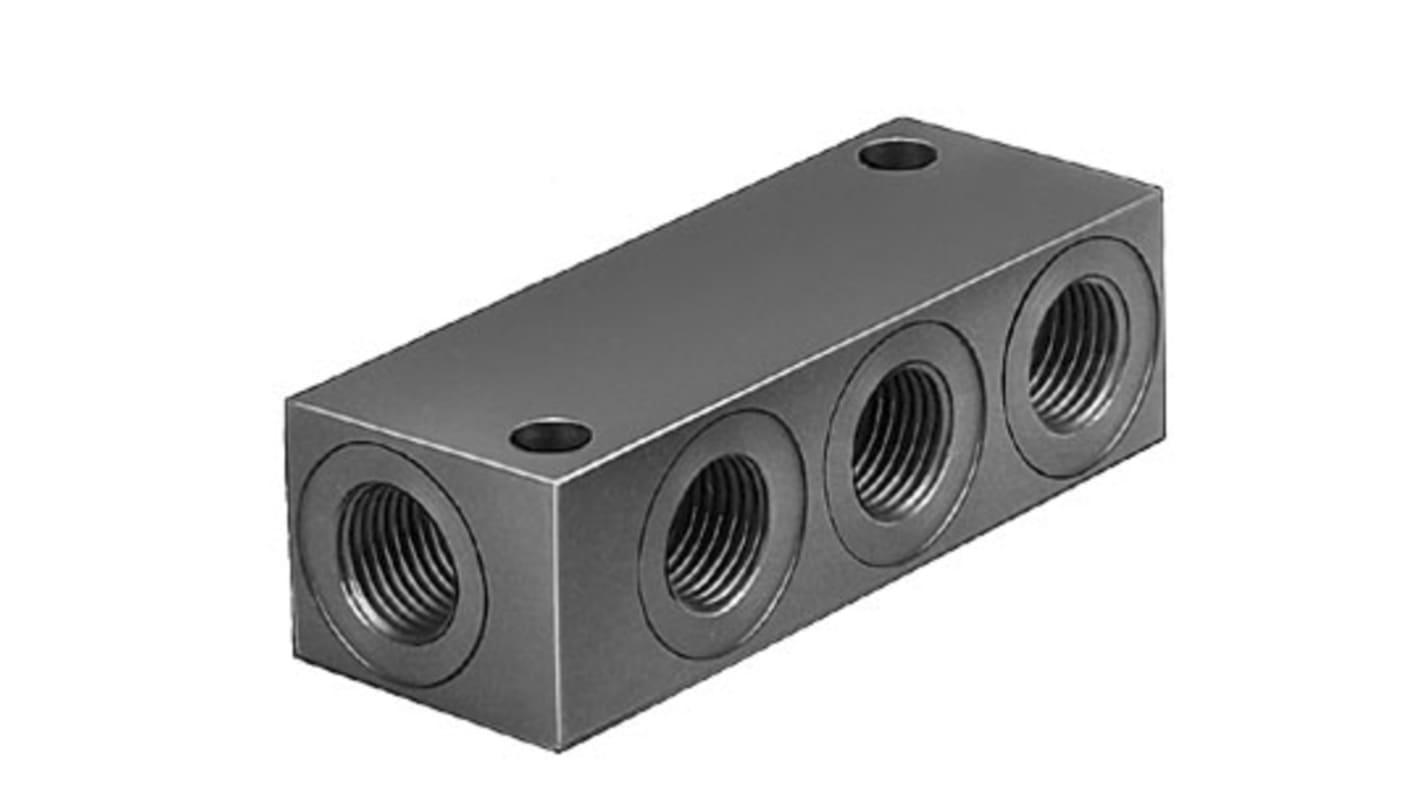

Festo Manifold, Die-Cast Aluminium Housing, G1/2 Thread - FR-4-1/2-B

Thinking of using a trusty link-up point for valves in your pneumatic system? Choose this manifold from Festo. It features three output channels that distribute compressed air from a single supply, allowing you to power multiple devices simultaneously. The component's die-cast aluminium body handles rust and corrosion without making a fuss, so you can count on reliable long-term service, even in harsh environments. Thanks to the standard G1/2 threaded ports, you don't need complex assembly tools to set it up.

Features & Benefits

• Handles operating pressures between 0 and 16 bar, making it a versatile workmate for light-duty and heavy-duty applications

• Light weight of 120g means it's a cinch to handle during assembly

• Safe to use in challenging conditions courtesy of an operating temperature range between -10°C and +80°C

Applications

• Water and sewage treatment plants

• Plastic fabrication industry

• Robotics and automation

What maintenance does this manifold need?

As this unit is made of weatherproof material, it doesn't need a lot of maintenance. Regular cleaning for dust and contaminant removal keeps it in tip-top shape.
