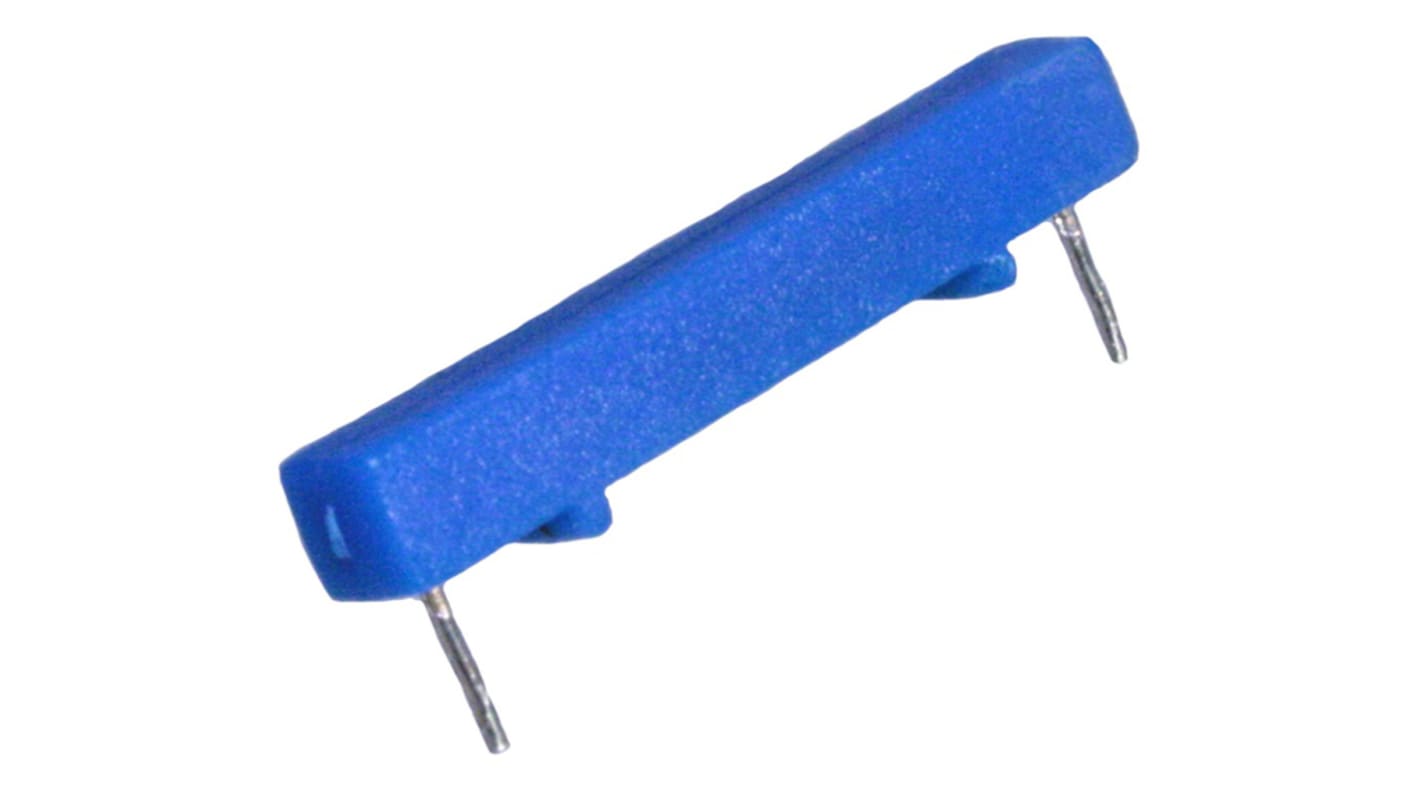

Assemtech Rectangular Reed Switch, NO, 200V, 500mA
- RS Stock No.:
- 866-2596
- Mfr. Part No.:
- PPS O3A
- Manufacturer:
- Assemtech
1 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP168.72
(exc. VAT)
PHP188.97
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP168.72 |
- RS Stock No.:
- 866-2596
- Mfr. Part No.:
- PPS O3A
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Blue Polypropylene Moulded
Assemtech moulded reed switches for PCB, suitable for many different applications such as position and limit sensing, linear actuators, consumer electronics activation and automated production lines.
Available in two versions switching either 130Vac across N/C contacts, or 470Vac across N/O contacts
Operating temperature range -20 to +70°C
Pin pitch 22mm
Contact resistance 150mΩ
Operating temperature range -20 to +70°C
Pin pitch 22mm
Contact resistance 150mΩ
Specifications
Attribute | Value |
|---|---|
| Switch Shape | Rectangular |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO |
| Terminal Type | PCB Pin |
| Maximum Current | 500mA |
| Maximum AC Voltage | 200V |
| Contact Resistance | 120mΩ |
| Length | 25mm |
| Dimensions | 25 x 3.9 x 4.7mm |
| Depth | 4.7mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -25°C |
| Width | 3.9mm |
