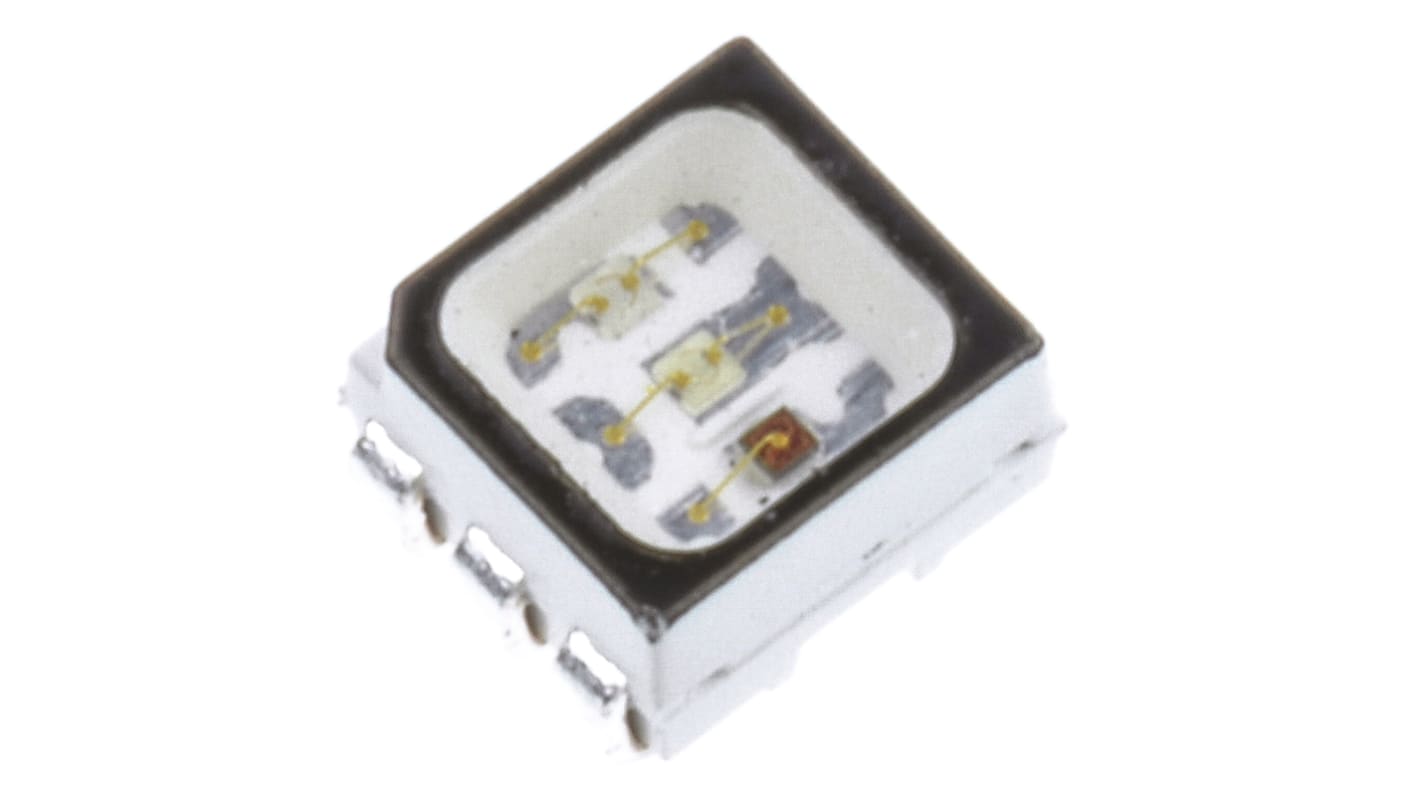

Broadcom ASMT-YTB2-0BB02, 470 / 530 / 622 nm 3 RGB LED, PLCC 6 SMD package

  • RS Stock No. 922-6784
  • Mfr. Part No. ASMT-YTB2-0BB02
  • Manufacturer Broadcom
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Avago ASMT-YTxx Series LEDs

A range of RGB (Red Green Blue) LED emitters, from Avago Technologies, in a PLCC6 surface mount package.

Industry standard PLCC6 package
High reliability
Wide viewing angle
Built in reflector

Visible Light LEDs, Avago Technologies

Specifications
Attribute Value
LED Colours RGB
Package Type PLCC 6
Mounting Type Surface Mount
Number of LEDs 3
Forward Voltage 2.1 V, 3.2 V
Luminous Intensity 1.6 cd
Number of Pins 6
Viewing Angle 120 °
Lens Shape Square
Dominant Wavelength 470 / 530 / 622 nm
Dimensions 3 x 2.8 x 1.8mm
Lens Colour Clear
6000 In Global stock for delivery within 4 - 8 working days
Price Each (On a Reel of 1000)
PHP 40.69
(exc. VAT)
PHP 45.57
(inc. VAT)
units
Per Unit
Per Reel*
1000 - 1000
PHP40.69
PHP40,690.00
2000 - 3000
PHP40.322
PHP40,322.00
4000 - 9000
PHP39.585
PHP39,585.00
10000 - 12000
PHP38.849
PHP38,849.00
13000 +
PHP38.112
PHP38,112.00
*price indicative
