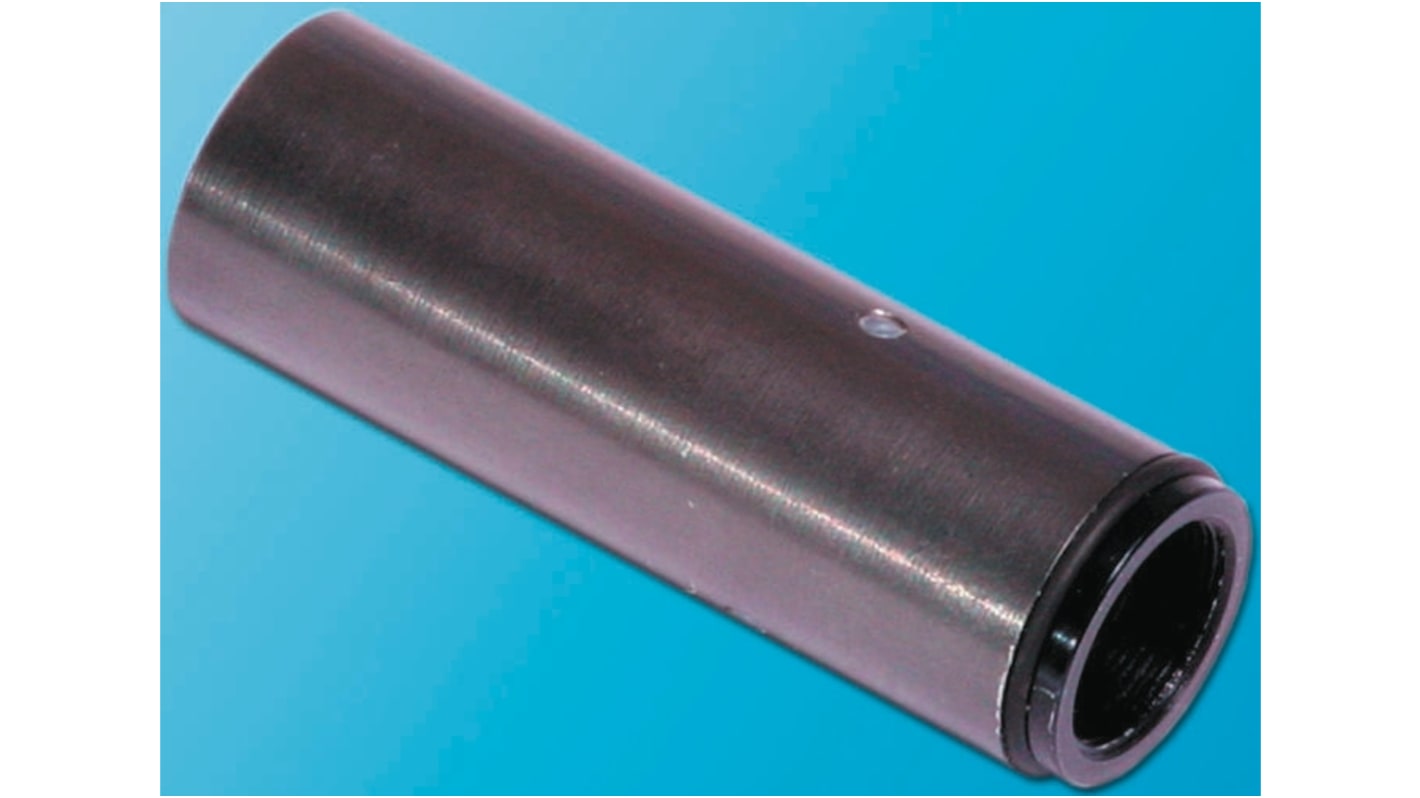

1420-01 Laser Module, 650Nm 20mW, Continuous Wave, Linear control Ellipse pattern +4.75 → +5.25 V

  • RS Stock No. 488-1471
  • Mfr. Part No. 1420-01
  • Manufacturer Global Laser
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

Acculase LC & PWM Red Laser Modules

The Global Laser Acculase range of red laser diode modules offers a variety of output powers and lens options to provide a high level of optical and electrical performance. The lasers are precision set during manufacture to ensure accurate beam alignment with the outer casing of the modules making it quick and easy to get the lasers up-and-running. Two methods of output intensity control are available: LC types use a linear analogue control voltage whilst the PWM types use a digital control input to vary the duty cycle. Typical applications for the Acculase laser modules include graphics displays, alignment systems, medical applications and telemetry.

High efficiency 635 or 650nm red LED laser module
High pointing accuracy < 1mRad
Fitted lens provides circular/elliptical beam
Internal driver circuitry
0 – 1V Linear input control voltage (LC types)
5V TTL PWM input (PWM types)
Electrically isolated case
Reverse polarity protected

Laser Modules, Global Laser

Warning

  • These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.
Specifications
Attribute Value
Laser Type Continuous Wave
Laser Colour Red
Emission Pattern Ellipse
Laser Wavelength 650nm
Optical Output Power 20mW
Control Type Linear
Laser Class 3B
Dimensions 15 (Dia.) x 47.5mm
Application Alignment
Diameter 15mm
Length 47.5mm
Maximum Supply Voltage +5.25V
Minimum Supply Voltage +4.75V
Series Acculase
Supply Voltage Range +4.75 → +5.25 V
