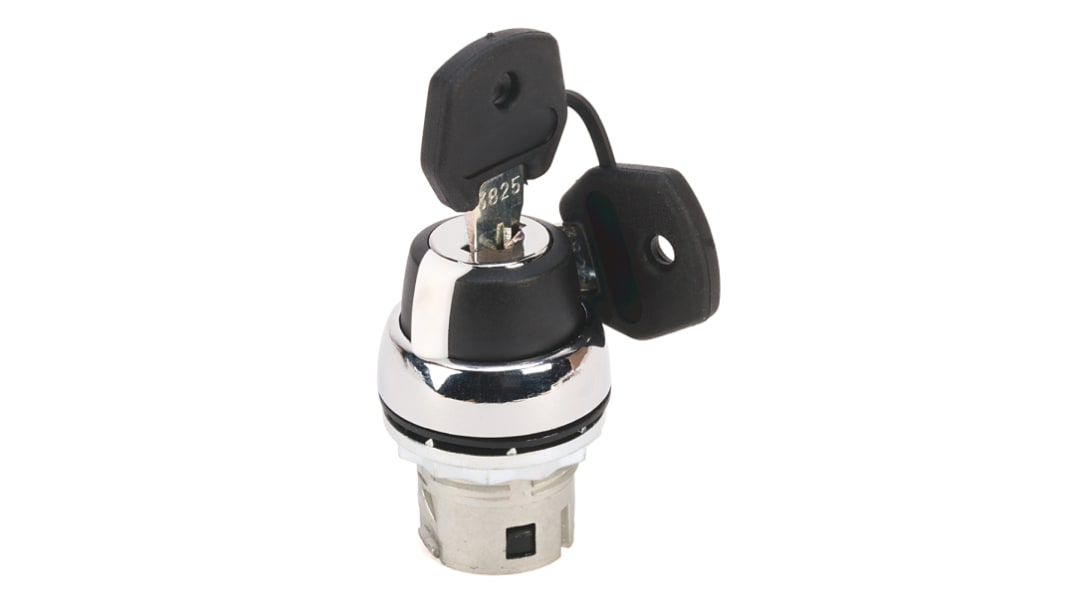

Allen Bradley 800F 2-position Key Switch Head, Latching, 22mm Cutout

View all Key Switch Heads
Bulk discount available

Subtotal (1 unit)*

PHP2,708.72

(exc. VAT)

PHP3,033.77

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 21 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 5PHP2,708.72
6 - 11PHP2,643.71
12 +PHP2,580.25

*price indicative

RS Stock No.:
511-8099
Mfr. Part No.:
800FM-KM21
Manufacturer:
Allen Bradley
Find similar products by selecting one or more attributes.
Select all

Brand

Allen Bradley

Series

800F

Cutout Diameter

22mm

Number of Positions

2

Key Type

Ronis

Switch Actuation

Latching

Key Withdrawal Position

Left

IP Rating

IP66

Angle of Throw

90°

Illuminated

No

Number of Keys

2

RoHS Status: Exempt

COO (Country of Origin):
CN

Key Operated Selector Switches


Integral position indicator
Key removal in one position
Key type is Ronis 3825
60 degree switching angle

Note

Select required contact configuration separately

Allen Bradley Key Switch Head, 2 Positions, 90° Angle Of Throw - 800FM-KM21


Control your industrial device with ease using this 2-position key switch head from Rockwell Automation's Allen Bradley range. As it only works with a key, this component is suitable for applications in need of protection from unauthorised users. Thanks to the latching actuation style, it remains active even after you release it, so there's no need to keep holding it in place. To remove the key, simply turn the device to the left position then pull it out. The black housing features a contrasting white position indicator so you can identify its operating status at a glance.

• Metal body is impact-resistant to withstand demanding conditions
• IP66 rating indicates it's dust-tight and protected against high-pressure jets of water
• Comes with additional key for convenience
• Anodized plating finish offers protection from corrosion for lasting use
• Industry-standard cutout diameter of 22mm for versatile installation

Standards and Certifications


• CE
• CSA
• CCC
• UL

What type of applications need a key switch head like this one?


Thanks to its 2-position design, this key switch head is suitable for applications that need to be opened/closed or turned on/off, such as fire and security alarm panels.


800F Series Pushbuttons & Indicators


The 800F range of Push Buttons is designed and manufactured to meet demanding performance specifications. Using state-of-the art solid modelling techniques, each component built into 800F Push Buttons is optimized for durability and safe performance.,Designed to conform with the industry standard 22mm hole fixing requirements, the 800F range covers the following products.


Illuminated/non-illuminated push-buttons and mushroom operators
Pilot lights LED operated
Selector, toggle, multi-function and key selector switches (2 and 3 positions)
Custom laser engraving for pushbutton caps and diffusers
Single turn potentiometer assembly
Emergency stop push-buttons including the unique self monitoring contact block
Low front of panel profile
Selection of silicone boots are available
Plastic enclosures
Up to six circuits per operator
Metal operators offer ruggedness and durability
IP66 protection class
Meets CE/UL/CSA standards and CCC (Chinese standard) compliant
Finished with corrosion-resistant anodized plating
Single person panel installation
Easy to install operators provide significant time and cost savings


• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
