Vishay TSOP39438TR1, 38 kHz IR Receiver, 30 m Range 2.5 V 5.5 V, Surface 2.6 mm 4-Pin 6.8 mm
- RS Stock No.:
- 244-4809
- Mfr. Part No.:
- TSOP39438TR1
- Manufacturer:
- Vishay

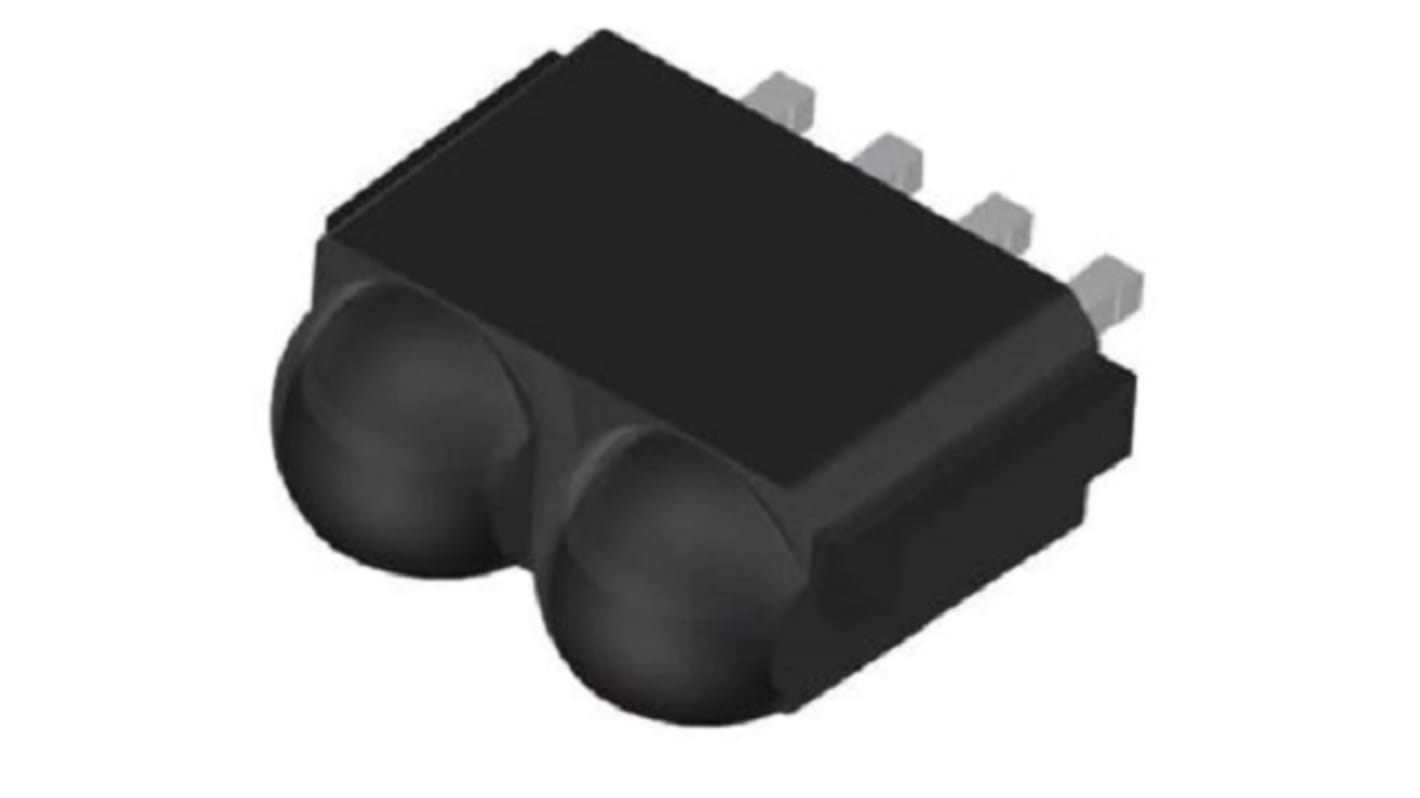

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 244-4809
- Mfr. Part No.:
- TSOP39438TR1
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Carrier Frequency | 38kHz | |
| Product Type | IR Receiver | |
| Maximum Transmission Distance | 30m | |
| Output Current | 5mA | |
| Number of Pins | 4 | |
| Mount Type | Surface | |
| Range Automatic Gain Control AGC | AGC4 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 6.8 mm | |
| Maximum Supply Voltage | 5.5V | |
| Height | 2.6mm | |
| Standards/Approvals | No | |
| Minimum Supply Voltage | 2.5V | |
| Series | TSOP33 | |
| Automotive Standard | No | |
| Supply Current | 3mA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Carrier Frequency 38kHz | ||
Product Type IR Receiver | ||
Maximum Transmission Distance 30m | ||
Output Current 5mA | ||
Number of Pins 4 | ||
Mount Type Surface | ||
Range Automatic Gain Control AGC AGC4 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 85°C | ||
Width 6.8 mm | ||
Maximum Supply Voltage 5.5V | ||
Height 2.6mm | ||
Standards/Approvals No | ||
Minimum Supply Voltage 2.5V | ||
Series TSOP33 | ||
Automotive Standard No | ||
Supply Current 3mA | ||
The Vishay miniaturized IR receiver modules for infrared remote control systems. Two PIN diodes and a preamplifier are assembled on a lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to digital circuitry for decoding. This series is optimized to suppress almost all spurious pulses from energy saving lamps like CFLs.
Low supply current
Photo detector and preamplifier in one package
Internal filter for PCM frequency
Insensitive to supply voltage ripple and noise
Improved immunity against ambient light
Two lenses for high sensitivity
