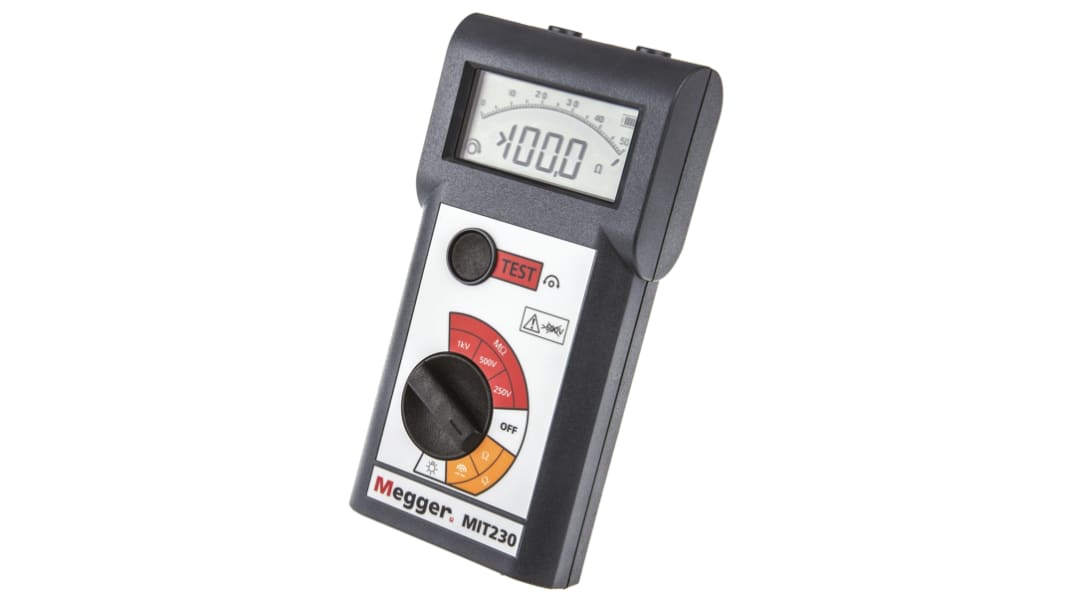

Megger MIT230, Insulation Tester 999MΩ CAT III 300 V

  • RS Stock No. 535-3191
  • Mfr. Part No. MIT230-EN
  • Warranty 3 Year
  • Manufacturer Megger
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

MIT230 Insulation & Continuity Tester

The MIT230 incorporates a range of safety and operation features in one of the smallest electrical insulation testers available. Its LCD offers a combination of digital readout and analogue display, with an analogue pointer response for evaluating circuit charge and discharge characteristics. The instrument housing is in tough ABS.

Features & Benefits

Insulation testing to 1000 MΩ
Dual & triple test voltages models
Digital display with electronic analogue arc display helps to confirm insulation condition & to monitor fluctuating readings not apparent on the digital display
Continuity testing at 200 mA down to 0.01 Ω resolution
Automatic discharge of circuit under test
1 mA test current at selected voltage range
Default voltmeter automatically switches in when the instrument is connected to a circuit with an AC or DC voltage greater than 25 V
Auto-ranging analogue arc scale shows only the scale in use
Live circuit warning above 25 V, also inhibits insulation & continuity tests above 50 V
Lead resistance compensation on continuity
Hands free continuity testing Auto power-down after 5 min
Complies with IEC 1010-1 safety standard installation Category III, 600 V phase to earth
Conforms to EN61557-1
Tests to BS7671, 713-02, 713-03, 713-04, 713-06, 713-08, 413-04-04

Note

RS is an authorised Megger distributor. Purchased though RS this product is eligible for the Megger extended 3 Year warranty

Supplied with

6 x AA alkaline batteries, test leads, crocodile clips, carry case, instructions

Megger Insulation & Continuity Tester

The Megger insulation and continuity tester incorporates a range of safety and operation features in one of the smallest electrical insulation testers available. Its LCD offers a combination of digital readout and analogue display, with an analogue pointer response for evaluating circuit charge and discharge characteristics. The instrument housing is in tough ABS. It supplied with 6xAA alkaline batteries, test leads, crocodile clips, carry case, instructions.

Note
RS is an authorised Megger distributor. Purchased through RS this product is eligible for the Megger extended 3 Year warranty

Features and Benefits

• Insulation testing up to 1000Mohm
• Dual and triple test voltages models
• Digital display with electronic analogue arc display helps to confirm insulation condition and monitor fluctuating readings not apparent on the digital display
• Continuity testing at 200mA down to 0.01ohm resolution
• Automatic discharge of circuit under test
• 1mA test current at selected voltage range
• Default voltmeter automatically switches on when the instrument is connected to a circuit with an AC or DC voltage greater than 25V
• Auto ranging analogue arc scale shows only the scale in use
• Live circuit warning above 25V, also inhibits insulation and continuity tests above 50V
• Lead resistance compensation on continuity
• Hands free continuity testing auto power-down after 5 minutes
• Operating temperature ranges between -100C and 550C

Applications

• Domestic sites
• Commercial sites
• Industrial sites

Certifications

• BS7671
• BS76713-02
• BS76713-03
• BS76713-04
• BS76713-06
• BS76713-08
• BS76413-04-04
• EN61557-1
• IEC 1010-1
• IP40 rated

Warning

  • When measuring voltages, the use of fused test leads is recommended for personal safety.
Specifications
Attribute Value
Tester Type Insulation & Continuity Tester
Minimum Test Voltage 250V
Maximum Test Voltage 1000V dc
Maximum Insulation Resistance Measurement 999MΩ
Display Type LCD
Test Current 200mA
Battery Life 3000 5-Second Tests
Minimum Operating Temperature -10°C
Maximum Operating Temperature +55°C
Power Source Battery
Safety Category Level CAT III
Safety Category Voltage 300V
Safety Category CAT III 300 V
Battery Type AA
Width 98mm
Height 40mm
Weight 530g
Dimensions 195 x 98 x 40mm
Model Number p MIT230
Length 195mm
66 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 27,449.25
(exc. VAT)
PHP 30,743.16
(inc. VAT)
units
Per Unit
1 +
PHP27,449.25
