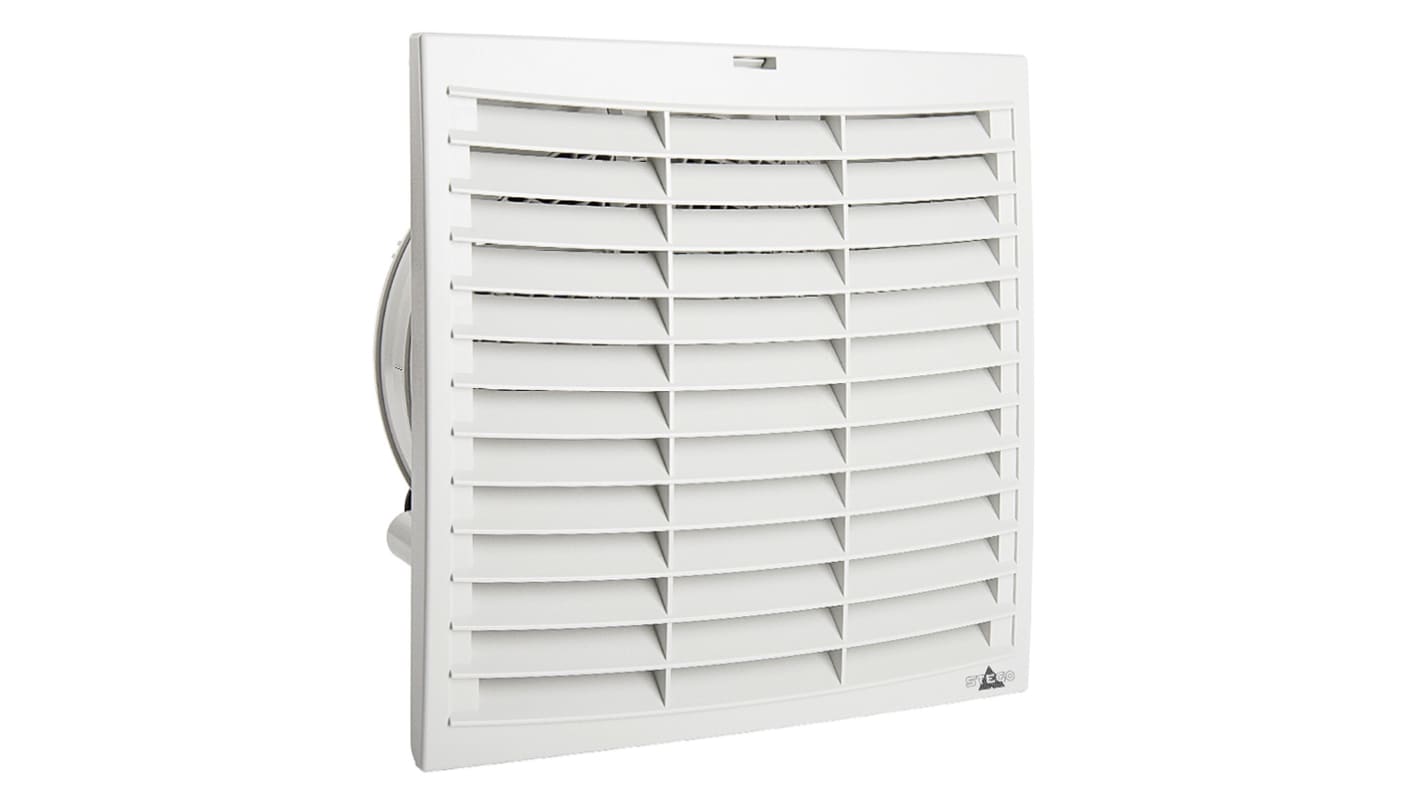

Fan Filter, Intake Filter, 291 x 291mm, Synthetic Fibre

  • RS Stock No. 916-0079
  • Mfr. Part No. 11884.0-30
  • Manufacturer STEGO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Stego Filter Fans Plus, FPI/FPO Series

The Filter Fan Plus series has been designed to optimise climate efficiency within enclosures and cabinets containing electronic/electrical components. The electronic components generate heat and these units disperse that heat with cooler, filtered air from outside the enclosure. Reducing the heat inside the enclosure improves performance and reliability of the electronic items and ultimately costs are kept lower.

FPI or FPO

To choose which items are best for your application first decide which you need, FPI or FPO. Both systems utilise a new air-flap on the outlet which gives a higher degree of airflow to expel heated air more efficiently.

The FPI system is for your more standard set-ups. A filtered fan is placed at the lower part of the enclosure pulling cooler air in. The air works its way up through the enclosure until it is expelled through the air-flap outlet mounted at the top end of the enclosure.

The FPO system has a filtered inlet placed at the lower end of the enclosure but does not include the fan. Instead the fan is placed on the outlet pushing air out of the enclosure which ultimately means the air is drawn in from the lower intake. This system is better for enclosures suffering from hot air pockets at the top of the enclosure.

Ordering

Please note when ordering you need to order the inlet and outlet units separately. As an example, for a 230 V ac, 92 mm, FPI system you need to order item 915-9987 (filter fan inlet) and item 916-0019 (outlet). Various sizes are available and each unit has its compatible partner listed in essential accessories for that size. Each size also has a 230 V ac and a 110 V ac fan to choose from.

Mounting

The front section mounts to the rear section with a simple ratchet type system making instillation quick and simple. It accommodates various panel thicknesses and can easily be released if necessary.

Features

New air-flap outlet technology for high airflow
Easy Mounting
Protection type test/Environmental rating by independent testing institutes (VDE and UL)
Two systems for optimal airflow (FPI/FPO)
Standard enclosure cut-out sizes (5 sizes)
Filter mat included with the FPI system filter fan and FPO intake filter.

Specifications
Attribute Value
Filter Type Intake Filter
Dimensions 291 x 291mm
Filter Material Synthetic Fibre
Length 291mm
Width 291mm
Series Filter Fan Plus FPO
7 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 2,792.65
(exc. VAT)
PHP 3,127.77
(inc. VAT)
units
Per Unit
1 - 4
PHP2,792.65
5 - 11
PHP2,636.59
12 - 24
PHP2,475.36
25 - 49
PHP2,310.63
50 +
PHP2,140.14
