Phoenix Contact UT 2.5 Series Grey Feed Through Terminal Block, 0.14 → 4mm², Single-Level, Screw Termination,
- RS Stock No.:
- 627-3737
- Mfr. Part No.:
- 3044076
- Manufacturer:
- Phoenix Contact
210 In PH stock for Delivery NCR Plus within 2 working days, rest of PH within 7 working days
2700 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each (In a Pack of 10)
PHP89.719
(exc. VAT)
PHP100.485
(inc. VAT)
| Units | Per Unit | Per Pack* |
| 10 - 40 | PHP89.719 | PHP897.19 |
| 50 + | PHP87.476 | PHP874.76 |
| *price indicative | ||
- RS Stock No.:
- 627-3737
- Mfr. Part No.:
- 3044076
- Manufacturer:
- Phoenix Contact
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

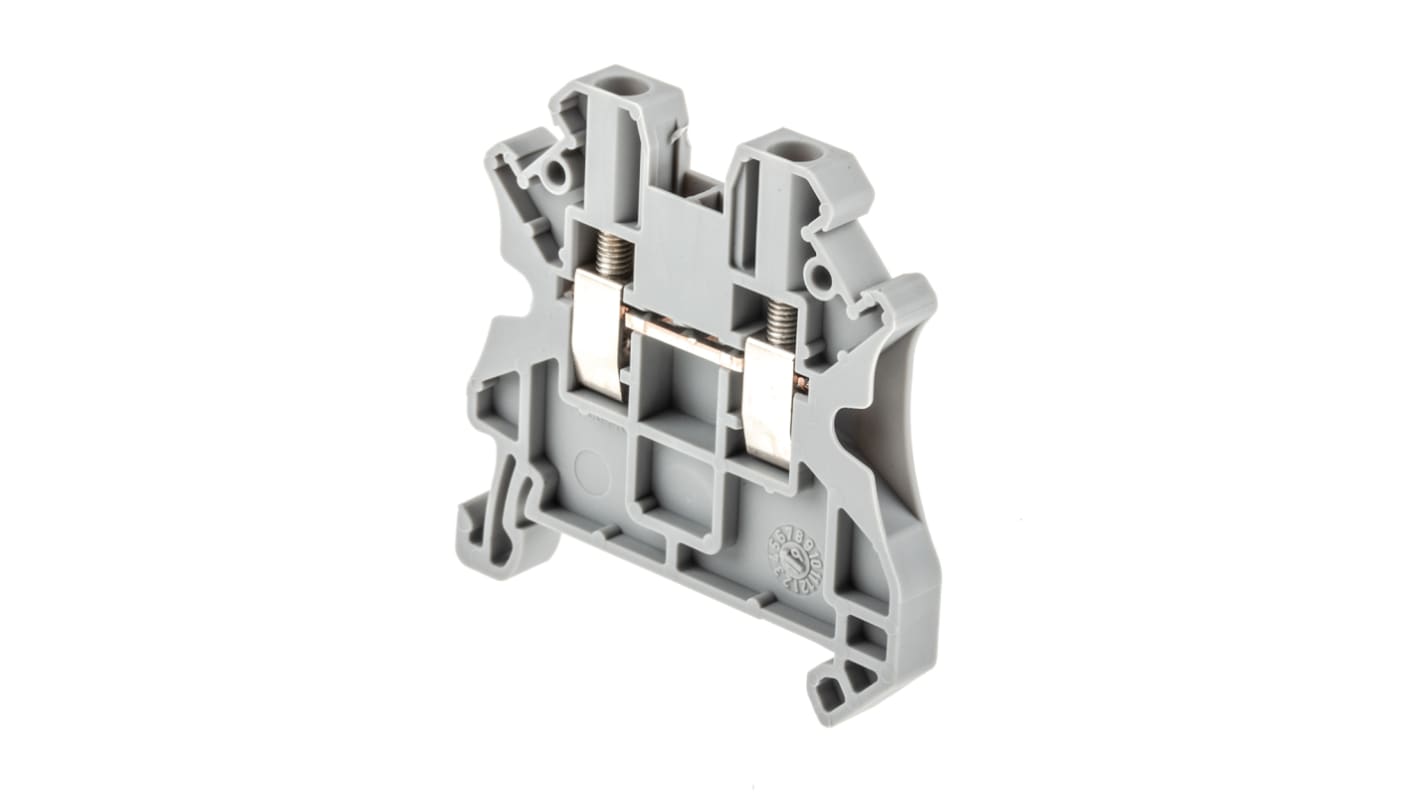

Phoenix Contact Feed-Through Terminal Block, 24A Current Rating, 8kV Surge Voltage Rating - UT 2,5 - 3044076
Wires in a tangle? Get them shipshape with this feed-through terminal block from Phoenix Contact. It's a roomy option with space for you to connect ferruled, stranded and solid cables. Plus, it's a versatile component that handles 26 to 12AWG conductors.
The tough PA housing withstands impact, so it's built to last a long time. It also insulates live wires, so you don't get a nasty shock when handling the unit. Screw terminals keep everything tightly in place to curb accidental disconnections and service downtime. Screw shafts precisely guide your screwdriver to the head, so you get the job done in a jiffy and, thanks to the integrated Reakdyn principle design, the screws won't need re-tightening.
Mounting is a breeze. Simply clip the device onto a DIN rail for tool-free installation in medical devices, railway applications and telecommunications networks.
The tough PA housing withstands impact, so it's built to last a long time. It also insulates live wires, so you don't get a nasty shock when handling the unit. Screw terminals keep everything tightly in place to curb accidental disconnections and service downtime. Screw shafts precisely guide your screwdriver to the head, so you get the job done in a jiffy and, thanks to the integrated Reakdyn principle design, the screws won't need re-tightening.
Mounting is a breeze. Simply clip the device onto a DIN rail for tool-free installation in medical devices, railway applications and telecommunications networks.
Features & Benefits
• Performs in a challenging environments, thanks to an operating temperature range between -50°C and +110°C
• ATEX certifications indicate it's safe to use in potentially explosive areas
• DIN EN 50274 approval shows you the unit safely handles shock and vibration
• ATEX certifications indicate it's safe to use in potentially explosive areas
• DIN EN 50274 approval shows you the unit safely handles shock and vibration
Phoenix Contact CLIPLINE UT Range
Specifications
Attribute | Value |
|---|---|
| Colour | Grey |
| Number of Levels | Single |
| Series | UT 2.5 |
| American Wire Gauge | 26 → 12AWG |
| Termination Method | Screw |
| Cable CSA | 0.14 → 4mm² |
| Voltage Rating | 1 kV |
| Current Rating | 24A |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +110°C |
| Hazardous Area Certification | ATEX |
| Standards Met | ATEX, CCC, CSA, cULus, EAC Ex, IECEx, UL |
| Model Number | UT 2,5 |
