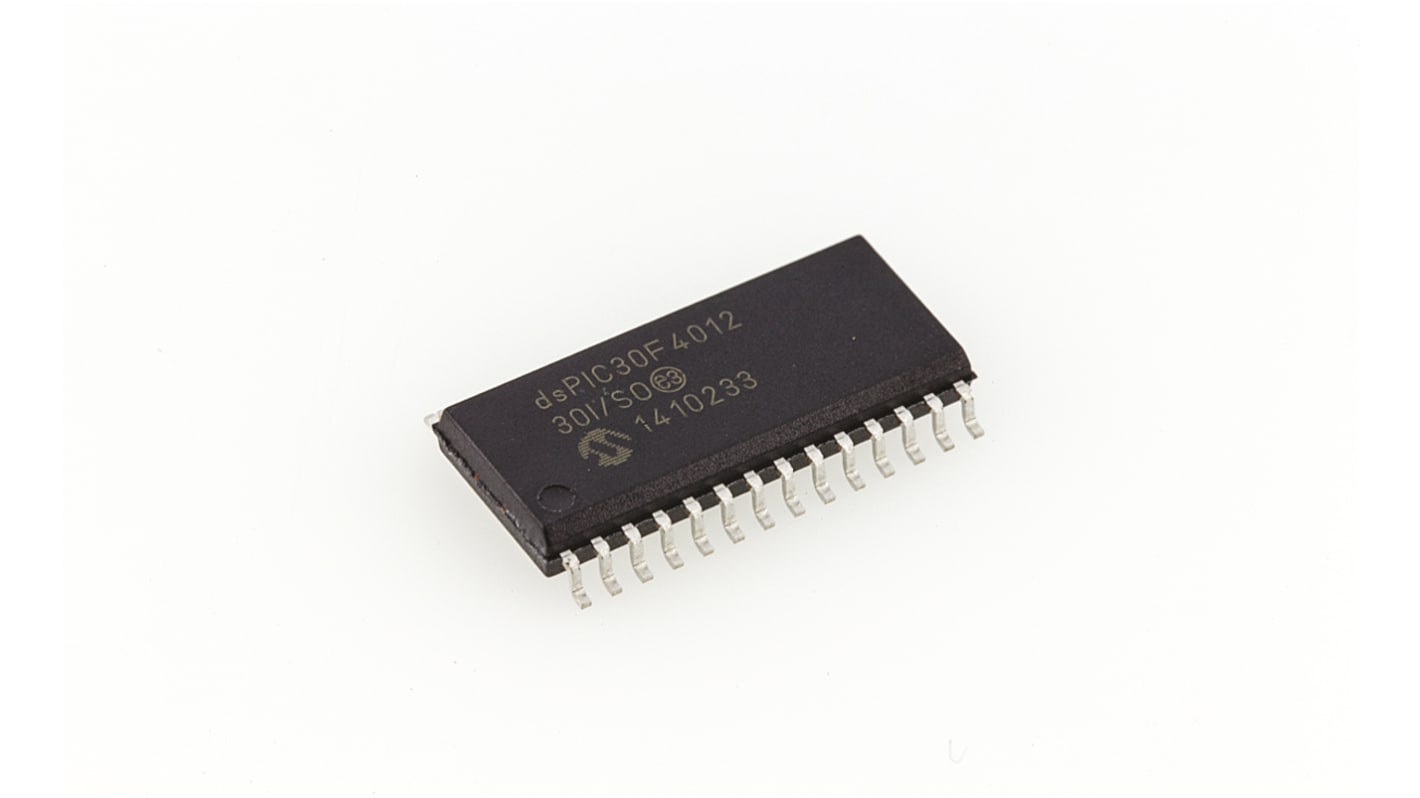

DSPIC30F4012-30I/SO Microchip dsPIC30F, 16bit DSP 30MIPS 1.024 kB, 48 kB Flash 28-Pin SOIC

  • RS Stock No. 622-9960
  • Mfr. Part No. DSPIC30F4012-30I/SO
  • Manufacturer Microchip
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

dsPIC30F Digital Signal Controller

The dsPIC30F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The dsPIC30F is best suited for applications that benefit from a wide operating voltage (2.5 to 5.5V), extremely low standby current, integrated EEPROM and for designers that prefer 5V operation due to systems considerations. The 30MIPS dsPIC30F variants integrate SMPS peripherals, motor control peripherals and a Codec interface that enable efficient digital power converters, advanced motor control algorithms and speech and audio applications. Small package DSCs with high performance ADC are well suited for smart sensing applications.

Specifications
Attribute Value
Maximum Frequency 30MIPS
Series dsPIC30F
Device Million Instructions per Second 30MIPS
Data Bus Width 16bit
RAM Size 2.048 kB
Instruction Set Architecture RISC
Program Memory Size 1.024 kB, 48 kB
Program Memory Type Flash
Mounting Type Surface Mount
Package Type SOIC
Pin Count 28
Typical Operating Supply Voltage 2.5 → 5.5 V
Number of UART Channels 1
Width 7.5mm
ADCs 6 x 10 bit
Number of PWM Units 3
Number of ADC Units 1
Number of Timers 5
ADC Channels 6
ADC Resolution 10bit
Timer Resolution 16bit
Timers 5 x 16 bit
Number of SPI Channels 1
Dimensions 17.9 x 7.5 x 2.35mm
Length 17.9mm
Pulse Width Modulation 1(6 Channel) (Motor Control), 2(16 bit)
Maximum Operating Temperature +85 °C
Height 2.35mm
Number of I2C Channels 1
PWM Channels 6
Number of CAN Channels 1
Minimum Operating Temperature -40 °C
PWM Resolution 16bit
21 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 264.45
(exc. VAT)
PHP 296.18
(inc. VAT)
units
Per Unit
1 - 9
PHP264.45
10 - 99
PHP253.36
100 +
PHP244.84
