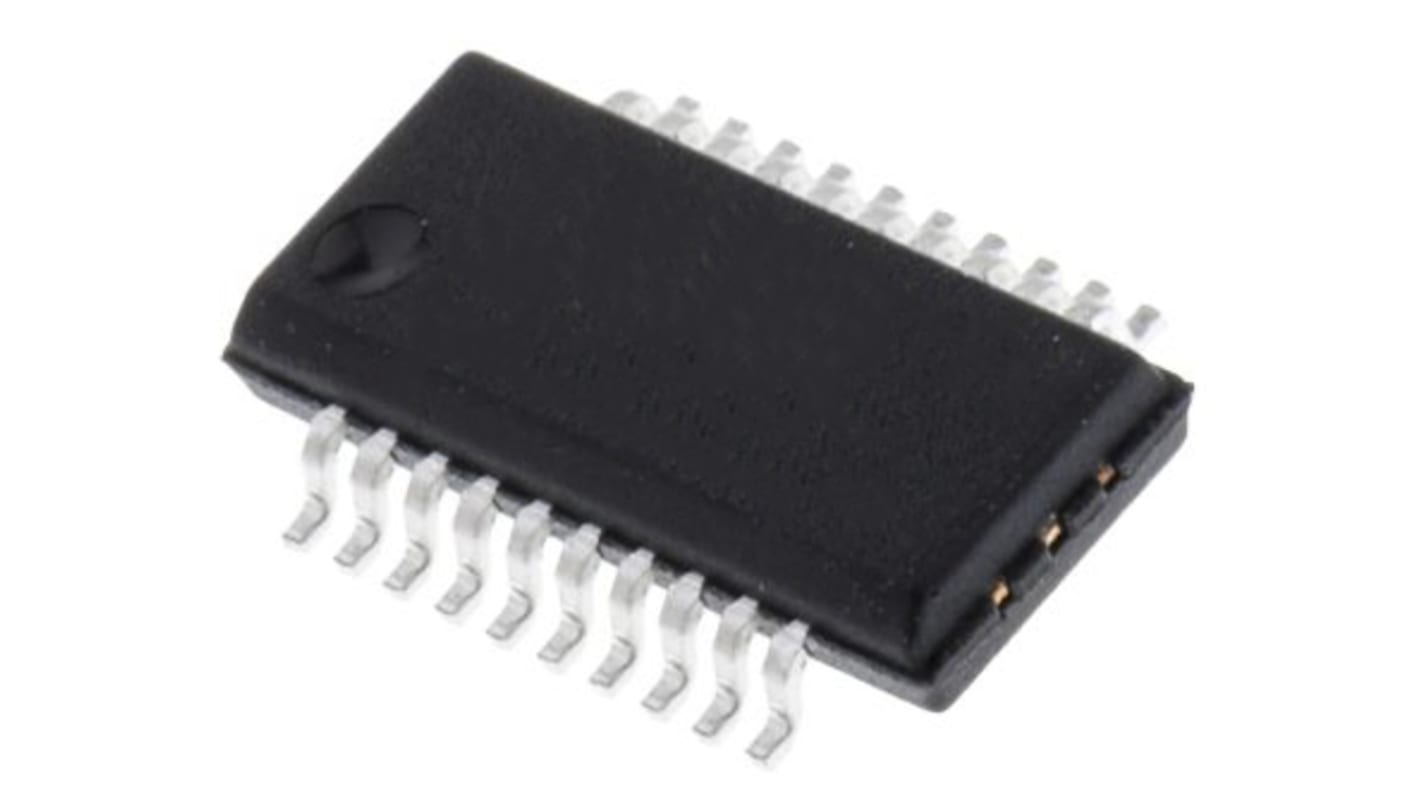

6-Ch Digital Isolator 1kV 25Mbps QSOP20
- RS Stock No.:
- 121-6746
- Mfr. Part No.:
- ADUM7642CRQZ
- Manufacturer:
- Analog Devices
N
View all Digital Isolator ICs
Available for back order.
Price Each (In a Tube of 56)
PHP395.276
(exc. VAT)
PHP442.709
(inc. VAT)
| units | Per Unit | Per Tube* |
| 56 + | PHP395.276 | PHP22,135.456 |
| *price indicative | ||
- RS Stock No.:
- 121-6746
- Mfr. Part No.:
- ADUM7642CRQZ
- Manufacturer:
- Analog Devices
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
ADuM764x series 1kV 6-channel Digital Isolators
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Digital Isolators, Analog Devices
A comprehensive range of Digital Isolators featuring iCoupler® technology from Analog Devices. These products combine high speed CMOS and monolithic air core transformer technologies to provide outstanding performance characteristics superior to alternative product types such as opto-coupled devices and exhibit superior long-term reliability, stability and longevity.
Specifications
Attribute | Value |
|---|---|
| Maximum Data Rate | 25Mbps |
| Number of Channels | 6 |
| Package Type | QSOP |
| Maximum Forward Voltage | 5.5V |
| Maximum Input Current | 38 mA |
| Isolation Voltage | 1000 V |
| Rise Time | 1ms |
| Number of Pins | 20 |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Length | 8.76mm |
| Depth | 1.65mm |
| Width | 4.01mm |
