Ruland Beam Coupling, 15mm Outside Diameter, 3mm Bore, 20mm Length Coupler
- RS Stock No.:
- 325-8173
- Mfr. Part No.:
- MWS15-3-3-SS
- Manufacturer:
- Ruland
1 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP4,693.34
(exc. VAT)
PHP5,256.54
(inc. VAT)
| Units | Per Unit |
| 1 - 5 | PHP4,693.34 |
| 6 - 11 | PHP4,529.71 |
| 12 + | PHP4,397.34 |
- RS Stock No.:
- 325-8173
- Mfr. Part No.:
- MWS15-3-3-SS
- Manufacturer:
- Ruland
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Stainless Steel Flexible Shaft Couplings
Designed to perform where higher speeds, greater misalignment, and limited lubrication would exceed the capabilities of other couplings. Each coupling is manufactured as one piece, thereby eliminating mechanical joints and possible failure points.Two fixing styles available:,Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, fans etc., (i) Set Screw style is secured using one grub-screw per shaft (staggered at 120°) , (ii) Clamp style fixing uses one socket head cap screw per shaft.
Constant velocity couplings with high torque capacity and zero backlash
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable
Torsionally rigid one-piece construction
Not temperature sensitive
High or low speed operation and reversible
No lubrication required
Up to 3° of axial misalignment allowable
Note

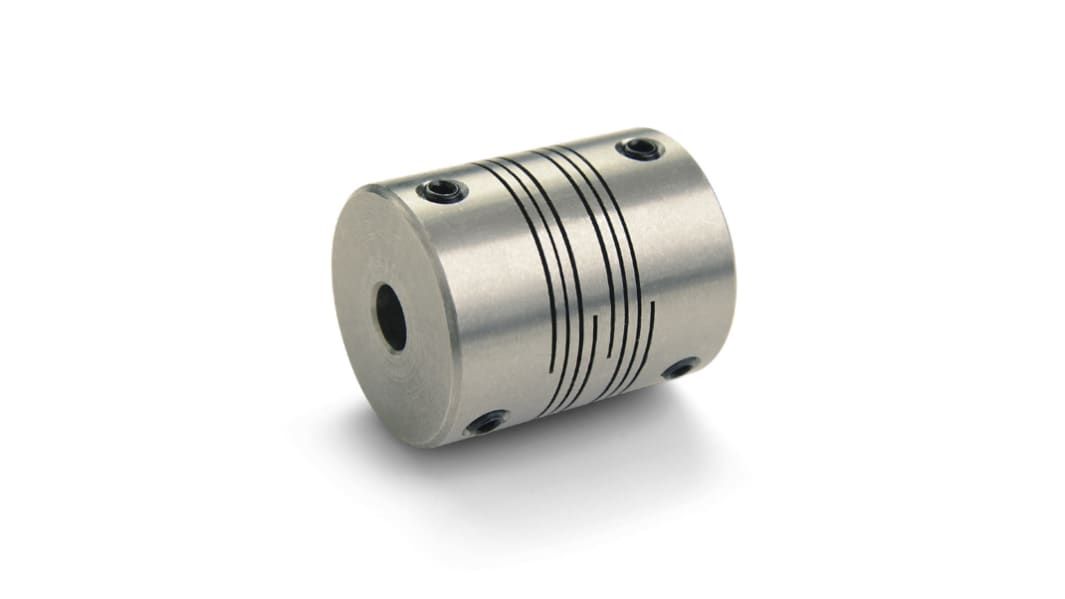

The coupling shown represents the clamp style fixing
Specifications
Attribute | Value |
|---|---|
| Bore | 3mm |
| Coupling Types | Beam Coupling |
| Outside Diameter | 15mm |
| Length | 20mm |
| Torque Rating | 0.85Nm |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.2mm |
| Misalignment - Axial | 0.12mm |
