- RS Stock No.:
- 369-1817
- Mfr. Part No.:
- 100-C09KF10
- Manufacturer:
- Allen Bradley
33 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP4,498.15
(exc. VAT)
PHP5,037.93
(inc. VAT)
Units | Per Unit |
1 - 5 | PHP4,498.15 |
6 + | PHP4,390.18 |
- RS Stock No.:
- 369-1817
- Mfr. Part No.:
- 100-C09KF10
- Manufacturer:
- Allen Bradley
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Product Details
100-C AC Coil Operating Contactors
Experience greater efficiency, reliability, and enhanced performance with the compact yet powerful 100-C series of contactors by Allen Bradley.
Max Switching Voltage 690V (Rated Voltage) AC3
Coil Nominal AC Power 8 to 16 VA (Hold in); 70 to 200VA (Inrush)
Electrical Life: 1.3 Million Operations (400V)
3 pole, 1 NO auxiliary contact on sizes 4 to 11kW
Coil Nominal AC Power 8 to 16 VA (Hold in); 70 to 200VA (Inrush)
Electrical Life: 1.3 Million Operations (400V)
3 pole, 1 NO auxiliary contact on sizes 4 to 11kW
100-C series contactors have reversible coil terminals, offer front and side mounting of auxiliary contacts, and can be attached to a 35mm DIN Rail mount or panel mounted. Breadth of line is 9...97 A. These contactors provide IP2X finger protection to prevent risk of injury to operators and risk of damage to the device. They are compatible with electronic overload relays and bimetallic relays. This series also conveniently offers common accessories for all contactor sizes to give you a perfectly integrated system.
Features:
Max Switching Voltage 690V (Rated Voltage) AC3
Coil Nominal AC Power 8 to 16 VA (Hold in); 70 to 200VA (Inrush)
Electrical Life: 1.3 Million Operations (400V)
3 pole, 1 NO auxiliary contact on sizes 4 to 11kW
Coil Nominal AC Power 8 to 16 VA (Hold in); 70 to 200VA (Inrush)
Electrical Life: 1.3 Million Operations (400V)
3 pole, 1 NO auxiliary contact on sizes 4 to 11kW
Standards: IEC947, EN60 947, VDE0660, UL508, CSA22.2.
Approvals: UL, CSA
Approvals
UL, CSA
Standards
IEC947, EN60 947, VDE0660, UL508, CSA22.2.

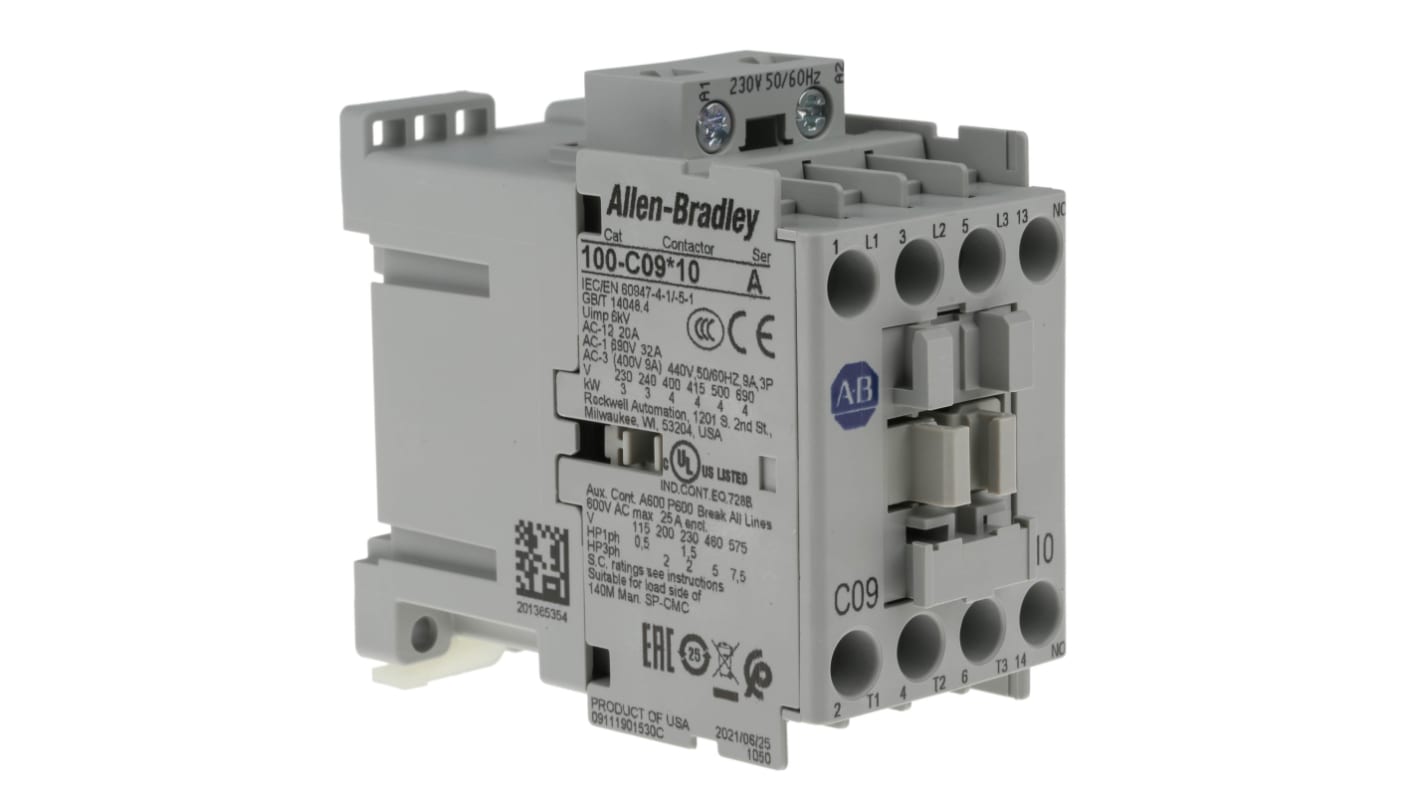

100-C09KF10 Contactor
The 100-C09KF10 model is a 3-Pole contactor with screw type terminals and a rated operating current of 9A. It has 1NO, 0NC auxiliary contact configuration. The coil voltage is 230V, 50/60Hz. Coil termination for this unit is line side and it has a power rating of 4kW.
How do contactors work?
Contactors are electromagnetic devices which can switch high amounts of electrical current and work with the use of an internal coil or electromagnet, which opens or closes the contacts when electrical current passes through it. They are similar to relays, however they can handle larger loads and are able to switch more than 15 amperes. This makes them ideal for heavy-duty, larger scale applications, such as switching several different circuits simultaneously. These devices can be remotely controlled and so can be used for logic controlling, such as turning different things on and off together. Contactors feature high coil voltages and they also have more input and output options than relays. They are often used to control electric motors and lighting systems.
Allen Bradley Contactors are expertly designed to consistently deliver excellent performance and meet your unique requirements. They have a range of motor control products, including IEC and NEMA contactors that can be combined with compatible accessories, to help you find your ideal solution.
Allen Bradley MCS (Modular Control System) Contactors
A modular motor control system allowing users flexibility to design and construct an adaptable system. It has been designed to take in to account the demands and requirements of modern motors and their users; satisfying requirements up to 85AC3. A wide range of accessories are also available to cater for many diverse needs. The ease of assembly, installation and modification can bring many benefits not only those related to cost, but can reduce the number of parts which need to be held. The compact size of the component parts, bring other benefits including reduction in enclosure volume required, modern design and weight savings are also gained. By applying a modular design concept and an easy to fit 'clip-in' method, all add to the class leading features and benefits of the MCS system.
MCS features:
DIN Rail
Surface Mounting
Surface Mounting
Specifications
Attribute | Value |
---|---|
Coil Voltage | 230 V ac |
Number of Poles | 3 |
Contact Voltage Rating | 690 V ac |
Contact Current Rating | 9 A |
Power Rating | 4 kW |
Series | 100C |
Range | 100 Series |
Function | Motor Control |
Normal State Configuration | 3NO |
Number Of Auxiliary Contacts | 1 |
Terminal Type | Screw |
Length | 81mm |
Width | 45mm |
Depth | 86.5mm |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +60°C |
