Siretta Black RF LLC200A Coaxial Cable 50 Ω

  • RS Stock No. 124-8839
  • Mfr. Part No. ASMA1000F058L13
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

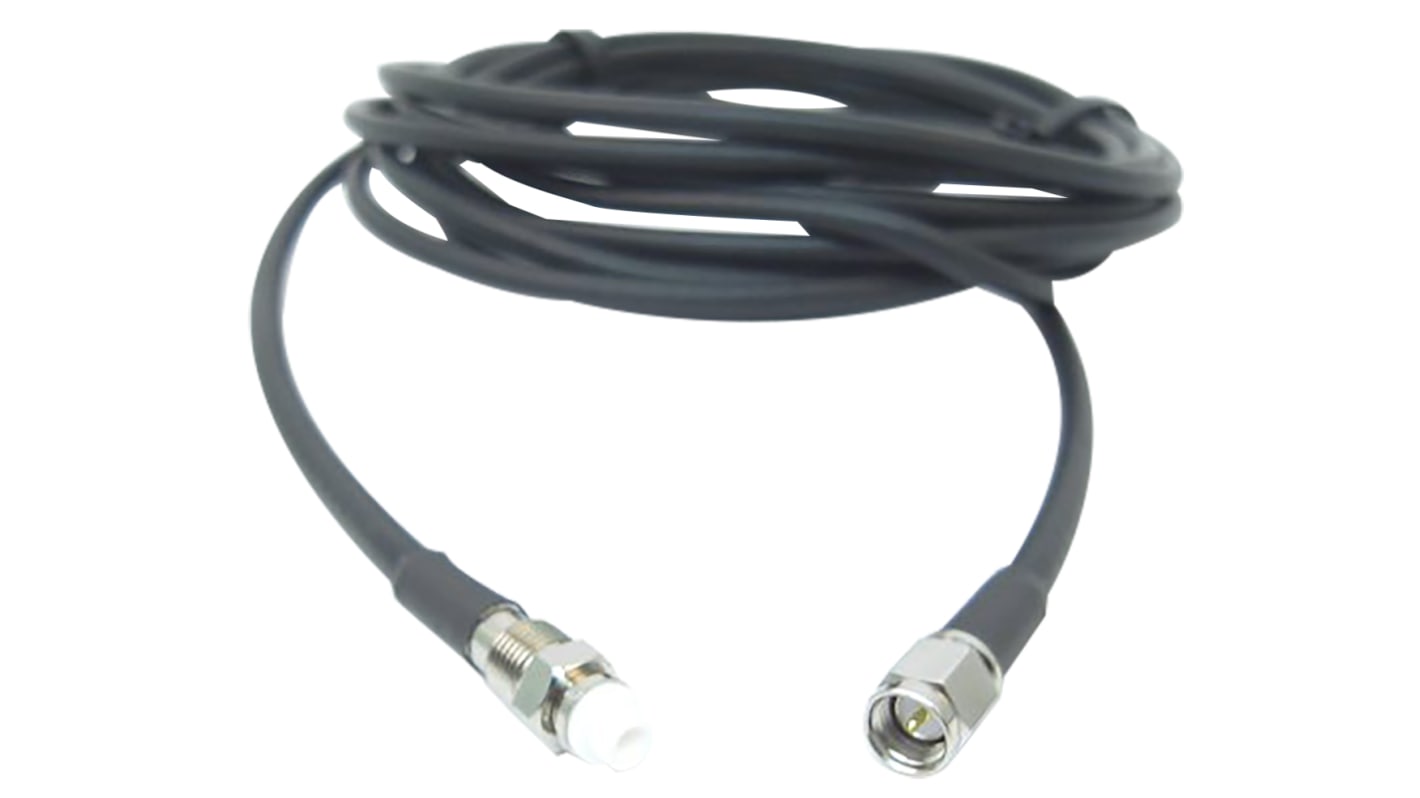

SMA Male to FME Female LLC200A Coaxial Cables, Siretta

Available in two cable lengths with an SMA Male connector and an FME Female connector:

ASMA300E058L13 - 3 m cable (140-7762)
ASMA500F058L13 - 5 m cable (124-8838)
ASMA1000F058L13 - 10 m cable (124-8839)
ASMA1500F058L13 - 15 m cable (140-7623)
ASMA2000F058L13 - 20 m cable (140-7628)

Cable Specifications
Impedance: 50 Ω
Loss dB/M @ 1.8 GHz: 0.52, @ 2.1 GHz: 0.64
Cable: LLC200A
Operating Frequencies: Up to 6 GHz

Dimensions
Core: 0.94 mm copper wire
Insulator: 2.79 mm GAS-FPE
Shield: tinned copper braid
Jacket: 4.95 mm PVC

Siretta Coaxial Cables

Specifications
Attribute Value
Length 10m
Terminated/Unterminated Terminated
Connector A Male SMA
Connector B Female FME
Coaxial Type RF LLC200A
Characteristic Impedance 50 Ω
Sheath Colour Black
33 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 3,870.60
(exc. VAT)
PHP 4,335.07
(inc. VAT)
units
Per Unit
1 +
PHP3,870.60
