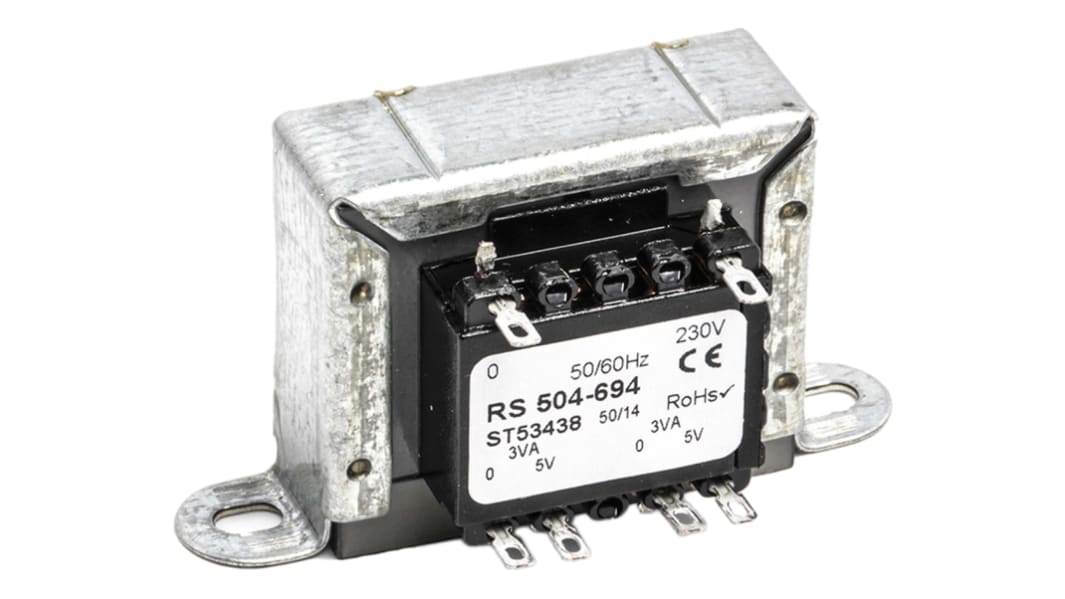

RS Pro 6VA 2 Output Chassis Mounting Transformer, 5V ac

  • RS Stock No. 504-694
  • Manufacturer RS Pro
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PL
Product Details

Chassis Mount, Clamp Construction, 230Vac, 6VA to 50VA

Chassis mounting low voltage mains transformers with a single 230Va.c. 50/60Hz primary winding. The two independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.

Double section bobbin construction
Fully shrouded bobbins
Full varnish impregnation
Two hole fixing wrap-over clamps
Solder tag terminations
Optional terminal shrouds
(example 503-912 )
100% electrical and flash tested
Tested in accordance with BS3535 and EN 60 742

Insulation Class B (130°C)
Isolation Primary to Secondary 4kV
  Windings to Core 2kV
  Primary/Secondary/Core 500Vdc
Max. Winding Temperature Rise +55°C ambient max.

Standards

BS3535; EN 60 742

Specifications
Attribute Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating 5V ac
Power Rating 6VA
Number of Outputs 2
Mounting Type Clamp Mount
CAD Drawing 3D CAD Model
Length 45mm
Width 40mm
Depth 37mm
Dimensions 45 x 40 x 37mm
Fixing Hole Diameter 4 x 5.5mm
Weight 200g
Minimum Operating Frequency 50Hz
Maximum Operating Frequency 60Hz
67 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 239.13
(exc. VAT)
PHP 267.83
(inc. VAT)
units
Per Unit
1 - 9
PHP239.13
10 - 24
PHP233.15
25 - 49
PHP227.32
50 - 99
PHP221.64
100 +
PHP216.10
