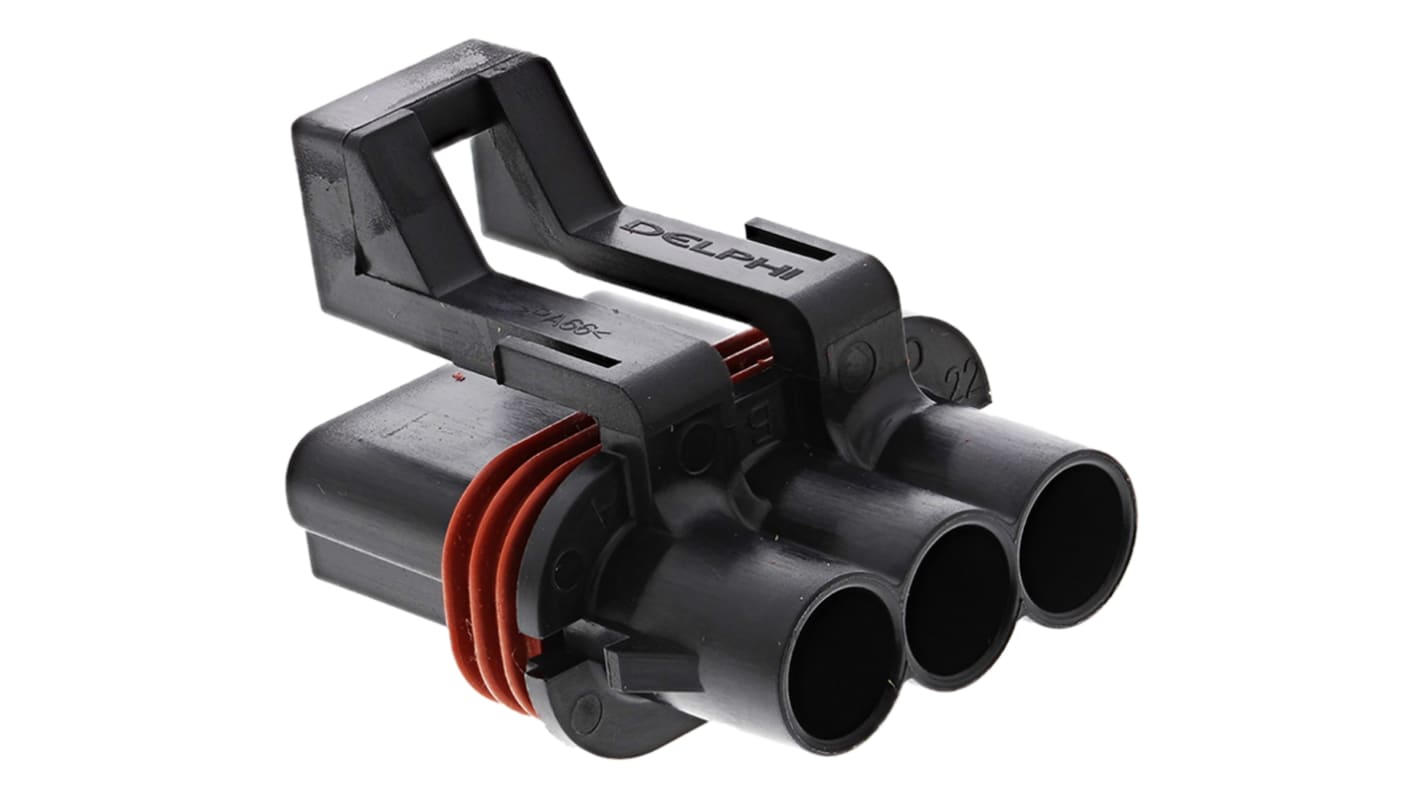

Delphi, Metri-Pack 280 Automotive Connector Female Black Cable 3 Way Crimp Termination 12040977
- RS Stock No.:
- 801-1045
- Mfr. Part No.:
- 12040977
- Manufacturer:
- Delphi
Bulk discount available
Subtotal (1 unit)*
PHP121.73
(exc. VAT)
PHP136.34
(inc. VAT)
FREE delivery for orders over ₱3,000.00
In Stock
- 454 unit(s) ready to ship from another location
- Plus 1,190 unit(s) shipping from March 24, 2026
- Plus 300 unit(s) shipping from April 10, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 9 | PHP121.73 |
| 10 - 24 | PHP118.07 |
| 25 - 99 | PHP114.53 |
| 100 - 249 | PHP112.01 |
| 250 + | PHP109.59 |
*price indicative
- RS Stock No.:
- 801-1045
- Mfr. Part No.:
- 12040977
- Manufacturer:
- Delphi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Delphi | |
| Product Type | Automotive Connector | |
| Number of Contacts | 3 | |
| Sub Type | Automotive Connector | |
| Termination Type | Crimp | |
| Current | 14A | |
| Gender | Female | |
| Number of Rows | 1 | |
| Mount Type | Cable | |
| Series | Metri-Pack 280 | |
| Cord Included | No | |
| Colour | Black | |
| Diameter | 36.7 mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 30.4 mm | |
| Standards/Approvals | No | |
| Depth | 36.7mm | |
| Height | 26.5mm | |
| Housing Material | Polyamide | |
| Select all | ||
|---|---|---|
Brand Delphi | ||
Product Type Automotive Connector | ||
Number of Contacts 3 | ||
Sub Type Automotive Connector | ||
Termination Type Crimp | ||
Current 14A | ||
Gender Female | ||
Number of Rows 1 | ||
Mount Type Cable | ||
Series Metri-Pack 280 | ||
Cord Included No | ||
Colour Black | ||
Diameter 36.7 mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Width 30.4 mm | ||
Standards/Approvals No | ||
Depth 36.7mm | ||
Height 26.5mm | ||
Housing Material Polyamide | ||
Delphi Metri-Pack 280 Sealed Female Automotive Connectors
Metri-Pack 280 sealed female automotive connectors with triple rib silicone rubber seals for environmental protection and a standard ISO 2.8mm configuration. These Metri-Pack 280 sealed female automotive connectors have a low energy, low voltage capability, a maximum continuous current of 30 A. They offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C.
Typical applications for these Metri-Pack 280 automotive connectors include critical low energy electronic under-hood vehicles applications where environmental protection is essential. For inforamtion on mating halves and accessories please see table.
Delphi Metri-Pack 280 Series Automotive Connectors
Standards
Metri-pack 280 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.
