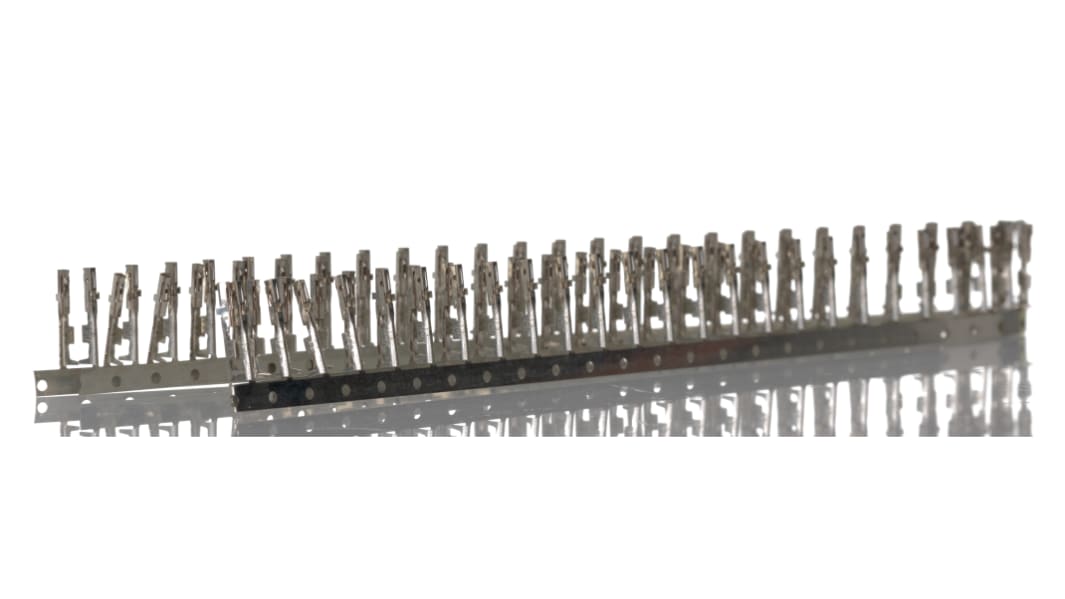

Molex, Mini50, 560023 Female Receptacle Terminal

RS Stock No.:: 134-8826
Mfr. Part No.:: 560023-0421
Manufacturer:: Molex

Molex, Mini50, 560023 Female Receptacle Terminal

1 / 4

Bulk discount available

Subtotal (1 reel of 100 units)**

PHP178.20

(exc. VAT)

PHP199.60

(inc. VAT)

11000 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for over PHP3,000.00 (ex VAT)

Real time qty checker

Units	Per Unit	Per Reel**
100 - 900	PHP1.782	PHP178.20
1000 - 2400	PHP1.729	PHP172.90
2500 - 4900	PHP1.677	PHP167.70
5000 +	PHP1.627	PHP162.70

**price indicative

RS Stock No.:: 134-8826
Mfr. Part No.:: 560023-0421
Manufacturer:: Molex

Molex Mini50 Series Automotive Connector Terminal, For Use With Automotive Connectors - 560023-0421

This automotive connector terminal from Molex is a reliable and durable solution for various power applications. With its copper alloy construction and tin plating, it ensures secure and efficient connections. The terminal is designed for use with automotive connectors, offering a high-traffic solution for demanding environments.

Features & Benefits

• Female connector terminal suitable for power requirements
• M-Grip design for easy handling and installation
• Left payoff orientation for convenient wiring
• Copper alloy material for durability and reliability
• Tin plating ensures strong connections
• Compatible with wire insulation diameter of 0.95 to 1.20 mm
• Reel packaging type for easy storage and organisation

Applications

• Ideal for use in automotive connector systems
• Suitable for various power applications in automotive settings

Can it support high current loads?

This connector terminal can handle a maximum current of 4A, making it suitable for power applications.

Will it work with different wire sizes?

The connector terminal is designed to accommodate wire insulation diameter ranging from 0.95 to 1.20 mm.

Is it compatible with specific connector systems?

Yes, this terminal is designed to work seamlessly with Mini50 series connector systems.

What is the material used for this terminal?

The terminal is made of a copper alloy with tin plating for durability and reliable performance.

Can it be used in harsh automotive environments?

Yes, this connector terminal is designed to withstand demanding automotive conditions, making it a reliable choice for various applications.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Molex 2.00mm Mini50 Automotive Connectors

The Mini50 series automotive connector system with its compact, low profile design and small footprint offers 50% space savings over traditional USCAR 0.64 mm connectors. The smaller terminals of the Mini50 series automotive connectors enable more signals to be fitted into vehicle interiors. The Mini50 connector system is designed and tested to USCAR 050 specifications and is approved as the industry’s only USCAR 050 interface.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Type	Receptacle Terminal
	Series	Mini50
	Gender	Female
	Contact Plating	Tin
	Contact Material	Copper Alloy
	Diameter	1.2mm
	Current Rating	4A
	Termination Method	Crimp
	Series Number	560023

	Select all
	Brand Molex
	Type Receptacle Terminal
	Series Mini50
	Gender Female
	Contact Plating Tin
	Contact Material Copper Alloy
	Diameter 1.2mm
	Current Rating 4A
	Termination Method Crimp
	Series Number 560023
