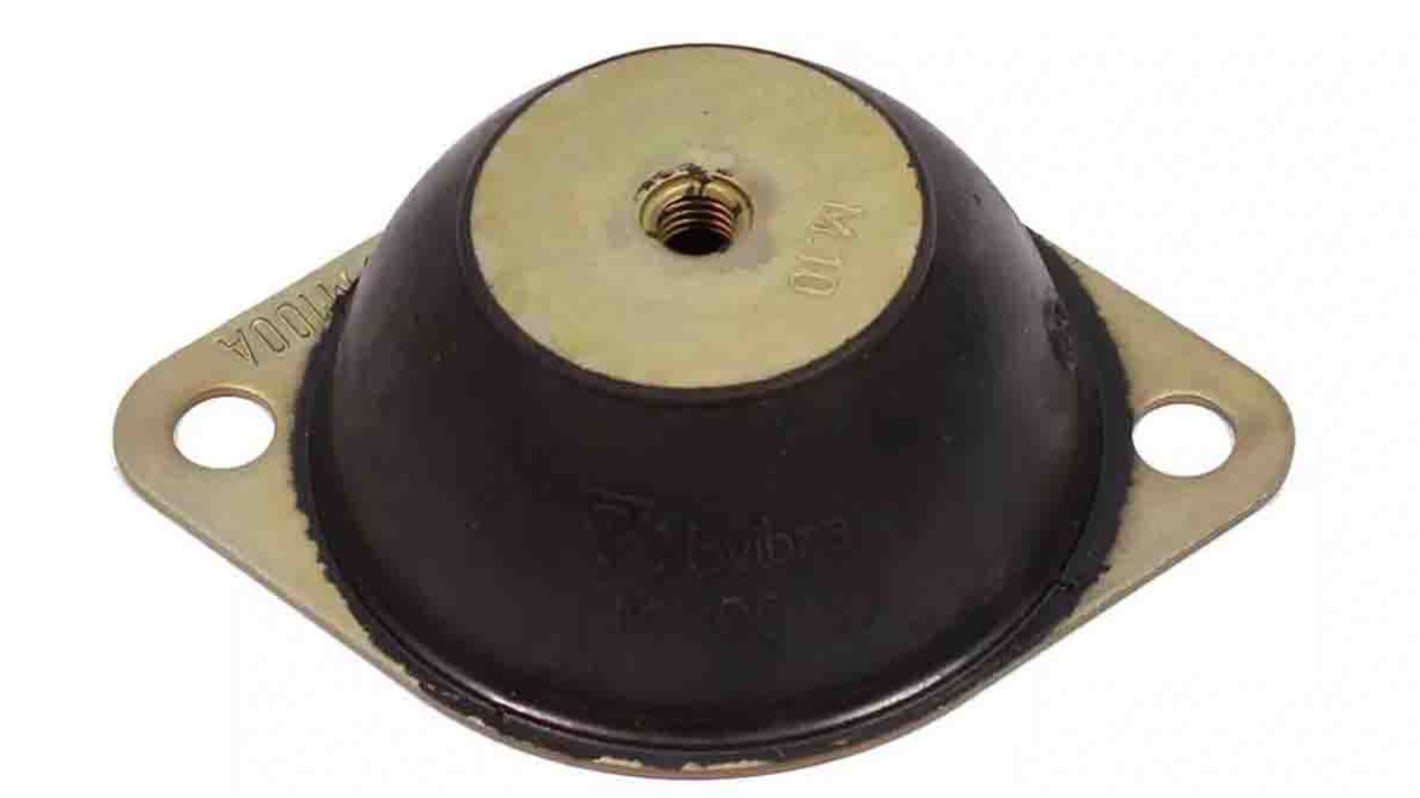

Trelleborg Novibra Round M10 Anti Vibration Mount with 130kg Compression Load

View all Anti Vibration Mounts

Subtotal (1 unit)*

PHP3,045.56

(exc. VAT)

PHP3,411.03

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 16 unit(s) ready to ship from another location
  • Plus 16 unit(s) shipping from January 20, 2026
  • Plus 16 unit(s) shipping from February 17, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +PHP3,045.56

*price indicative

RS Stock No.:
202-4107
Mfr. Part No.:
10-00102
Manufacturer:
Trelleborg
Find similar products by selecting one or more attributes.
Select all

Brand

Trelleborg

Thread Size

M10

Diameter

58mm

Trade Name

Novibra

Foot Height

13mm

Overall Height

45mm

Material

Natural Rubber

Compression Load

130kg

Foot Shape

Round

Maximum Operating Temperature

+82°C

Minimum Operating Temperature

-55°C

COO (Country of Origin):
CN
The Trelleborg Novibra 40° IRHD M-mount is specifically designed to give large deflection at low loads, whilst being compact in weight and easy to install. When using M mount together with the height adjuster HA, it is necessary to use a washer

Wide load rating options from 3.5-2500 kg
Corrosion protected to cope with arduous environments on land or marine applications
