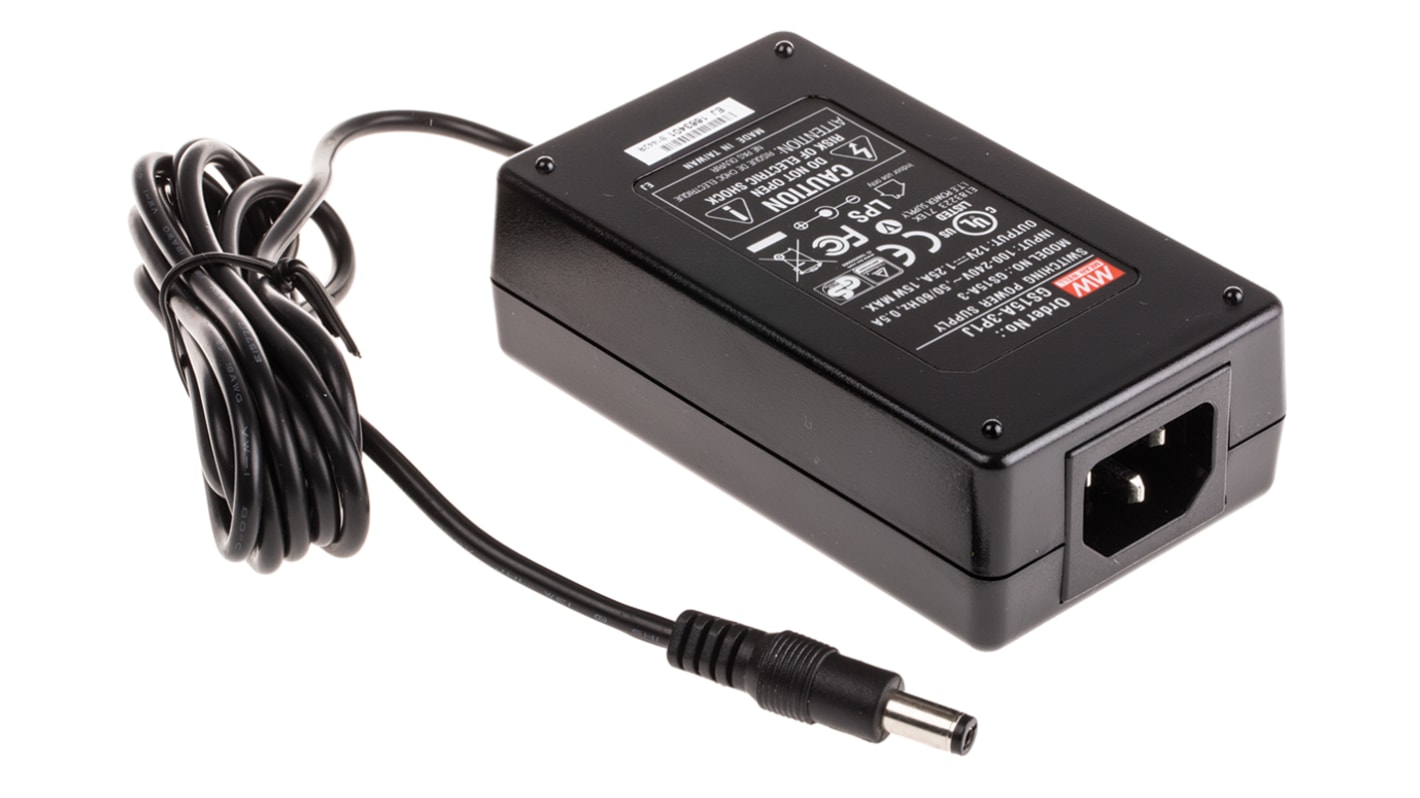

MEAN WELL Power Brick AC/DC Adapter 12V dc Output, 1.25A Output
- RS Stock No.:
- 721-2095
- Mfr. Part No.:
- GS15A-3P1J
- Manufacturer:
- MEAN WELL
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 721-2095
- Mfr. Part No.:
- GS15A-3P1J
- Manufacturer:
- MEAN WELL
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Adapter Type | Power Brick Adapter | |
| Output Voltage | 12V dc | |
| Input Voltage | 100 → 240V ac | |
| Output Current | 1.25A | |
| Maximum Temperature | +50°C | |
| Output Connector | P1J | |
| Input Connector | IEC 320-C14 | |
| Number of Outputs | 1 | |
| Cable Length | 1830mm | |
| Standards Met | ErP Compliant | |
| Efficiency | 80% | |
| MTBF | 500000h | |
| Width | 58.5mm | |
| Depth | 32.8mm | |
| Minimum Temperature | 0°C | |
| Length | 100mm | |
| Load Regulation | ±3% | |
| Energy Efficiency Level | V | |
| Line Regulation Range | ±0.5% | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Adapter Type Power Brick Adapter | ||
Output Voltage 12V dc | ||
Input Voltage 100 → 240V ac | ||
Output Current 1.25A | ||
Maximum Temperature +50°C | ||
Output Connector P1J | ||
Input Connector IEC 320-C14 | ||
Number of Outputs 1 | ||
Cable Length 1830mm | ||
Standards Met ErP Compliant | ||
Efficiency 80% | ||
MTBF 500000h | ||
Width 58.5mm | ||
Depth 32.8mm | ||
Minimum Temperature 0°C | ||
Length 100mm | ||
Load Regulation ±3% | ||
Energy Efficiency Level V | ||
Line Regulation Range ±0.5% | ||
Mean Well Desktop Power Supply
The Mean Well GS series desktop power supply is the latest invention with an adapter and a voltage rating of 12VDC. It provides 15W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency range from 47Hz to 63Hz. While the input voltage rating ranging from 90VAC to 264VAC/135VDC to 370VDC, its maximum input current is 50A. It has 3-pin IEC320, C14 input socket. This switch-mode, single output desktop power supply has a fully enclosed in a plastic case. It has features like a short-circuit, suitable input leads, overload and voltage protection, along with an LED indication for power on.
Note:
Conforms to energy-related product directive 2009/125/EC. MTBF to MIL-HDBK-217F.
Note:
Conforms to energy-related product directive 2009/125/EC. MTBF to MIL-HDBK-217F.
Features and Benefits
High efficiency, long life and high reliability
ErP compliant
No load power consumption of less than 0.3W
short-circuit, over load and over voltage protection
1m output lead fitted with a centre positive jack plug
Pass LPS
ErP compliant
No load power consumption of less than 0.3W
short-circuit, over load and over voltage protection
1m output lead fitted with a centre positive jack plug
Pass LPS
Applications
Laptop power supply
Netbook power supply or notebook power supply
Netbook power supply or notebook power supply
Certifications
EMC compliance FCC part 15
EN55022 class B
Harmonic compliance to EN 61000-3-2,3
UL60950-1
TUV EN60950-1
UL/cUL approved
TUV
CB
EISA 2007 (energy independence and security act)
EN55022 class B
Harmonic compliance to EN 61000-3-2,3
UL60950-1
TUV EN60950-1
UL/cUL approved
TUV
CB
EISA 2007 (energy independence and security act)
