Vishay, 56 kHz IR Receiver ±75°, 16 m Range 2.5 V 5.5V, Surface 3 mm 6.8 mm 4-Pin 2.35mm
- RS Stock No.:
- 230-8366
- Mfr. Part No.:
- TSOP75456WTT
- Manufacturer:
- Vishay

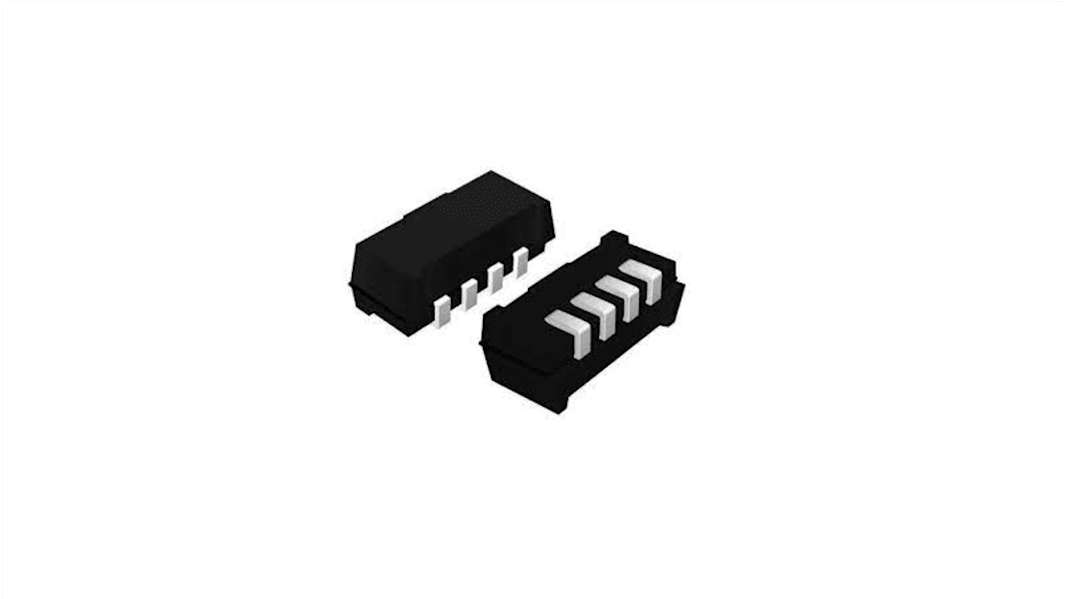

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 230-8366
- Mfr. Part No.:
- TSOP75456WTT
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IR Receiver | |
| Carrier Frequency | 56kHz | |
| Maximum Transmission Distance | 16m | |
| Angle of Half Transmission Distance | ±75° | |
| Packaging | SMD | |
| Orientation | Top, Side View | |
| Output Current | 0.5mA | |
| Number of Pins | 4 | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 100°C | |
| Length | 6.8mm | |
| Height | 3mm | |
| Standards/Approvals | JEDEC | |
| Width | 2.35mm | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 2.5V | |
| Supply Current | 3mA | |
| Series | TSOP75.W | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IR Receiver | ||
Carrier Frequency 56kHz | ||
Maximum Transmission Distance 16m | ||
Angle of Half Transmission Distance ±75° | ||
Packaging SMD | ||
Orientation Top, Side View | ||
Output Current 0.5mA | ||
Number of Pins 4 | ||
Mount Type Surface | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 100°C | ||
Length 6.8mm | ||
Height 3mm | ||
Standards/Approvals JEDEC | ||
Width 2.35mm | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 2.5V | ||
Supply Current 3mA | ||
Series TSOP75.W | ||
Automotive Standard No | ||
The Vishay SMD IR receiver modules used for infrared remote control systems. Two PIN diodes and a preamplifier are assembled on a lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. It is optimized to suppress almost all spurious pulses from energy saving lamps like CFLs. It has 2.35 mm low profile and internal filter for PCM frequency. It is TOP view taped package comes on 2200 pcs/reel.
It is compliant to RoHS directive and lead free
It require very low supply current
