Sick 50 mm Monochrome Vision Sensor - 640 x 480 pixels
- RS Stock No.:
- 123-5181
- Mfr. Part No.:
- VSPI-4F2111
- Manufacturer:
- Sick
2 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price 1 Kit
PHP209,409.55
(exc. VAT)
PHP234,538.70
(inc. VAT)
| Kit(s) | Per Kit |
| 1 + | PHP209,409.55 |
- RS Stock No.:
- 123-5181
- Mfr. Part No.:
- VSPI-4F2111
- Manufacturer:
- Sick
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

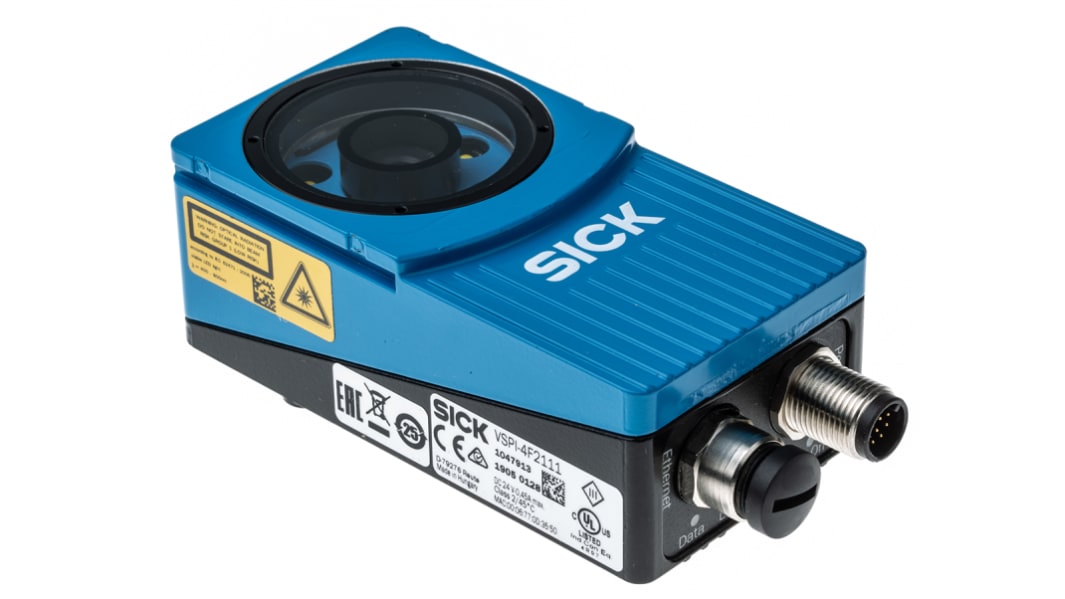

Sick Inspector I40 Vision Sensor Kit - VSPI-4F211
Sick Inspector I40 Vision Sensor kit provides an intelligent vision solution in an easy to use vision sensor package. The vision sensor has features to solve inspection at high speed, the vision sensor incorporates locating and positioning tools as well as edge detection and pattern matching functions. Sick's I40 sensor does all this at VGA resolution whilst storing data and images over standard communications protocols.
Features & Benefits
• 2D, snapshot and image analysis technology
• The systems dimensions are L100mm x W53mm x H38mm
• Features 4 24 V digital inputs
• The output current is 100 mA
• Simple setup - supplied software enables the inspector a plug and play user-friendly device that is configured for application within minutes
• The perfect solution for storing images through the image store capability
• FTP, TCP/IP & Ethernet I/P comms on board
• Powerful inspection tools - scale, rotation, position changes High speed/High-resolution operation
• Switchable multiple configurations
• Emulator mode to test and simulate
• For more specification information of the vision system, please refer to the datasheet
• The systems dimensions are L100mm x W53mm x H38mm
• Features 4 24 V digital inputs
• The output current is 100 mA
• Simple setup - supplied software enables the inspector a plug and play user-friendly device that is configured for application within minutes
• The perfect solution for storing images through the image store capability
• FTP, TCP/IP & Ethernet I/P comms on board
• Powerful inspection tools - scale, rotation, position changes High speed/High-resolution operation
• Switchable multiple configurations
• Emulator mode to test and simulate
• For more specification information of the vision system, please refer to the datasheet
Supplied with
• I40 Vision Sensor
• Power cable
• Ethernet cable
• Bracket
• 6, 10, 16 mm lenses
• Power cable
• Ethernet cable
• Bracket
• 6, 10, 16 mm lenses
Specifications
Attribute | Value |
|---|---|
| Light Source | White Light |
| Imaging Technology | CMOS |
| Vision Color Type | Monochrome |
| Detection Range | 50 mm |
| Resolution | 640 x 480 pixels |
| Output Type | Digital |
| Supply Voltage | 24 V dc |
| Maximum Current | 450 mA |
| Switching Frequency | 40 (Encoder) kHz |
| Number of Images Stored | 30 |
| Terminal Type | M12 |
| Housing Material | Aluminium |
| IP Rating | IP67 |
| Maximum Operating Temperature | +45°C |
| Minimum Operating Temperature | 0°C |
