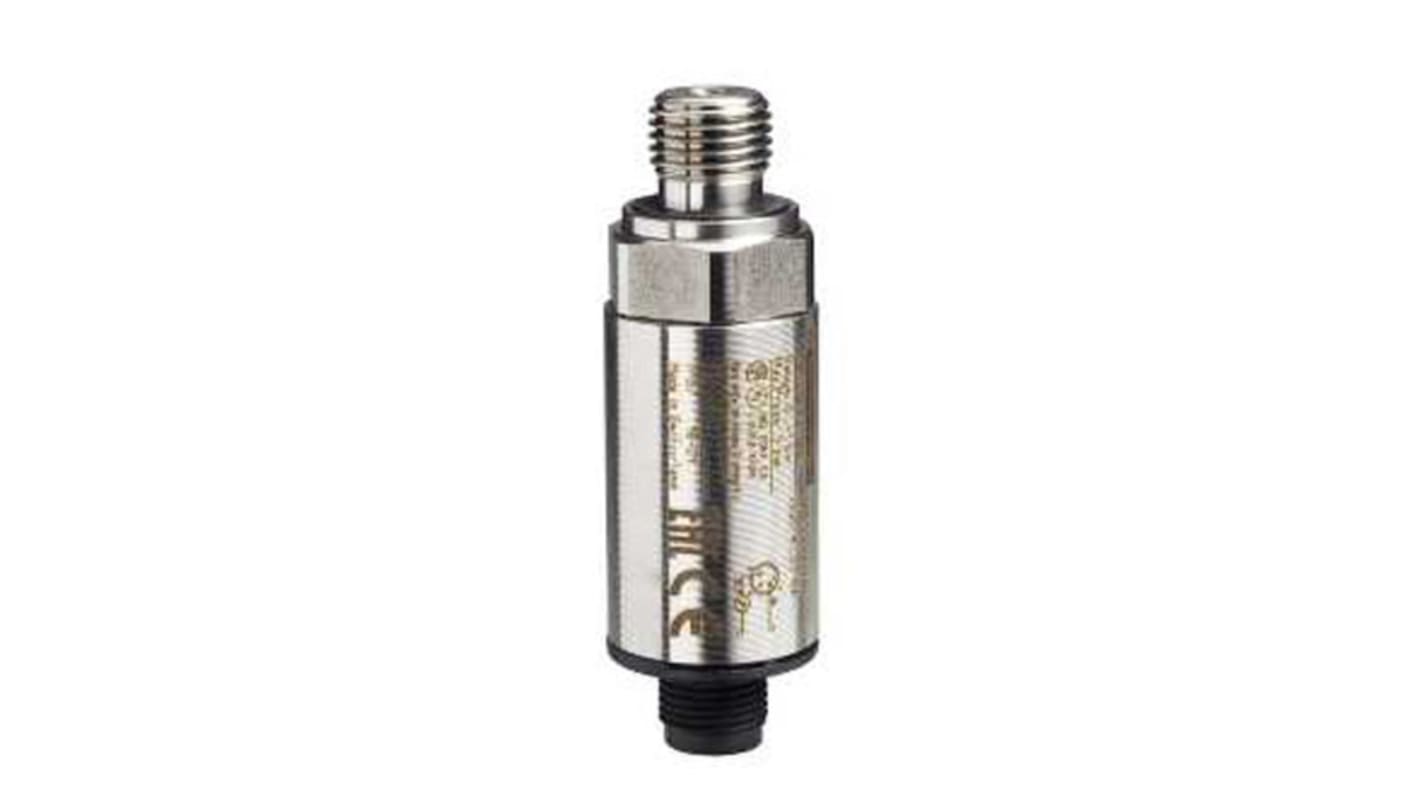

Telemecanique Sensors Pressure Switch, M12 3-Pin Connector
- RS Stock No.:
- 135-3758
- Mfr. Part No.:
- XMLG250D21
- Manufacturer:
- Telemecanique Sensors
1 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP17,618.06
(exc. VAT)
PHP19,732.23
(inc. VAT)
| Units | Per Unit |
| 1 + | PHP17,618.06 |
- RS Stock No.:
- 135-3758
- Mfr. Part No.:
- XMLG250D21
- Manufacturer:
- Telemecanique Sensors
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
OsiSense XMLG Electronic Pressure Sensors
Schneider Electric XMLG pressure transmitters and pressure switches feature a ceramic pressure measuring cell. The deformation caused by the pressure is transmitted to the resistors of a Wheatstone bridge silk-screened on the ceramic. The change in resistance is then processed by the integrated electronics, providing either a digital or analog output signal.
Adjustable differential
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
1 CO snap acting contact
Temperature range: –15 to +85 °C
Enclosure rating: IP66
Specifications
Attribute | Value |
|---|---|
| Connection | M12 3-Pin Connector |
| Suitable Media | Air, Corrosive Fluid, Oil, Water |
| Type | Electronic Pressure Sensor |
| Voltage Rating | 12 V dc, 24V dc |
| Manufacturer Series | OsiSense XM |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +85°C |
| IP Rating | IP66, IP67 |
| Minimum Pressure Setting | 0bar |
| Output Type | Analog |
| Maximum Pressure Setting | 250bar |
| Thread Gender | Male |
| Pressure Setting Range | 0 to 250bar |
