Belden Blue Twinaxial Cable 6.1mm OD Polyvinyl Chloride PVC, 30m

  • RS Stock No. 382-7145
  • Mfr. Part No. 9271 006100
  • Manufacturer Belden
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Belden Proprietary - 9271 Data Cable

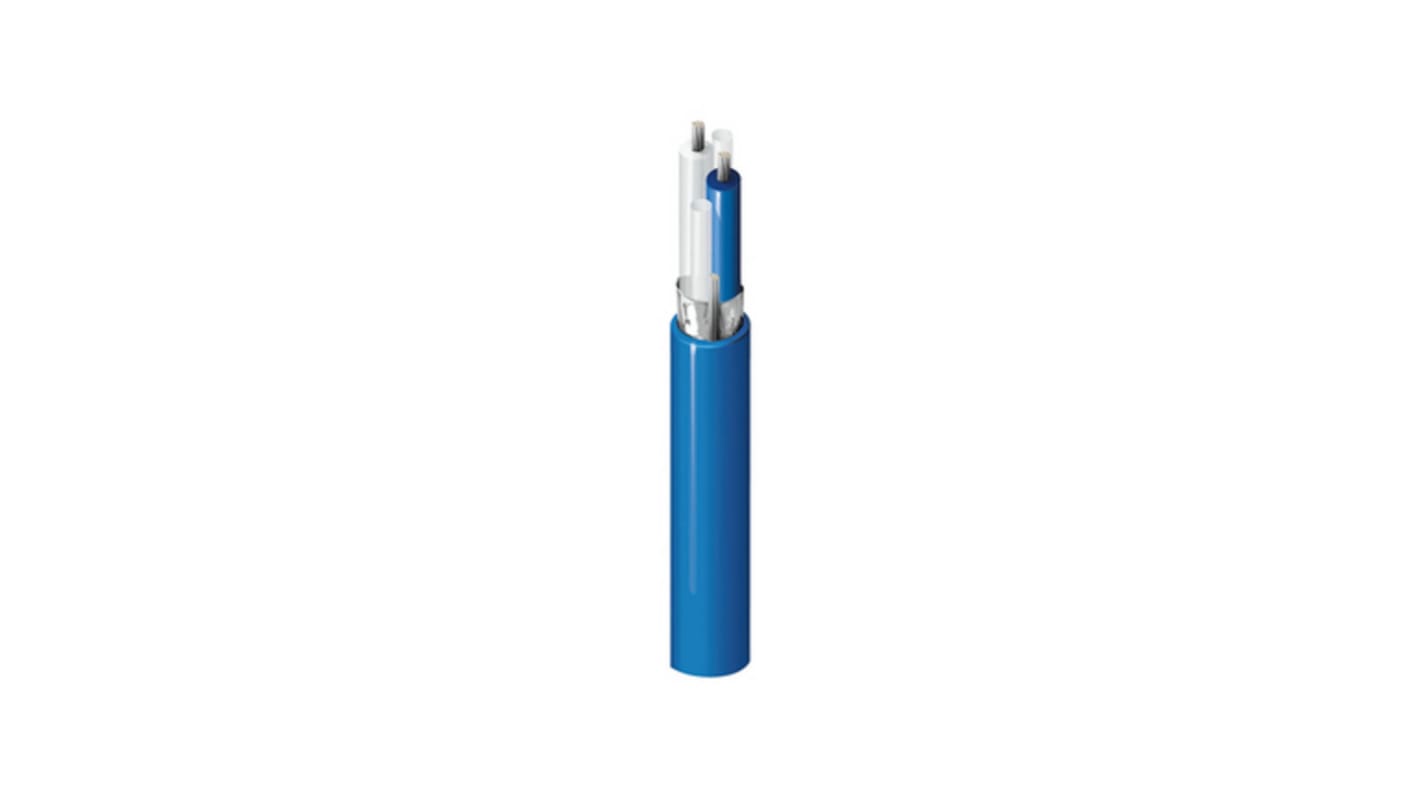

A twinaxial cable with Beldfoil® shield and a stranded tinned copper drainwire under a blue PVC sheath.

Features and Benefits
· Stranded, tinned copper conductors
· UL Flame Test: UL1685 UL Loading

Standards

NEC CN; CEC CM; UL 2092

Specifications
Attribute Value
Sheath Material Polyvinyl Chloride PVC
Sheath Colour Blue
Reel Length 30m
Characteristic Impedance 124 Ω
Attenuation 3.6 dB/100ft @ 50MHz, 5 dB/100ft @ 100MHz, 6.9 dB/100ft @ 200MHz, 9.6 dB/100ft @ 400MHz
Insulation Material PE
Outer Diameter 6.1mm
Capacitance 72.16 pF/m
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Screened/Unscreened Unscreened
Velocity ratio 66%
Conductor Strand Type Stranded
Number of Strands 7
Size of Strands 33 AWG
Conductor Material Tinned Copper
Core Strands 7/33 AWG
Cable Shape Twinaxial
Standards Met Euroclass Eca
Length 30m
26 In Global stock for delivery within 4 - 8 working days
Price 1 Reel of 30 Metre(s)
PHP 6,329.66
(exc. VAT)
PHP 7,089.22
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 +
PHP6,329.66
PHP210.989
*price indicative
