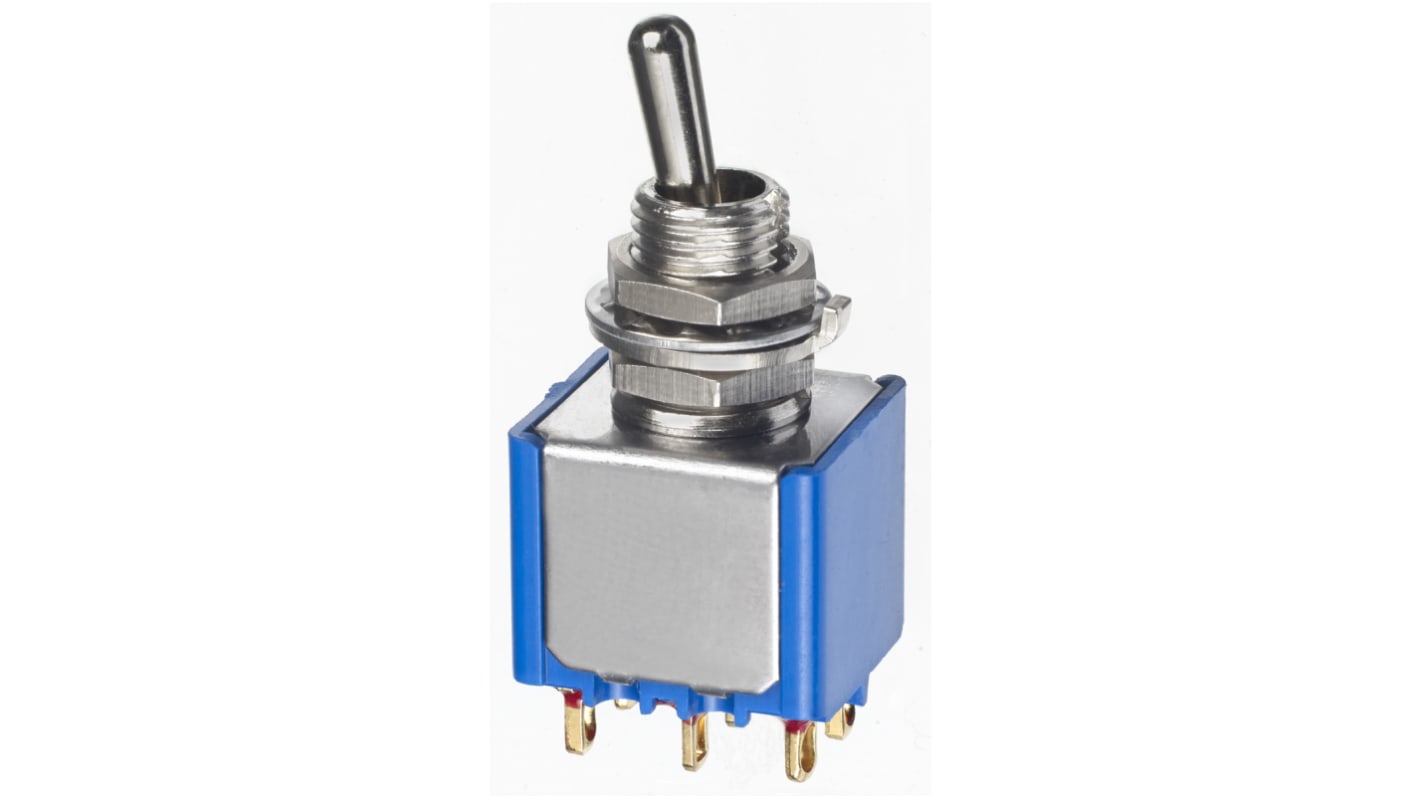

APEM Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Lug Terminal, 20V ac/dc

RS Stock No.:: 123-2420
Mfr. Part No.:: 5647CDB17
Manufacturer:: APEM

APEM Toggle Switch, Panel Mount, (On)-Off-(On), DPDT, Solder Lug Terminal, 20V ac/dc

5 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days

Added

Price Each

PHP606.04

(exc. VAT)

PHP678.76

(inc. VAT)

Units	Per Unit
1 - 49	PHP606.04
50 - 99	PHP494.78
100 - 249	PHP479.48
250 - 499	PHP469.28
500 +	PHP459.08

RS Stock No.:: 123-2420
Mfr. Part No.:: 5647CDB17
Manufacturer:: APEM

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

Apem 5000 Series Short Lever Toggle Switch

Apem 5000 series of short lever toggle switches provide a reliable & robust solution to a wide variety of applications. Contacts on the toggle switches are gold plated, offering unrivaled connectivity and arcing resistance. Thanks to an IP67 rating, the 5000 series can be used within both internal & external applications.

Features and Benefits

Offered in 1 to 4 pole variants.
Various terminal options to ensure your application is covered.
Momentary and latching options available.
Suitable for use within both internal & external applications thanks to an IP67 rating.

Specifications

Attribute	Value
Contact Configuration	DPDT
Switch Operation	(On)-Off-(On)
Contact Current Rating	0.4VA
Mounting Type	Panel Mount
Terminal Type	Solder Lug
Illuminated	No
Panel Cut Out Diameter	6.5mm
Actuator Length	7mm
Actuator Material	Brass
Voltage Rating	20V ac/dc
Panel Cut Out Size	6.5 (Dia.)mm
Contact Resistance	10mΩ
Contact Material	Gold Plated Brass
Standards Met	CECC 96201-007, CSA, UL, UL Recognised, VDE
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Operating Temperature Range	-40 → +85°C
