Sanyo Denki 103H7 Series Hybrid, Single Shaft Stepper Motor, 1.10Nm Torque, 24 V, 1.8°, 56 x 56mm Frame, 6.35mm Shaft
- RS Stock No.:
- 136-6714
- Mfr. Part No.:
- 103H7123-1749
- Manufacturer:
- Sanyo Denki
25 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP3,538.56
(exc. VAT)
PHP3,963.19
(inc. VAT)
Units | Per Unit |
1 + | PHP3,538.56 |
- RS Stock No.:
- 136-6714
- Mfr. Part No.:
- 103H7123-1749
- Manufacturer:
- Sanyo Denki
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
Sanyo Denki 103H7 Series Stepper Motor
Sany Denki range of 103H7 Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered.
Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

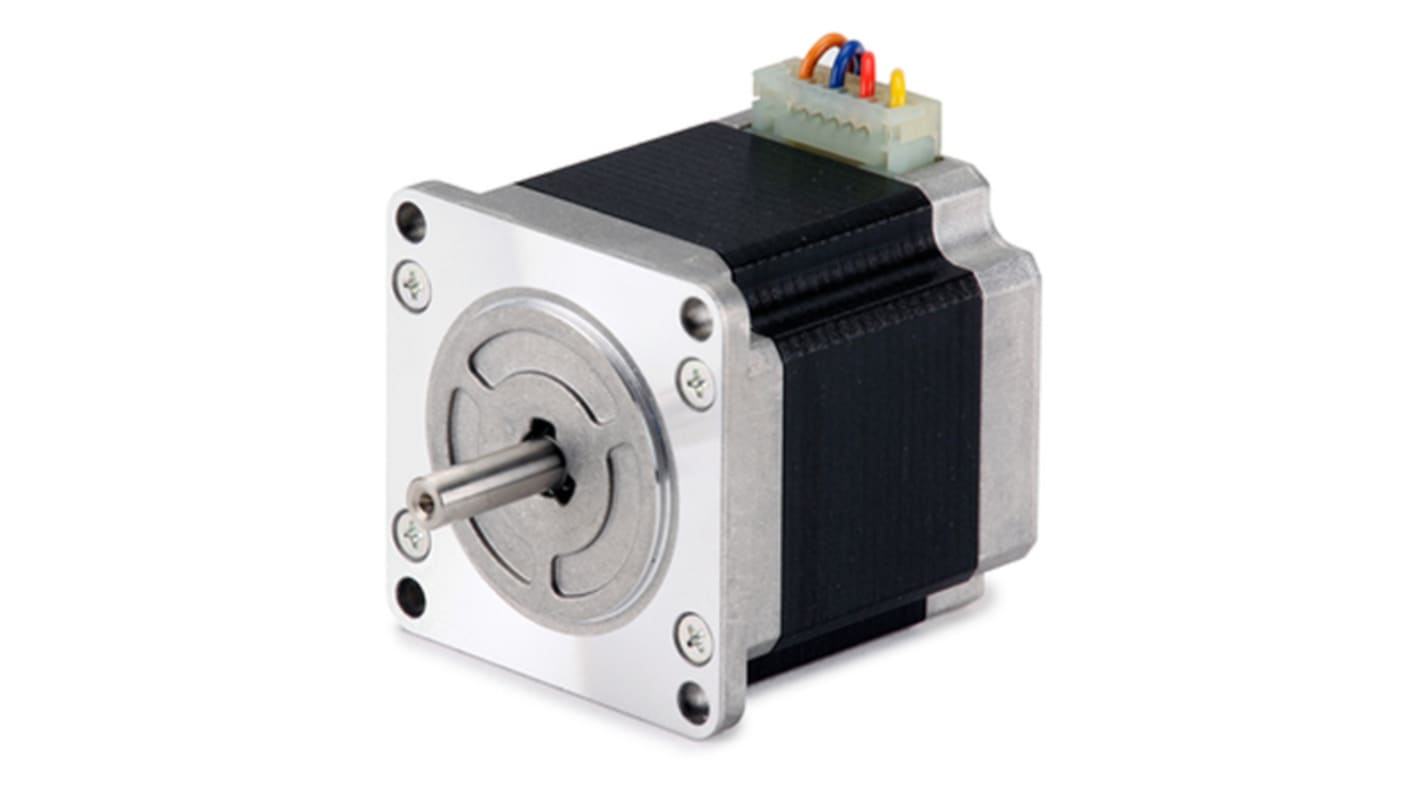

Sanyo Denki Stepper Motor, 4A Current Rating, 2 Phases - SANMOTION 103H7 Series - 103H7123-1749
For the precise positioning of rotating parts on your machines, choose this stepper motor from Sanyo Denki. As it's a hybrid device, it combines a permanent magnet with stator and rotor teeth to give pulsing movements at a step angle of 1.8° for highly precise rotations. Its current rating of 4A means it's suitable for use with low-power equipment. A shaft diameter of 6.35mm makes it a good choice for use with small devices.
Features & Benefits
Low resistance of 0.4Ω per phase for reliable signal transmission
Holding torque of 1.1Nm for a secure grip on connected equipment
Supplied with mounting screws for simple and quick installation
Holding torque of 1.1Nm for a secure grip on connected equipment
Supplied with mounting screws for simple and quick installation
Applications
Telecommunication equipment
Mainframe computers
Printers
Mainframe computers
Printers
How do I maintain this stepper motor?
As this motor is a brushless device, it doesn't have parts that would need replacement on a regular basis. This means it doesn't need any maintenance, saving you time and effort.
How much voltage does this motor need to work?
This stepper motor works with a supply voltage of 24V, making it suitable for use in low-voltage systems.
Sanyo Denki Stepper Motor
Specifications
Attribute | Value |
---|---|
Stepper Motor Type | Hybrid, Single Shaft |
Step Angle | 1.8° |
Holding Torque | 1.10Nm |
Number Of Wires | 4 |
Supply Voltage | 24 V |
Frame Size | 56 x 56mm |
Shaft Diameter | 6.35mm |
Current Rating | 4 A |
Winding Arrangement | Bipolar |
Shaft Length | 20.6mm |
Depth | 56mm |
Resistance Per Phase | 0.4Ω |
Standards Met | CE, UL, TUV, RoHS Compliant |
Series | 103H7 |
Detent Torque | 1000mNm |
