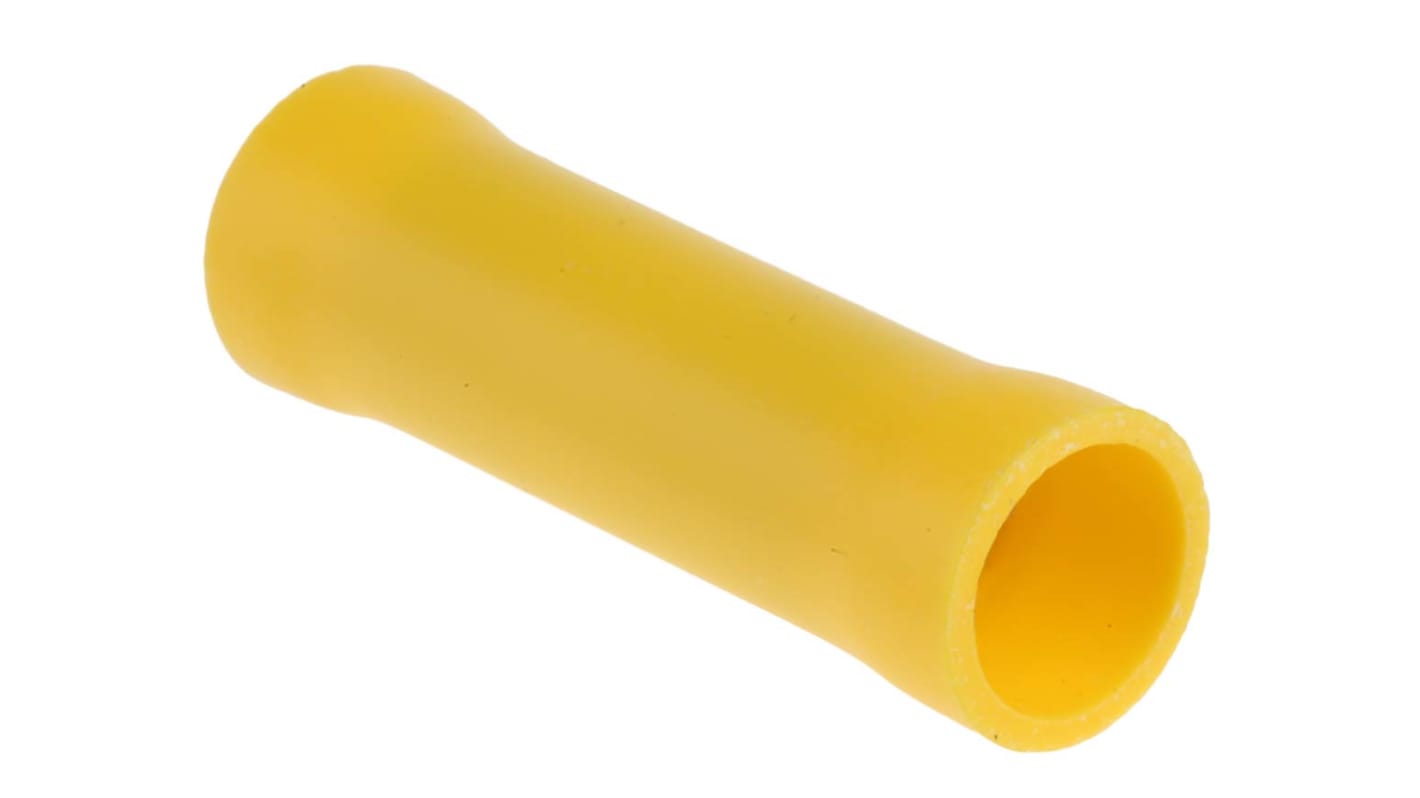

RS PRO Butt Splice Connector, Yellow, Insulated, Tin 12 → 10 AWG


3300 Within 4 working day(s) (Singapore stock)
31900 Within 6 working day(s) (Global stock)
Add to Basket

Price Each (In a Pack of 100)

Was PHP10.474

PHP8.903

(exc. VAT)

PHP9.971

(inc. VAT)

units

Added

RS Stock No.:
534-519
Manufacturer:
RS PRO
COO (Country of Origin):
TW
unitsPer UnitPer Pack*
100 - 400PHP8.903PHP890.30
500 - 2400PHP8.438PHP843.80
2500 - 4900PHP7.916PHP791.60
5000 - 9900PHP7.522PHP752.20
10000 +PHP7.081PHP708.10
*price indicative

RS Pro Insulated Crimp Butt Splice Terminals


A range of insulated crimp butt splice terminals made from copper with flared vinyl or nylon (mini-yellow) insulation. These insulated crimp butt splice wire connectors are colour coded for use with different wire sizes including Mini Yellow 0.2 - 0.5 mm² (stock number 239-4234)


Colour Coding


Mini Yellow 0.2 - 0.5 mm²
Red 0.5 - 1.0 mm²
Blue 1.5 - 2.5 mm²
Yellow 2.5 - 6.5 mm²


The insulated terminals or connectors sleeve is colour coded for easy wire size identification. The colours of the connectors relate to a wire range the terminal can accept. The sizes can be quoted in either CSA (cross-sectional area) or AWG (American Wire Gauge)


• Mini Yellow = 0.2 - 0.5 mm² or 26-22AWG
• Red 0.5 - 1.0 mm² or 22-16AWG
• Blue 1.5 - 2.5 mm² or 16-14AWG
• Yellow 2.5 - 6.5 mm² or 12-10AWG


Features and Benefits:


• Tin plated copper tube
• Wide temperature range -20° C to + 105°C
• High-grade Vinyl or Nylon insulating material (Nylon insulation for mini yellow terminals only)
• Colour coded for easy wire size identification
• Easy to crimp using a ratchet tool.
• Durable and reliable termination
• Extremely cost effective


Typical Applications:


Insulated terminals have been around for many years, they originated from the need for a solderless method to terminate wiring in military equipment. Butt splice crimps are used in a wide range of industrial, commercial and domestic applications. They can be found almost anywhere where an electrical connection is required. Some of the most common are


• Industrial control systems
• Automotive and transportation sector
• Machine building
• Electrical and electronic equipment
• Commercial and domestic appliances


FAQs

Is there a crimp tool that you can use for crimping the butt connectors?
Any good quality ratchet style crimp tool or plier tool designed for butt terminals would suffice. RS PRO offers a range of reliable, cost-effective tools. See typical part number 534-806.

What is the difference between un-insulated and insulated crimp tools?
Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.


RS Pro Range

AttributeValue
Splice TypeButt
Wire Size12 → 10 AWG
Minimum Wire Size mm²4mm²
Maximum Wire Size mm²6mm²
Overall Length24.5mm
Minimum Wire Size AWG12AWG
Diameter5.8mm
InsulationInsulated
Maximum Wire Size AWG10AWG
ColourYellow
Insulation MaterialPVC
Contact MaterialCopper
Contact PlatingTin
Thickness2.3mm
