- RS Stock No.:
- 211-9557
- Mfr. Part No.:
- 3SF1324-1SB21-1BA3
- Manufacturer:
- Siemens
Stock check temporarily unavailable - call for stock availability
Added
Price Each
PHP34,926.41
(exc. VAT)
PHP39,117.58
(inc. VAT)
Units | Per Unit |
1 + | PHP34,926.41 |
- RS Stock No.:
- 211-9557
- Mfr. Part No.:
- 3SF1324-1SB21-1BA3
- Manufacturer:
- Siemens
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

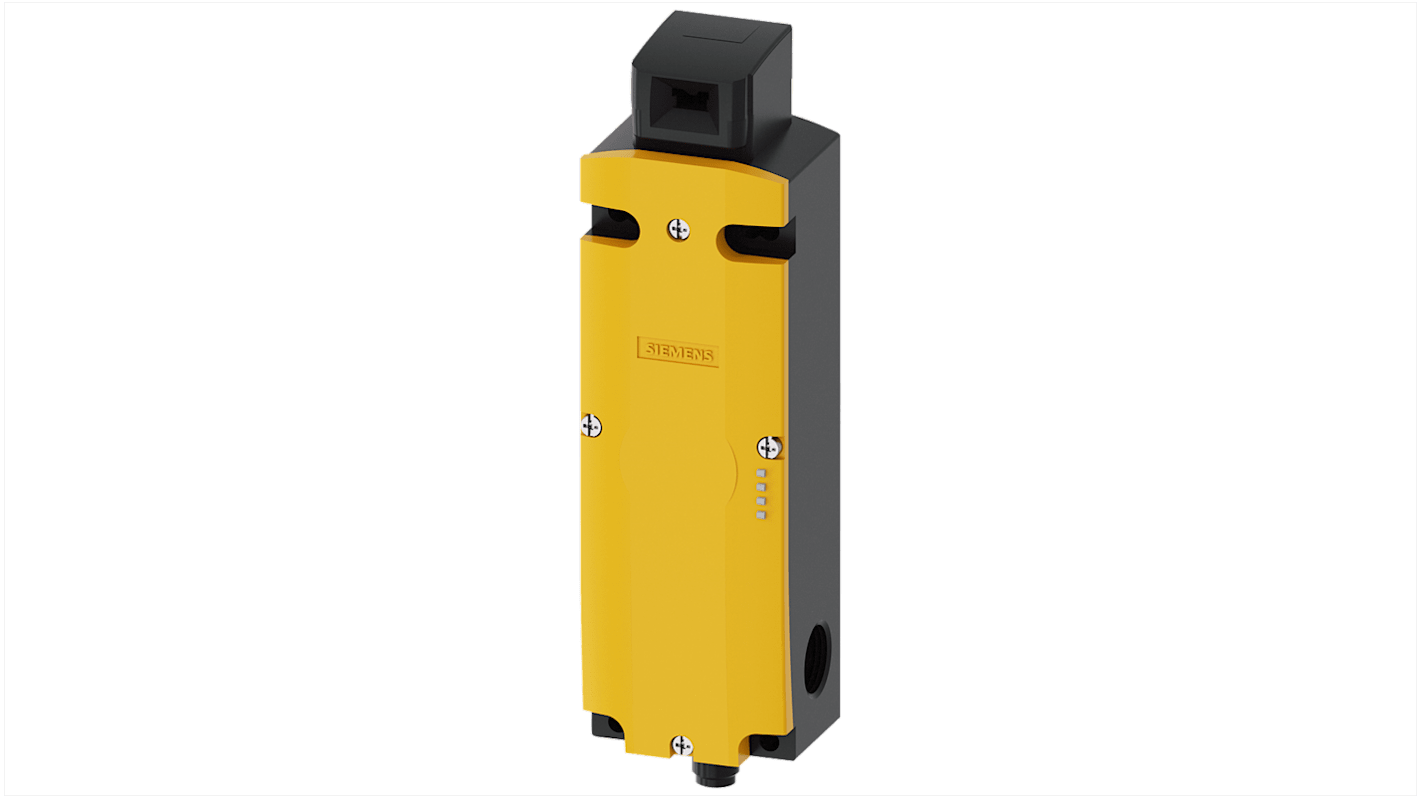

The Siemens Safety position switch with tumbler Locking force 1300 N 5 directions of approaches Plastic enclosure, M12 connector ASIsafe integrated Channel 1=to 1 NC from actuator Channel 2=to 1 NC from actuator Solenoid-locked Magnet voltage 24 V DC/AC Monitoring actuator 2 NC/1 NO Monitoring magnet 2 NC/1 NO The matching separate Actuator 3SE5000-0AV0 must be ordered separately Mechanical safety switches SIRIUS 3SF13 for position monitoring of movable protective devices with direct connection to the AS-interface bus system.
Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation.
Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee strong protection against manipulation.
special design of housing
5 directions of approach
5 directions of approach
Specifications
Attribute | Value |
---|---|
Series | 3SE5 |
Range | SIRIUS |
Normal State Configuration | 2NC/1NO |
