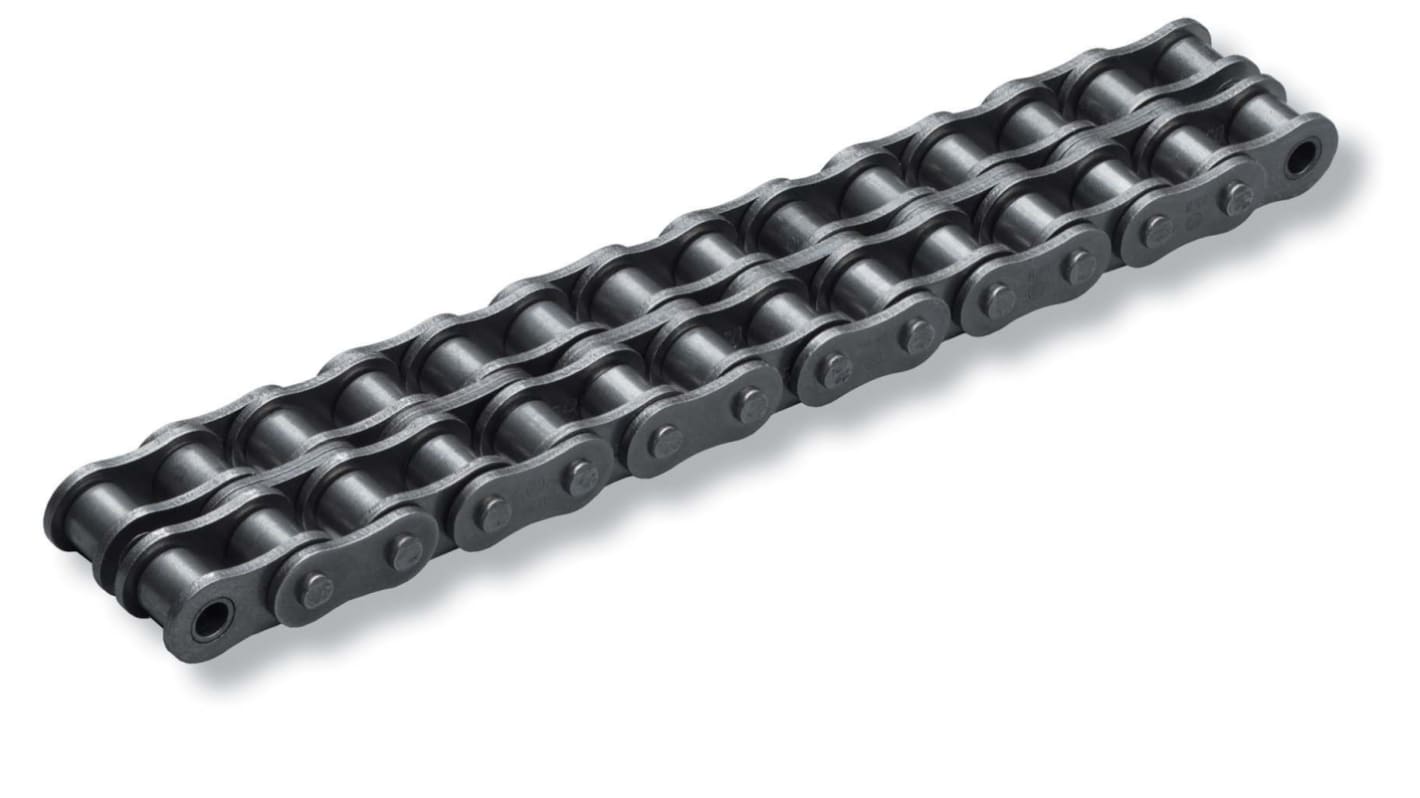

Renold 06B-2 Duplex Roller Chain, 5m, Renold SD (Red Box)
- RS Stock No.:
- 146-3750
- Mfr. Part No.:
- SD06B2X5M
- Manufacturer:
- Renold
13 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP7,430.95
(exc. VAT)
PHP8,322.66
(inc. VAT)
| Units | Per Unit |
| 1 - 4 | PHP7,430.95 |
| 5 + | PHP7,208.01 |
- RS Stock No.:
- 146-3750
- Mfr. Part No.:
- SD06B2X5M
- Manufacturer:
- Renold
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Range of Renold SD economy Duplex roller chain, for standard duty applications. Conforms to European (BS) standards
Chain Standards
European standard chains are covered by DIN8187 and ISO606 standards. There are 3 versions:
• Simplex
• Duplex
• Triplex
Pitch size varies between 4 mm to 114.3 mm, with the chain links having a large pin diameter. The chains therefore have better wear resistance due to the bearing area being of a greater size.
The ISO standard has a simple numbering system:
• The first two digits are the pitch size and are measured in 1/16 s of an inch, for example 08 = 8/16
• “B” indicates European Standard
• The suffix indicates the number of strands in a chain
Specifications
Attribute | Value |
|---|---|
| Chain Type | 06B-2 |
| Pitch | 9.525mm |
| Number of Strands | Duplex |
| Material | Steel |
| Chain Series | Renold SD (Red Box) |
| Length | 5m |
| Plate Height | 8.2mm |
| Roller Diameter | 6.35mm |
| Standard | British/European |
| Weight | 0.8kg/m |
