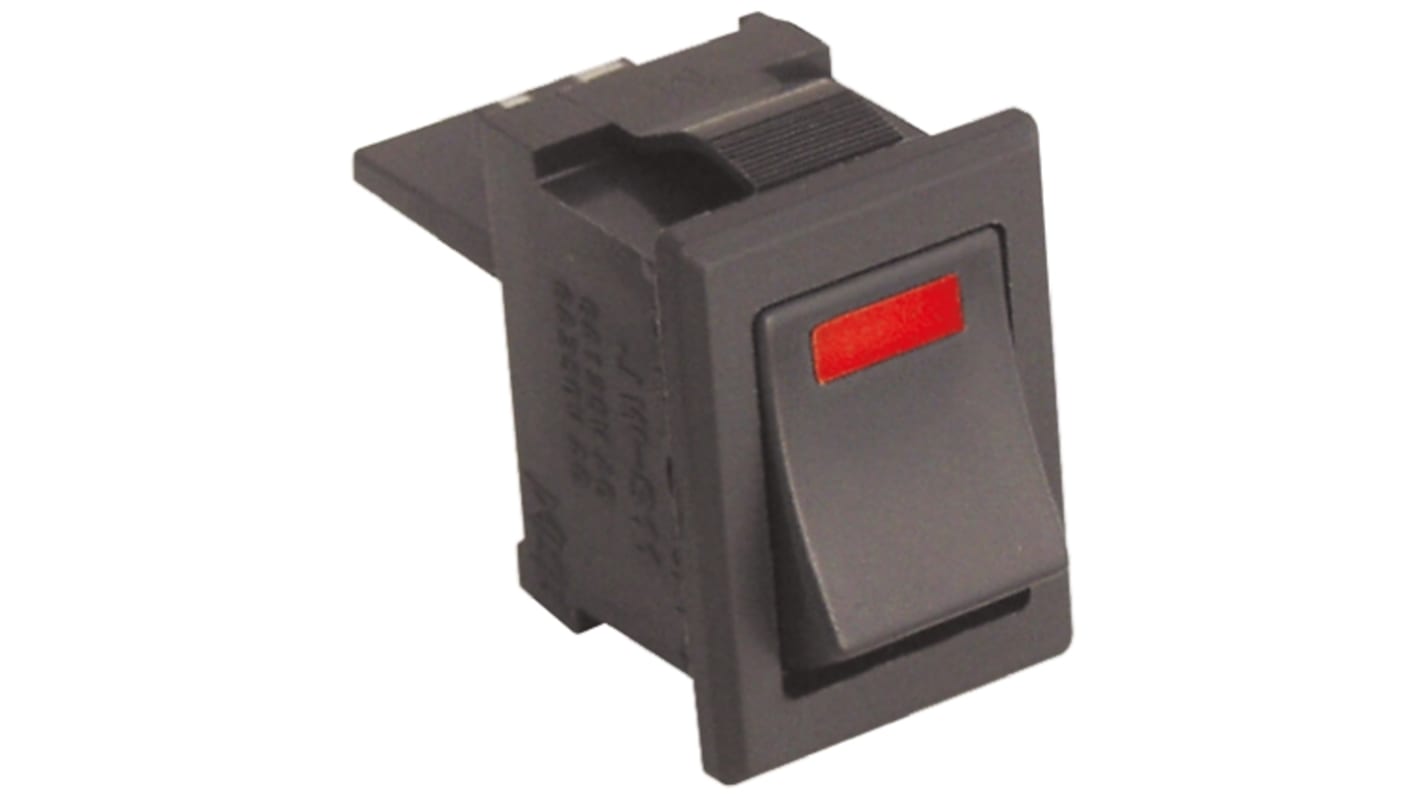

NKK Switches Illuminated SPST, On-None-Off Rocker Switch Panel Mount
- RS Stock No.:
- 428-9156
- Mfr. Part No.:
- JW-S11RKKR
- Manufacturer:
- NKK Switches
56 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
Was PHP198.12
You pay
PHP180.85
(exc. VAT)
PHP202.55
(inc. VAT)
| Units | Per Unit |
| 1 - 4 | PHP180.85 |
| 5 + | PHP148.85 |
- RS Stock No.:
- 428-9156
- Mfr. Part No.:
- JW-S11RKKR
- Manufacturer:
- NKK Switches
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Rocker switch JW series
(low capacity)
15 x 21 mm compact size (switch top face)
One-touch snap-in installation
Moulded material is UL 94V-0 certified with excellent self-extinguishing characteristics
Terminal insert moulding prevents flux penetration and loosening of terminals
Contact distance of at least 3 mm has excellent insulation / withstand voltage characteristics
Two types: partially illuminated and non-illuminated
One-touch snap-in installation
Moulded material is UL 94V-0 certified with excellent self-extinguishing characteristics
Terminal insert moulding prevents flux penetration and loosening of terminals
Contact distance of at least 3 mm has excellent insulation / withstand voltage characteristics
Two types: partially illuminated and non-illuminated
Standards
UL CSA C-UL VDE
Nihon Kaiheiki Ind. Co. Range
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 12.9mm |
| Panel Cut Out Height | 19.2mm |
| Contact Current Rating | 10 A |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect, Solder |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 19.2 x 12.9mm |
| AC Voltage Rating | 125 V, 250V |
| Maximum Operating Temperature | +50°C |
| Mechanical Life | 30000Operations |
| Operating Temperature Range | -25 → +50°C |
| Contact Resistance | 10mΩ |
| Contact Material | Silver |
| Minimum Operating Temperature | -25°C |
| Case Material | Polyamide |
