TE Connectivity SB Series 10A 250 V ac 50 → 60Hz Chassis Mount RFI Filter, with Spade Terminals, Single Phase

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

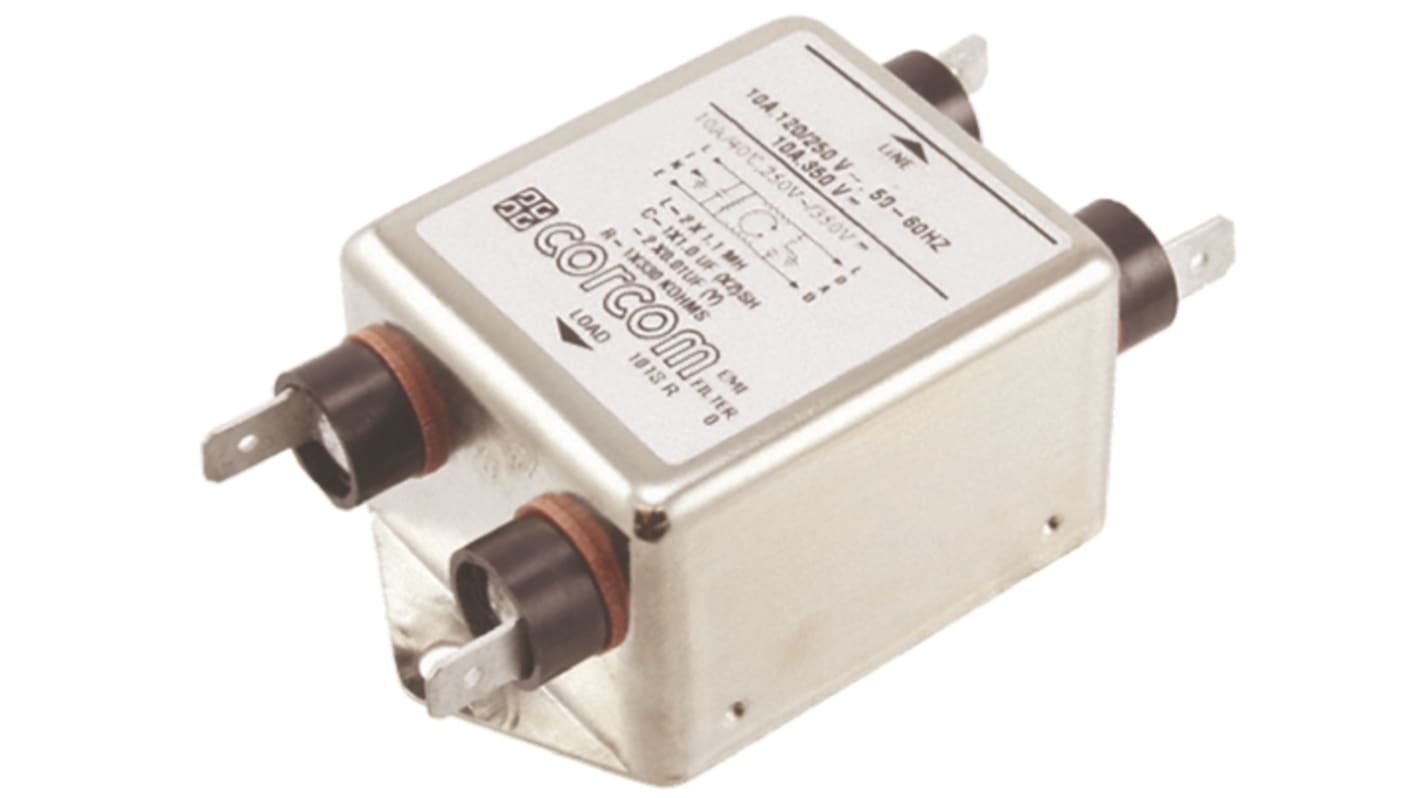

Corcom SB Series High Performance RFI Line Filters

Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.

Corcom SB series of power line filters are an enhanced performance version of the existing B series of RFI line Filters. They are compact and suitable for applications that require wide band RFI suppression. For example, typical applications include computing and accessories, home appliances, exercise equipment, gaming machines, medical equipment, television, audio and video.

Single Staget
30A version half the size of other 30A filters
Low leakage version available that meets current requirements of VDE portable equipment and non-patient care medical equipment
Screw Mounting

Approvals

UL, CSA and VDE

Specifications
Attribute Value
Maximum Current Rating 10A
Maximum Voltage Rating 250 V ac
Mounting Type Chassis Mount
Termination Style Spade
Number of Phases 1
Number of Stages Single Stage
Series SB
Operating Frequency 50 → 60Hz
Length 85.34mm
Depth 46.23mm
Height 32.51mm
Capacitance 1.0014 μF, 5.6 nF
Inductance 1.1 mH
Dimensions 85.34 x 46.23 x 35.51mm
Leakage Current 0.36 mA
Minimum Operating Temperature -10°C
Maximum Operating Temperature +40°C
Standards Met UL 1283
