![]() RoHS Certificate of Compliance EU Directives 2011/65/EU and 2015/863 restrict the use of the 10 substances below in the manufacture of specified types of electrical equipment. The restricted substances and maximum allowed concentrations in the homogenous material are, by weight:Whilst this restriction does not legally apply to components, it is recognised that component “compliance” is relevant to many customers. RS definition of RoHS Compliance:
The supplier of the item listed below has informed RS Components that the product is “RoHS Compliant”. RS Components has taken all reasonable steps to confirm this statement. Information relates only to products sold on or after the date of this certificate. Compliant product details |
|||||||||||||||||||||||
Order Code | 408-4002 | ||||||||||||||||||||||

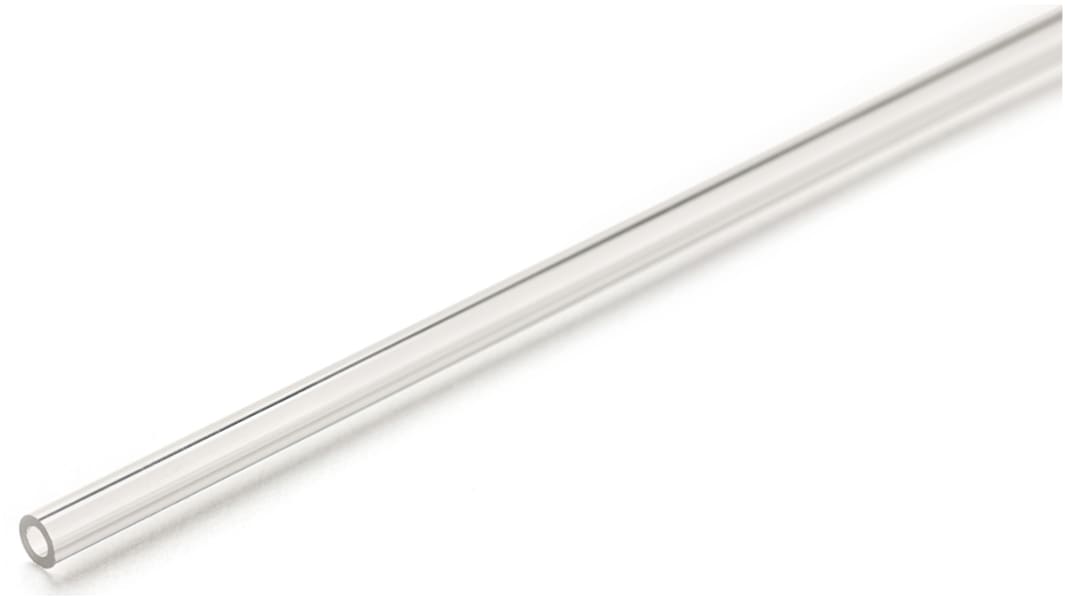

Description | Clear Round Acrylic Tube, 1m x 32mm OD x 26mm ID | ||||||||||||||||||||||
Manufacturer/Brand Name | RS PRO | ||||||||||||||||||||||
Manufacturer Part No. | |||||||||||||||||||||||
408-4002 | |
Clear Round Acrylic Tube, 1m x 32mm OD x 26mm ID | |
RS PRO | |
Date | Dec 11, 2019 |
Extruded thermoplastic acrylic tubes with excellent optical properties
Good resistance to most inorganic chemicals, oils, dilute acids/alkalis and weathering
Attribute | Value |
---|---|
Colour | Clear |
Length | 1m |
Material | Acrylic |
Tube Form | Round |
Inner Diameter | 26mm |
Outer Diameter | 32mm |
Density | 1.18g/cm³ |
Water Absorption | 0% |
Maximum Operating Temperature | +70°C |
Hardness | M 90 Rockwell |
Tensile Strength | 60 MPa |
Elongation | 5% |
