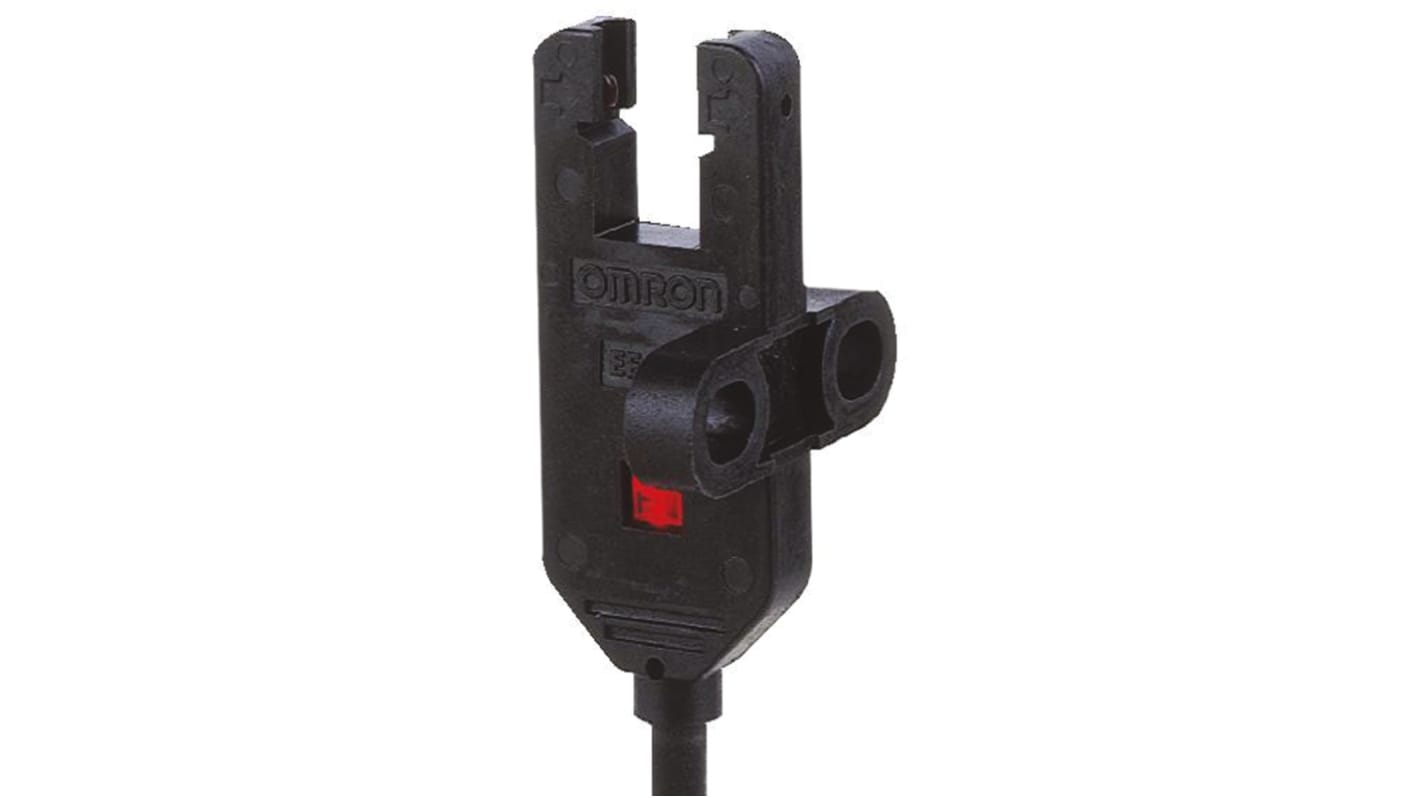

5mm Infrared Sensor, NPN, IP60

  • RS Stock No. 821-0151
  • Mfr. Part No. EE-SX772
  • Manufacturer Omron
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

EE-SX77/87 Photomicrosensor Proximity Switch

The EE-SX77/87 photomicrosensors series offer a slim, compact alternative proximity switch with a wide operating voltage of 5 to 24 Vdc. An indicator light visible from both sides makes operation monitoring easier and some models offer an incident light. Various models are available in both Light-On and Dark-On.

5 mm slot width
Wide supply voltage range of 5 to 24 Vdc
Low current consumption
Operating temperature range of -25 to +55 °C
Prewired 2 meter cable

Standards

IEC60529 IP60

Specifications
Attribute Value
Output Type NPN
Light Source GaAs Infrared LED
IP Rating IP60
Housing Material Polybutylene Phthalate
3 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 2,779.60
(exc. VAT)
PHP 3,113.15
(inc. VAT)
units
Per Unit
1 +
PHP2,779.60
