FLUKE 9040/UK Phase Rotation Tester CAT III 600V, CAT IV 300V LCD CAT III 600 V, CAT IV 300 V 400Hz 700V, Model 9040

  • RS Stock No. 513-1828
  • Mfr. Part No. FLUKE 9040/UK
  • Manufacturer Fluke
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

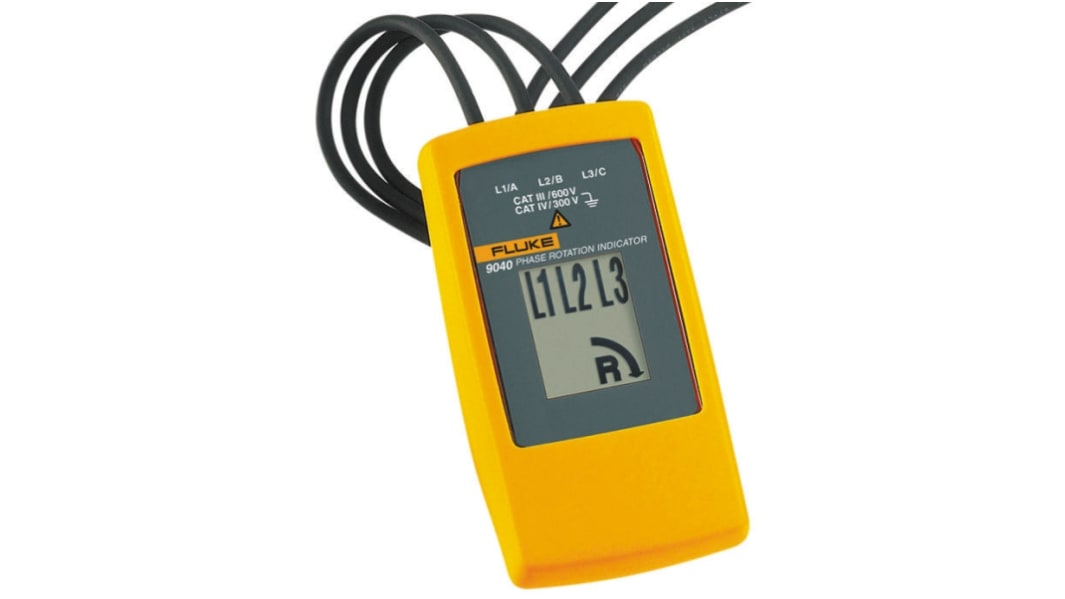

Fluke 9040

Indication of the three phases via LCD
Indication of the phase rotation direction via LCD
Swift determination of the phase sequence in three-phase networks
Voltage and frequency range suitable for industrial systems
LC-display with good visibility in bright areas (i.e. outdoor)
Non-Fused test probes (500mA 1000V fast acting)

Supplied with

3 Non-Fused test probes, 3 crocodile clips, instruction manual.

Fluke Phase Rotation Indicator

The Fluke phase rotation indicator has a voltage range of 40V to 700V and frequency range of 15Hz to 400Hz. It shows a clear indication of three-phase systems and the phase rotation direction to determine correct connections. This allows rapid determination of phase sequence and frequency range, suitable for commercial and industrial applications. It includes test probes with a variable clamping range for safe contact, also in sockets.
Supplied with
• 3 fused test probes, 1000 V CAT III
• 3 alligator clips, 1000 V CAT III/600 V CAT IV
• Users Manual

Features and Benefits

• 3-phase indication
• Continuous operating timer
• Indication of phase rotation
• Clear LCD display
• No battery required
• Operating temperature ranges between 0°C and 40°C

Applications

• Feed motors
• Drives
• Electrical systems

Certifications

• IP40 rated
• EN 61010
• EN 61557-7
• CAT III 600V safety rated

Caution

The above unit should be checked for correct operation using a known voltage before and after use.

Specifications
Attribute Value
Connection Type Test Probe
Overvoltage Category CAT III 600V, CAT IV 300V
Display Type LCD
Safety Category CAT III 600 V, CAT IV 300 V
Current Consumption 1mA
Dimensions 61 x 27 x 124mm
Weight 200g
Height 124mm
Length 61mm
Maximum Frequency 400Hz
Minimum Voltage 40V
Safety Category Level CAT III, CAT IV
Minimum Operating Temperature 0°C
Width 27mm
Minimum Frequency 15 Hz
Maximum Operating Temperature +40°C
Model Number p 9040
Maximum Voltage 700V
Safety Category Voltage 300 V, 600 V
50 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 20,746.00
(exc. VAT)
PHP 23,235.52
(inc. VAT)
units
Per Unit
1 +
PHP20,746.00
