SPST Momentary Pendant Switch, 400 mA @ 32 V ac

RS Stock No.:: 797-6676
Mfr. Part No.:: ISR3SAD500107
Manufacturer:: APEM

SPST Momentary Pendant Switch, 400 mA @ 32 V ac

View this category

10 In Global stock for delivery NCR Plus within 10 working day(s), rest of PH within 14 working days

Added

View basket

Price Each

PHP5,733.67

(exc. VAT)

PHP6,421.71

(inc. VAT)

Units	Per Unit
1 - 4	PHP5,733.67
5 - 9	PHP5,561.66
10 - 24	PHP5,394.81
25 - 49	PHP5,274.98
50 +	PHP5,160.31

RS Stock No.:: 797-6676
Mfr. Part No.:: ISR3SAD500107
Manufacturer:: APEM

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: FR

Product Details

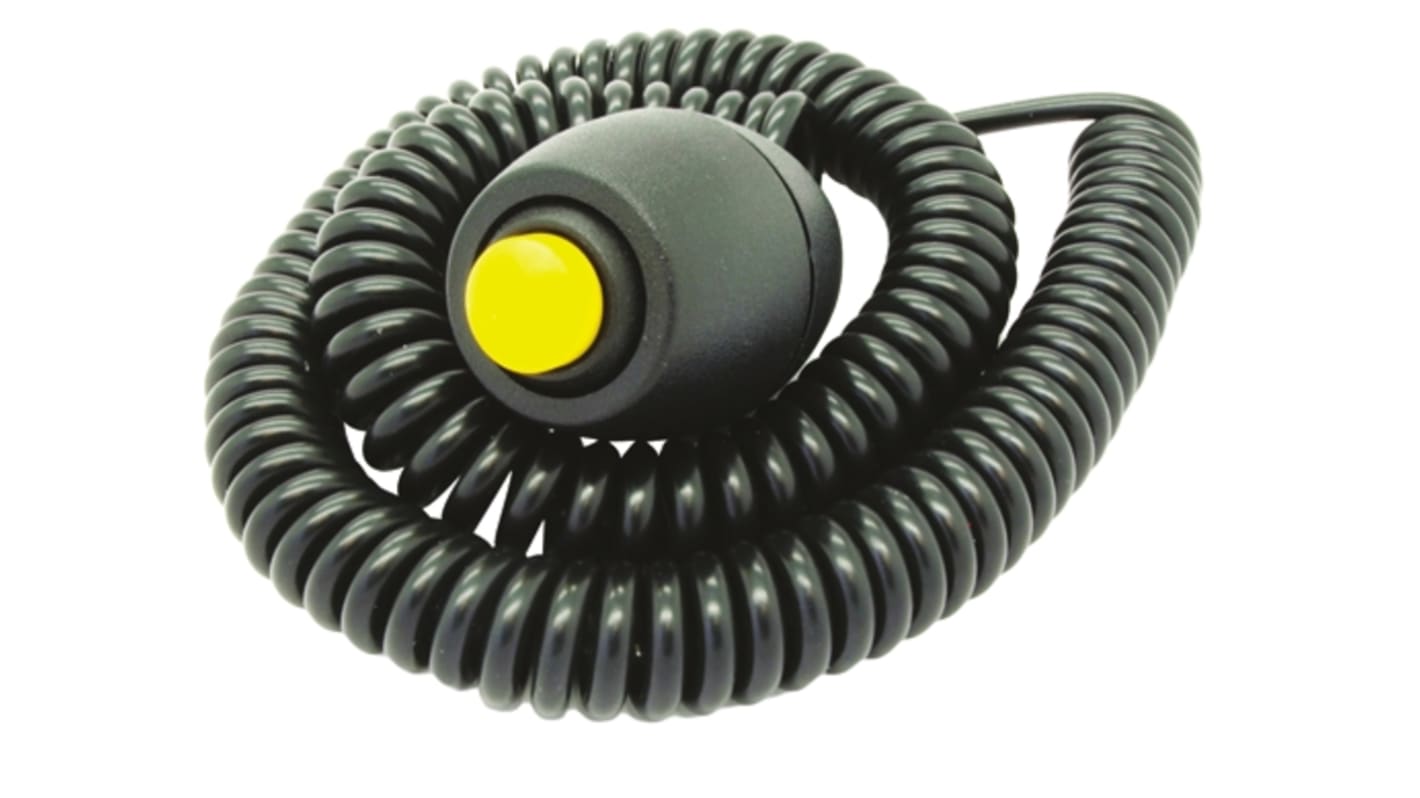

Pendant Switch (IP67)

IP 67 pendant switch supplied with coiled cord and 3.5mm jack plug.
Simple, attractive, reliable design (Min. electrical life 500,000 cycles)
Lead length 0.5m relaxed, 2m under light tension
Suitable for use in numerous applications including, push to talk applications, emergency (eg nurse call), light control, activation (eg snap-shot), home automation etc
Max. current/voltage rating with resistive load: 400mA @ 32Vac, 100mA @ 50Vdc
Normally open contacts
For pendant control stations see typically, stock no 251-2561

Pendant Switch

Specifications

Attribute	Value
Contact Configuration	SPST
Switch Operation	Momentary
Lead Length	0.5m
IP Rating	IP67
Contact Current Rating	400 mA @ 32 V ac
Terminal Type	3.5mm Stereo Plug
Contact Resistance	50mΩ
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Contact Material	Gold Plated Silver
Operating Temperature Range	-40 → +85°C
