ALPHA6/4M/FMEM/SMAM/S/S/7 Siretta - 2G (GSM/GPRS), GPS Multi-Band Antenna, FME, SMA

  • RS Stock No. 124-8667
  • Mfr. Part No. ALPHA6/4M/FMEM/SMAM/S/S/7
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

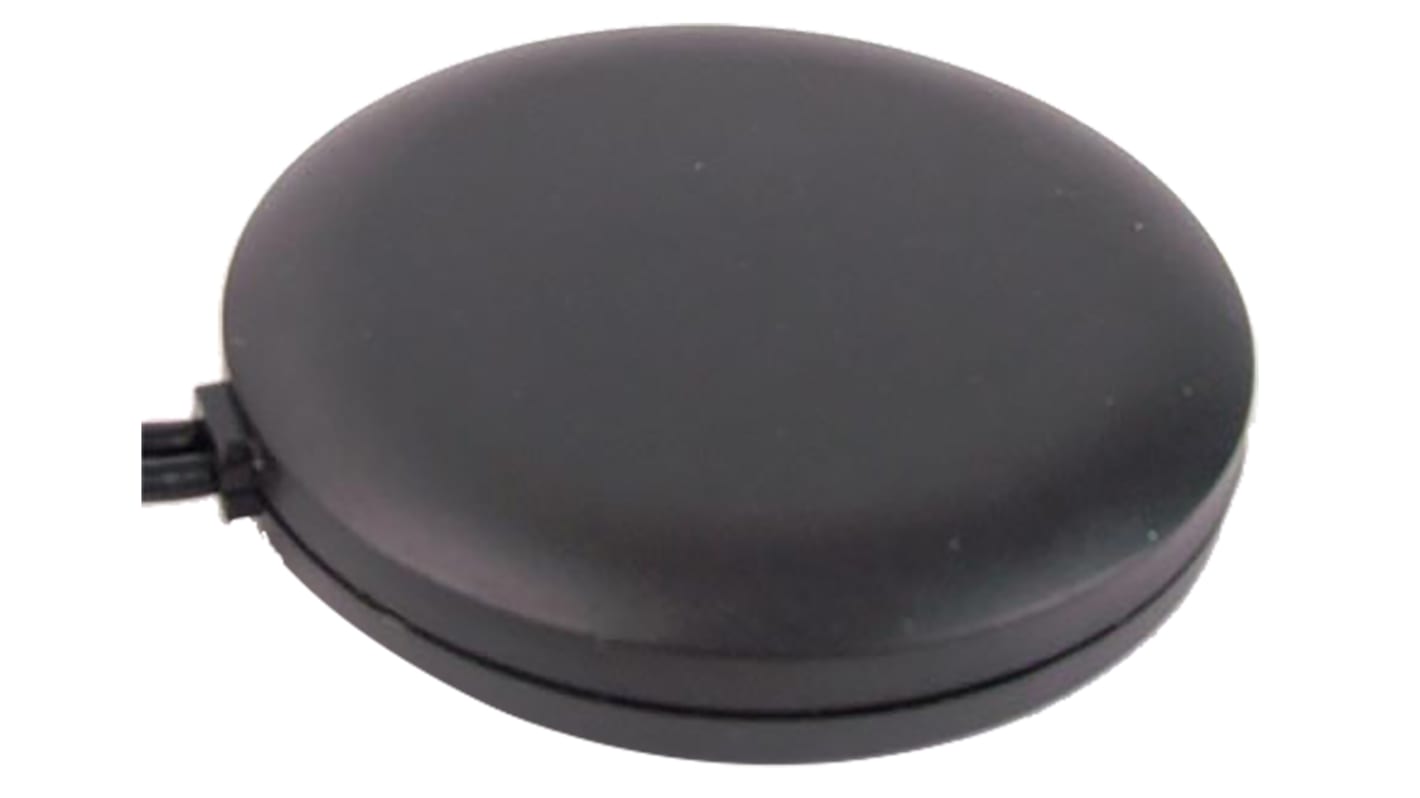

ALPHA 6 Puck Quad Band GSM/GPRS & GPS Antenna, Siretta

The ALPHA 6 Puck Antenna from Siretta combines both a quad band GSM/GPRS and a quad band GPS antenna in one compact package. It also benefits from an easy peel adhesive base — ideal for most surfaces and damage resistant. The antenna can be used in both indoor and outdoor environments and is ideal for tracking and location based applications.

Features & Benefits of the ALPHA 6 Puck Antenna
•RG174 coaxial cable
•71 mm x 14 mm
•Moisture proof
•Vibration resistant
•Drop shock
•Extreme temperature endurant
•Waterproof
•-40° C to +85° C operating temperature range
•50 ohm impedance
•GSM peak gain: 2 dBi@900 MHz, 1dBi@1800 MHz
•GPS peak gain: 28 dBi
•850, 900, 1800, 1900 MHz GSM/GPRS
•1575.42 MHz GPS

Multi-band Antennas, Siretta

Specifications
Attribute Value
RF Protocols GPS, 2G (GSM/GPRS)
Internal/External External
Antenna Physical Form Puck
Supported Frequency Bands 850 (Quad Band GSM/GPRS) MHz, 900 (Quad Band GSM/GPRS) MHz, 1575.42 (GPS) MHz, 1800 (Quad Band GSM/GPRS) MHz, 1900 (Quad Band GSM/GPRS) MHz
Antenna Mounting Type Adhesive
Connector Type FME, SMA
Includes Lead Yes
Gain 2dBi
Lead Length 4m
Connector Gender Male
Antenna Directivity Omnidirectional
Series ALPHA 6
28 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 1,933.39
(exc. VAT)
PHP 2,165.40
(inc. VAT)
units
Per Unit
1 - 9
PHP1,933.39
10 +
PHP1,795.25
