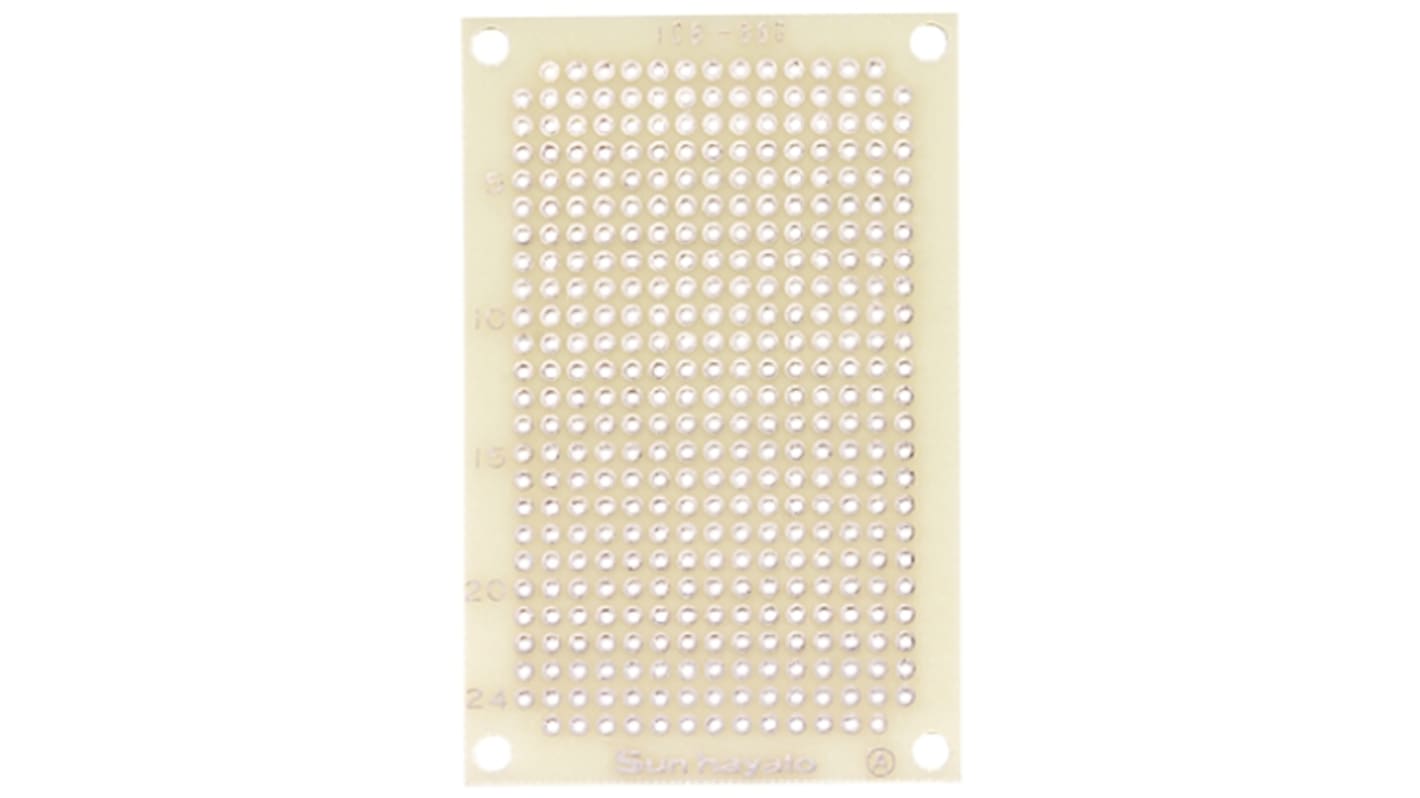

Sunhayato Single Sided Matrix Board FR4 1mm Holes, 2.54 x 2.54mm Pitch, 72 x 47 x 1.2mm
- RS Stock No.:
- 354-9126
- Mfr. Part No.:
- ICB-88G
- Manufacturer:
- Sunhayato
11 In PH stock for Delivery NCR Plus within 2 working days, rest of PH within 7 working days
18 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
250 In Global stock for delivery. NCR Plus within 10 working day(s), rest of PH within 14 working days
Added
Price Each
PHP170.97
(exc. VAT)
PHP191.49
(inc. VAT)
| Units | Per Unit |
| 1 - 19 | PHP170.97 |
| 20 - 99 | PHP167.56 |
| 100 + | PHP137.90 |
- RS Stock No.:
- 354-9126
- Mfr. Part No.:
- ICB-88G
- Manufacturer:
- Sunhayato
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
Compact Universal Board
SEG type is the optimum common earth type for high-frequency circuits
2.54 mm pitch, board installation hole Ø 4 → 3.2
2.54 mm pitch, board installation hole Ø 4 → 3.2
Sunhayato Range
Specifications
Attribute | Value |
|---|---|
| Number of Sides | 1 |
| Hole Pitch | 2.54 x 2.54mm |
| Dimensions | 72 x 47 x 1.2mm |
| Length | 72mm |
| Width | 47mm |
| Thickness | 1.2mm |
| Base Material | Epoxy Glass Fabric Laminate |
| Hole Diameter | 1mm |
| FR Material Grade | FR4 |
