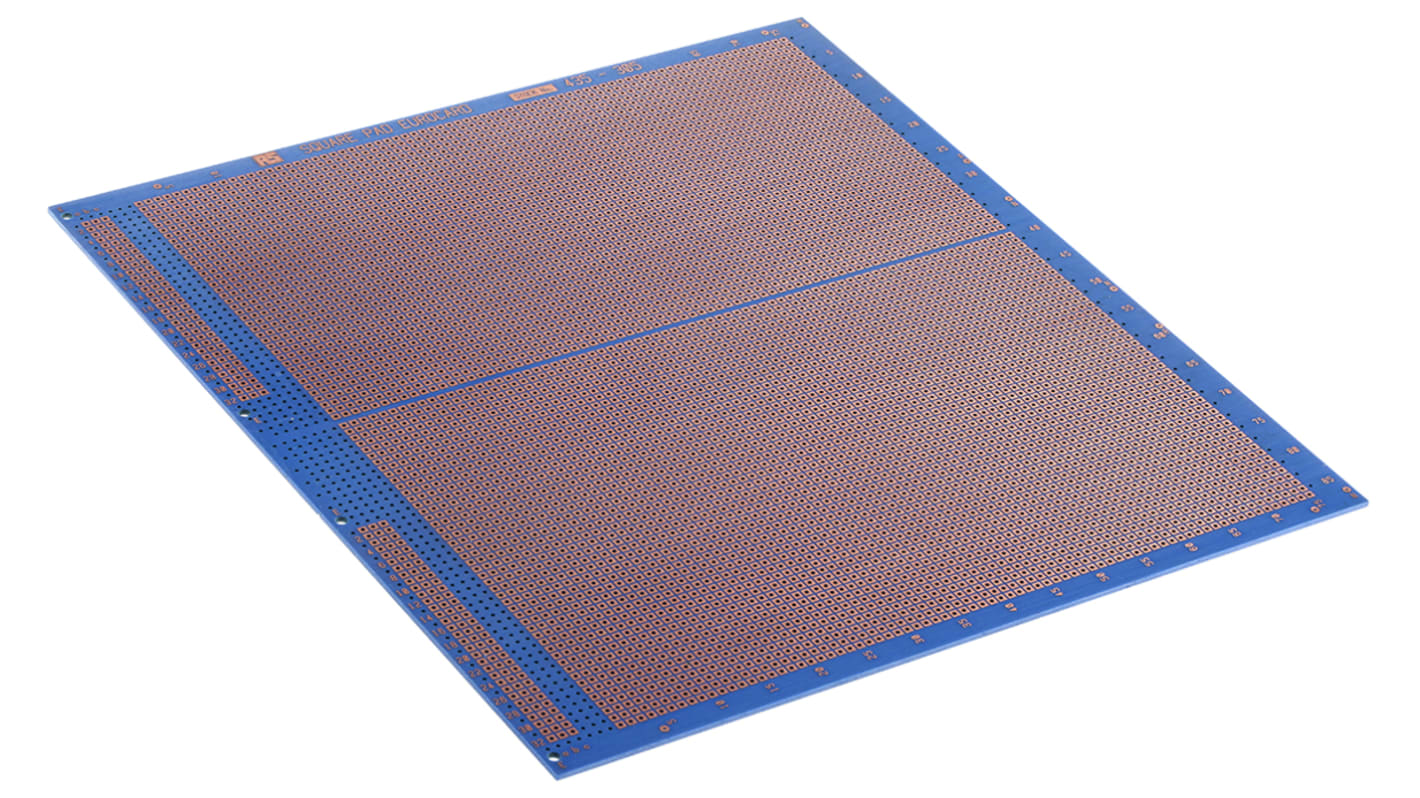

Vero Technologies Single Sided Matrix Board FR4 With 75 x 86 1.02mm Holes, 2.54 x 2.54mm Pitch, 233.4 x 220 x 1.6mm

RS Stock No.:: 435-305
Mfr. Part No.:: 03-27557
Manufacturer:: Vero Technologies

Vero Technologies Single Sided Matrix Board FR4 With 75 x 86 1.02mm Holes, 2.54 x 2.54mm Pitch, 233.4 x 220 x 1.6mm

Temporarily out of stock - back order for despatch 10/05/2024, delivery within 10 working days from desptach date

Added

Price Each

PHP6,461.10

(exc. VAT)

PHP7,236.43

(inc. VAT)

Units	Per Unit
1 - 9	PHP6,461.10
10 - 39	PHP6,267.28
40 +	PHP6,079.27

RS Stock No.:: 435-305
Mfr. Part No.:: 03-27557
Manufacturer:: Vero Technologies

Technical data sheets

Datasheet - 03-27557

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Square Pad PCB

Recommended for wire-wrapping applications
Epoxy glass - CEM 30
1.6mm thick, copper-clad
Single sided
Hole pitch 2.54mm (0.1in)
Hole dia 1.0mm

DIN Type Matrixboard

Matrix boards with 1mm holes on a 2.54mm pitch.

Specifications

Attribute	Value
Number of Sides	1
Hole Pitch	2.54 x 2.54mm
Dimensions	233.4 x 220 x 1.6mm
Length	233.4mm
Width	220mm
Thickness	1.6mm
Base Material	Epoxy Glass Fabric Laminate
Hole Diameter	1.02mm
FR Material Grade	FR4
Hole Layout	75 x 86
Connection	DIN 41612
