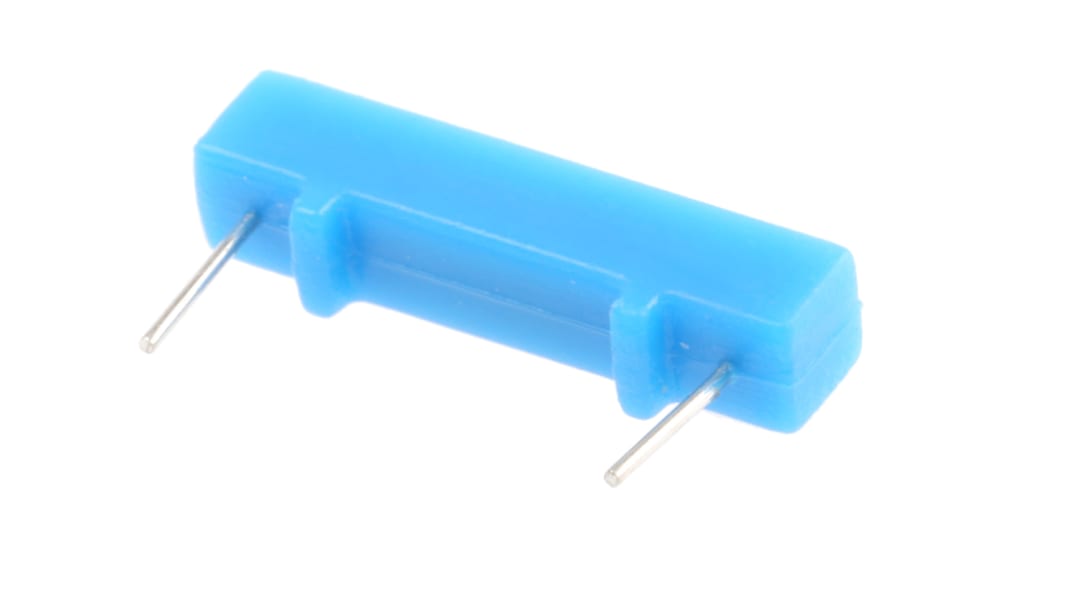

Assemtech Rectangular Reed Switch, NO, 24V, 100mA
- RS Stock No.:
- 361-4977
- Mfr. Part No.:
- S1325
- Manufacturer:
- Assemtech
Temporarily out of stock - back order for despatch 24/10/2024, delivery within 10 working days from desptach date
Added
Price Each
PHP168.72
(exc. VAT)
PHP188.97
(inc. VAT)
| Units | Per Unit |
| 1 - 49 | PHP168.72 |
| 50 - 199 | PHP163.66 |
| 200 + | PHP158.74 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 361-4977
- Mfr. Part No.:
- S1325
- Manufacturer:
- Assemtech
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Fully Encapsulated
Contact Form A - Normally open
24Vac and 70Vac version available
Operating temperature range: -20 to +70°C (24V); -25 to +70°C (70V)
Pin pitch 12mm
Contact resistance 200mΩ (24V); 150mΩ (70V)
24Vac and 70Vac version available
Operating temperature range: -20 to +70°C (24V); -25 to +70°C (70V)
Pin pitch 12mm
Contact resistance 200mΩ (24V); 150mΩ (70V)
Specifications
Attribute | Value |
|---|---|
| Switch Shape | Rectangular |
| Normal State Configuration | NO |
| Terminal Type | PCB Pin |
| Maximum Current | 100mA |
| Maximum AC Voltage | 24V |
| Contact Resistance | 200mΩ |
| Total Length | 14.8mm |
| Length | 14.8mm |
| Minimum Operating Temperature | -25°C |
| Dimensions | 14.8 x 3.2 x 3.2mm |
| Maximum Operating Temperature | +70°C |
| Width | 3.2mm |
| Depth | 3.2mm |
