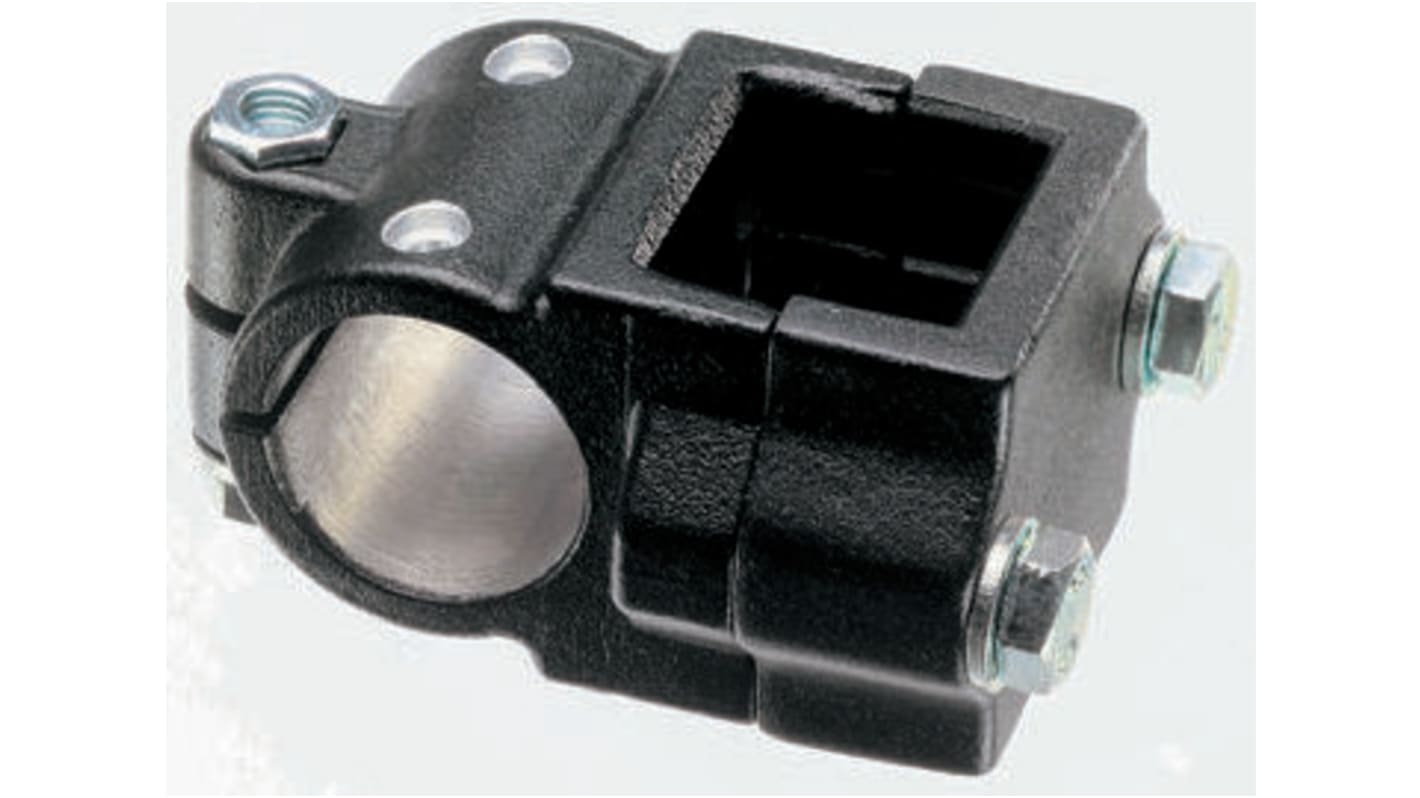

Rose+Krieger KVR Die Cast Aluminium Guide Element, 40 mm OD tube

  • RS Stock No. 418-1664
  • Mfr. Part No. 14006100
  • Manufacturer Rose+Krieger
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Type KVR

Connects square tube at 90° to linear unit

//media.rs-online.com/t_line/L418165-01.gif
//media.rs-online.com/t_line/LD418165-01.gif

Standards

DIN 2391/93; DIN 59411

Guide Elements

All these elements are:

Clamped by screws
Fitted with guide bush
Fixed by screw attachment to linear unit drive nut

Specifications
Attribute Value
Component Type Guide Element
Product Family Rose+Krieger
Product System KVR
Fits Strut Profile 40 mm
Diameter 40 mm
Material Die Cast Aluminium
1 In Global stock for delivery within 4 - 8 working days
Price Each
PHP 4,178.38
(exc. VAT)
PHP 4,679.79
(inc. VAT)
units
Per Unit
1 - 4
PHP4,178.38
5 - 9
PHP3,966.99
10 +
PHP3,808.33
