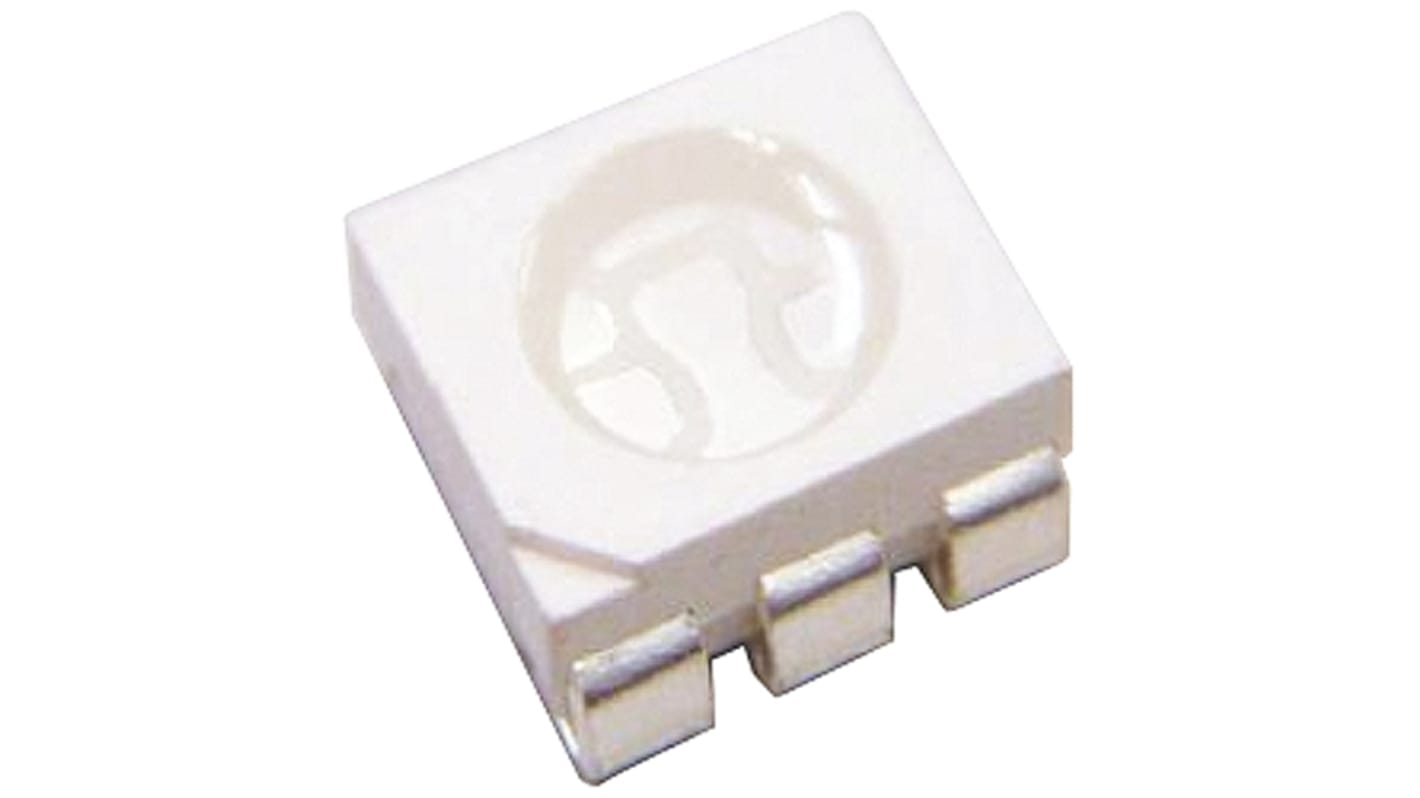

Cree CLP6C-FKB-CKNPRGJBB7A363, CLP6C-FKB 540 nm 3 RGB LED, PLCC 6 SMD package

  • RS Stock No. 810-7187
  • Mfr. Part No. CLP6C-FKB-CKNPRGJBB7A363
  • Manufacturer Cree
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Cree CLP6 Series LEDs

The CLP6 series of SMD LEDs, from Cree, are packaged in the industry standard PLCC6 package. These LEDs have high reliability and are designed to work under a wide range of environmental conditions. This high reliability feature of the CLP6 series makes them ideally suited to be used under illumination application conditions. Possible applications include channel letter or general backlighting and illumination applications. The flat top emitting surface allows for the CLP6 LEDs to be combined easily with light pipes.

Industry standard PLCC6 package
Size: 6.0 x 5.0mm
Viewing angle: 120°

Visible Light LEDs, Cree Inc

Specifications
Attribute Value
LED Colours RGB
Package Type PLCC 6
Mounting Type Surface Mount
Number of LEDs 3
Forward Voltage 2 V, 3.2 V
Luminous Intensity 280 → 560 mcd, 560 → 1120 mcd, 1120 → 2240 mcd
Number of Pins 6
Viewing Angle 120 °
Lens Shape Round
Dominant Wavelength 540 nm
Lens Colour Clear
360 In Global stock for delivery within 4 - 8 working days
Price Each (In a Pack of 20)
PHP 24.47
(exc. VAT)
PHP 27.41
(inc. VAT)
units
Per Unit
Per Pack*
20 - 20
PHP24.47
PHP489.40
40 - 80
PHP22.503
PHP450.06
100 - 180
PHP22.474
PHP449.48
200 - 380
PHP22.445
PHP448.90
400 +
PHP20.363
PHP407.26
*price indicative
