Startech 8 Port VGA KVM Switch

  • RS Stock No. 898-8387
  • Mfr. Part No. SV831DUSBGB
  • Manufacturer Startech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

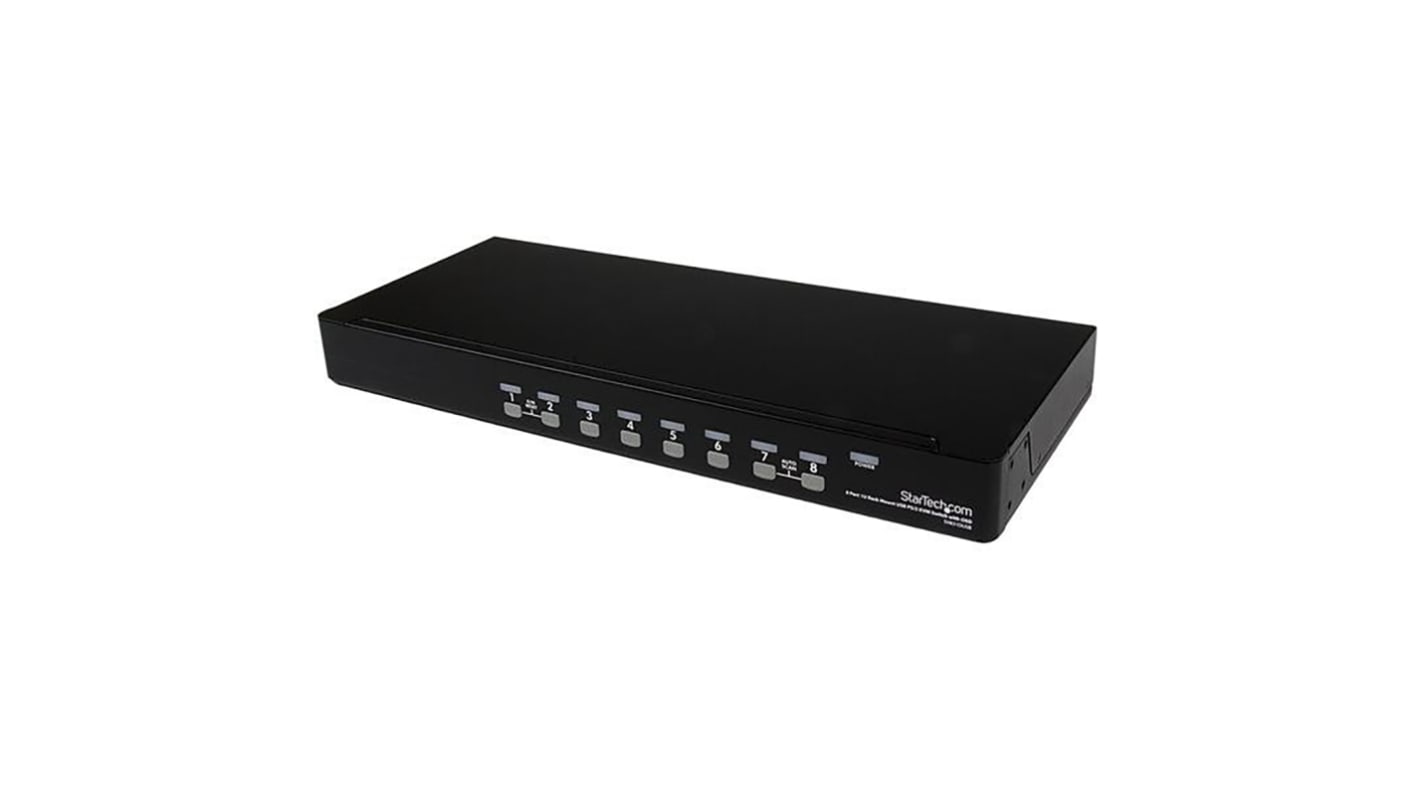

SV831DUSBGB VGA KVM Switch

The SV831DUSBGB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support.

Features & Benefits

Connect USB and PS/2 based computer systems OS independent – No software or drivers required Auto-scan function cycles through computers sequentially Cascade configuration expands system capability Front panel push-buttons and Hot-key functions allow for easy switching On Screen Display (OSD) supports naming connected computers USB & PS2 console interfaces for keyboard and mouse OSD security option allows selected PCs to be password protected from unauthorized use Rugged, all-metal 1U chassis for use in harsh environments and space-saving cabinets Cascade configuration adds scalability and offers support for control of up to 56 computers Rugged, solid steel rack-mountable case offers durability even in harsh environments Absolutely no software or drivers required providing a completely OS independent KVM solution

Applications

Add single console administration to your Co-location/ISP facility saving you time and money Create a scalable, streamlined access solution in your Datacentre or Server Farm Perfect for manufacturing line computer control, simplifying access to multiple systems Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice

Whats in the package?

StarView 8 Port KVM Switch Mounting Brackets(16/8 port only) PS/2 keyboard and mouse Y cable (16/8 port only) EU Power Adapter UK Power Adapter Foot pads User Manual

Specifications
Attribute Value
Number of Ports 8
Number of Displays Supported 1
Number of Video Outputs 1
Video Connection Type VGA
Keyboard/Mouse Connection Type USB
Audio Connection Type No Audio
Dimensions 438 x 180 x 45mm
Maximum Resolution 1920 x 1440
Depth 180mm
Height 45mm
Width 438mm
Temporarily out of stock - back order for despatch 02/04/2020, delivery within 5 working days from desptach date
Price Each
PHP 23,605.05
(exc. VAT)
PHP 26,437.66
(inc. VAT)
units
Per Unit
1 +
PHP23,605.05
